Angle, Linear Position Measuring
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLV493DA1B6HTSA2SENSOR ROTARY 360DEG SMD |
19,244 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | I2C | - | External Magnet, Not Included | - | - | - | 2.7V ~ 3.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-TSOP-6-6-5 |
|
TLE5501E0001XUMA1SENSOR ROTARY 360DEG 8DSOP |
5,799 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | PG-DSO-8-16 |
|
|
TLE5009E1000FUMA1SENSOR ANGLE 360DEG SMD |
5,908 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | PG-DSO-8 |
|
|
TLE5501E0002XUMA1IC TMR ANGLE SENSOR 8-SOIC |
628 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TA) | Automotive | AEC-Q100 | PG-DSO-8-16 |
|
|
TLI5012BE1000XUMA1SENSOR ANGLE 360DEG SMD |
7,625 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Wheatstone Bridge | - | External Magnet, Not Included | - | - | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-DSO-8 |
|
IPS2550DE1RAUTOMOTIVE-QUALIFIED HIGH-SPEED |
6,029 |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | - | Angle, Linear, Rotary | Inductive | 0° ~ 360° | - | Analog Voltage | Cosine, Sine | Inductive Target | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 160°C | Automotive | AEC-Q100 | 16-TSSOP-EP |
|
55300-00-02-ASENSOR ROTARY 360DEG WIRE LEADS |
374 |
|
Datasheet | Rectangular, Wire Leads | - | Box | Active | - | Rotary Position | Hall Effect | 0° ~ 360° | - | Analog Voltage | Clockwise Increase | External Magnet, Included | - | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -40°C ~ 105°C | - | - | - |
|
|
TLE5009E1010FUMA1SPEED SENSORS 8DSO |
5,187 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | PG-DSO-8 |
|
|
ADA4571BRZ-R7SENSOR ANGLE 180DEG SMD |
184 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 180° (±90°), Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 2.7V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 125°C | - | - | 8-SOIC |
|
|
TLE5012BE1000XUMA1SENSOR ANGLE 360DEG SMD |
64,048 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Wheatstone Bridge | - | External Magnet, Not Included | - | - | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | Automotive | AEC-Q100 | PG-DSO-8 |
|
|
TLE5012BE3005XUMA1SPEED SENSORS 8DSO |
11,775 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | SENT, SPI | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | PG-DSO-8 |
|
|
TLE5012BE5000XUMA1SPEED SENSORS 8DSO |
4,671 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Wheatstone Bridge | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | PG-DSO-8 |
|
TLE5009A16DE1210XUMA1SENSOR ANGLE 360DEG SMD |
7,113 |
|
Datasheet | 16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | Analog Voltage | Cosine, Sine | External Magnet, Not Included | - | - | - | 3V ~ 3.6V | Surface Mount | Gull Wing | -40°C ~ 125°C | Automotive | AEC-Q100 | PG-TDSO-16 |
|
|
TLE5012BDE1200XUMA1SPEED SENSORS 16TDSO |
4,309 |
|
Datasheet | 16-TSSOP (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | - | Angle | Magnetoresistive | 0° ~ 360°, Continuous | - | SENT, SPI | Cosine, Sine | External Magnet, Not Included | - | - | - | - | Surface Mount | Gull Wing | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | PG-TDSO-16 |
|
IPS2200BI1RHIGH-SPEED INDUCTIVE POSITION SE |
2,736 |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | Linear, Rotary Position | Inductive | 0° ~ 360°, Continuous | - | Analog | Cosine, Sine | Inductive Target | - | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | Surface Mount | SMD (SMT) Tab | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | 16-TSSOP |
|
|
ECS78RBA102SFERNICE TRANSDUCERS |
34 |
|
Datasheet | Module, Round Shaft | - | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Round Shaft | ±1% | 1 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|

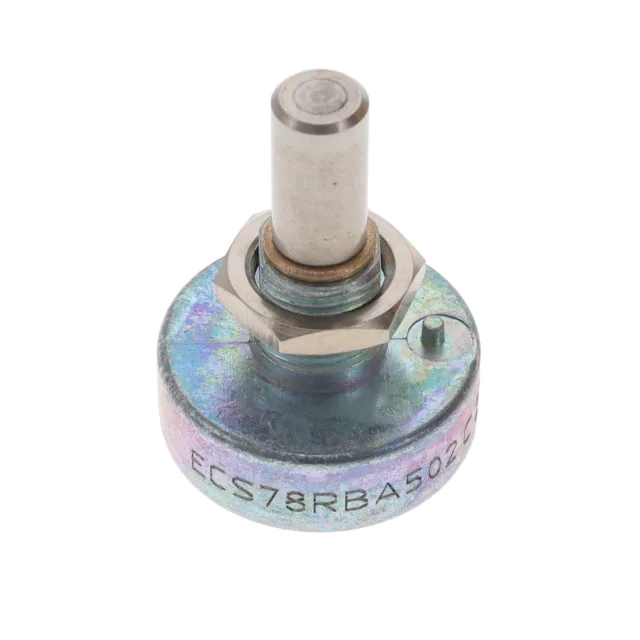

ECS78RBA502SFERNICE TRANSDUCERS |
42 |
|
Datasheet | Module, Round Shaft | ECS | Bulk | Active | - | Rotary Position | Resistive | 0° ~ 360°, Continuous | - | Resistive | Clockwise Increase | Shaft | ±2% | 5 kOhms | ±20% | - | Panel Mount | Solder Turret | -55°C ~ 125°C | - | - | - |
|
981HE0B4WA1F16SENSOR ROTARY 360DEG WIRE LEADS |
63 |
|
Datasheet | Module, Flatted Shaft | - | Bulk | Active | - | Rotary Position | Hall Effect | 0° ~ 360°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 4.5V ~ 5.5V | Chassis Mount | Wire Leads | -45°C ~ 125°C | - | - | - |
|
|
LX34070-H/STHIGH SPEED INDUCTIVE POSITION SE |
3,282 |
|
- |
14-TSSOP (0.173", 4.40mm Width) | - | Tube | Active | - | - | Inductive | - | - | - | Cosine, Sine | Inductive Target | - | - | - | 4.5V ~ 5.5V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
|
LX34050QPW-TRLX34050QPW HIGH SPEED INDUCTIVE |
2,109 |
|
- |
14-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | - | Inductive | - | - | - | Cosine, Sine | Inductive Target | - | - | - | 4V ~ 6V | Surface Mount | Gull Wing | -40°C ~ 150°C | - | - | 14-TSSOP |
