Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG477M400AS6AACAP ALUM SNAP-IN 105C |
1,000 |
|
Datasheet | ELG | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.75 A @ 120 Hz | 2.5375 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ALA7DA271CD500CAP ALUM 270UF 20% 500V SNAP TH |
480 |
|
Datasheet | ALA7D | Bulk | Active | 270 µF | ±20% | 500 V | 916.4mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.27 A @ 100 Hz | 5.2 A @ 10 kHz | 189.4 mOhms | - | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PEH532VCE3330M2CAP ALUM SNAP-IN 105C |
1,190 |
|
Datasheet | PEH532 | Box | Active | 330 µF | ±20% | 400 V | 340mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 100 Hz | 3.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
PHA227HKP4360ME4CAP ALU HYBRID AXIAL 25V 3,600F |
528 |
|
Datasheet | PHA227 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
PHA223HKP4360ME4CAP ALU HYBRID AXIAL 25V 3,600F |
528 |
|
Datasheet | PHA223 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALF80C912DD063CAP ALUM 9100UF 20% 63V PRESS |
1,055 |
|
Datasheet | ALF80 | Bulk | Active | 9100 µF | ±20% | 63 V | 44.15mOhm @ 100Hz | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 6.68 A @ 100 Hz | 8.96 A @ 10 kHz | 34 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole, Press-Fit | |
|
|
PHA227HLL4370ME4CAP ALU HYBRID AXIAL 25V 3,700F |
430 |
|
Datasheet | PHA227 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
ALP20A101BB400CAP ALUM 100UF 400V SOLDER LUG |
473 |
|
Datasheet | ALP20 | Box | Active | 100 µF | -10%, +30% | 400 V | - | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.591" (15.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
PEV227HKP4460ME4CAP ALUM 4600UF 20% 25V SMD |
200 |
|
Datasheet | PEV227 | Tray | Active | 4600 µF | ±20% | 25 V | 35mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.755 A @ 100 Hz | 20.072 A @ 100 kHz | - | - | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 1.496" (38.00mm) | 1.024" L x 1.024" W (26.00mm x 26.00mm) | Surface Mount | |
|
|
PEV227KKL4150ME4CAP ALUM 1500UF 20% 40V SMD |
200 |
|
Datasheet | PEV227 | Tray | Active | 1500 µF | ±20% | 40 V | 67mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 5.88 A @ 100 Hz | 17.472 A @ 100 kHz | - | - | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 1.181" (30.00mm) | 1.024" L x 1.024" W (26.00mm x 26.00mm) | Surface Mount | |
|
PEV227KLP4300QE4CAP ALUM 3000UF 40V SMD |
194 |
|
Datasheet | PEV227 | Tray | Active | 3000 µF | -10%, +30% | 40 V | 35mOhm @ 100Hz | 8400 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 7.42 A @ 100 Hz | 22.048 A @ 100 kHz | - | - | 0.748" L x 0.748" W (19.00mm x 19.00mm) | 1.496" (38.00mm) | 1.102" L x 1.102" W (28.00mm x 28.00mm) | Surface Mount | |
|
|
ALC70A331CD400CAP ALUM SNAP-IN 85C |
1,120 |
|
Datasheet | ALC70 | Box | Active | 330 µF | ±20% | 400 V | 411mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 100 Hz | 4.64 A @ 10 kHz | 214 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
|
ALC70F331CD400CAP ALUM 400V POLAR |
1,118 |
|
Datasheet | ALC70 | Bulk | Active | 330 µF | ±20% | 400 V | 411mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.81 A @ 100 Hz | 4.64 A @ 10 kHz | 214 mOhms | 0.394" (10.00mm) | 1.181" Dia x 1.654" L (30.00mm x 42.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
TVA1510CAP ALUM 30UF 250V AXIAL TH |
270 |
|
Datasheet | TVA ATOM® | Bulk | Active | 30 µF | - | 250 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.625" Dia x 1.500" W (15.87mm x 38.10mm) | - | - | Through Hole | |
|
|
ELG337M450AS6AACAP ALUM SNAP-IN 105C |
370 |
|
Datasheet | ELG | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.03 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEV227KKP4220ME4CAP ALUM 2200UF 20% 40V SMD |
200 |
|
Datasheet | PEV227 | Tray | Active | 2200 µF | ±20% | 40 V | 47mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.65 A @ 100 Hz | 19.76 A @ 100 kHz | - | - | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 1.496" (38.00mm) | 1.024" L x 1.024" W (26.00mm x 26.00mm) | Surface Mount | |
|
|
PHA223HLL4370ME4CAP ALU HYBRID AXIAL 25V 3,700F |
430 |
|
Datasheet | PHA223 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
ELG228M160AT5AACAP ALUM SNAP-IN 105C |
380 |
|
Datasheet | ELG | Bulk | Active | 2.2 mF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALF70C331DC450CAP ALUM 330UF 20% 450V PRESS |
1,058 |
|
Datasheet | ALF70 | Bulk | Active | 330 µF | ±20% | 450 V | 426.8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole, Press-Fit | |
|

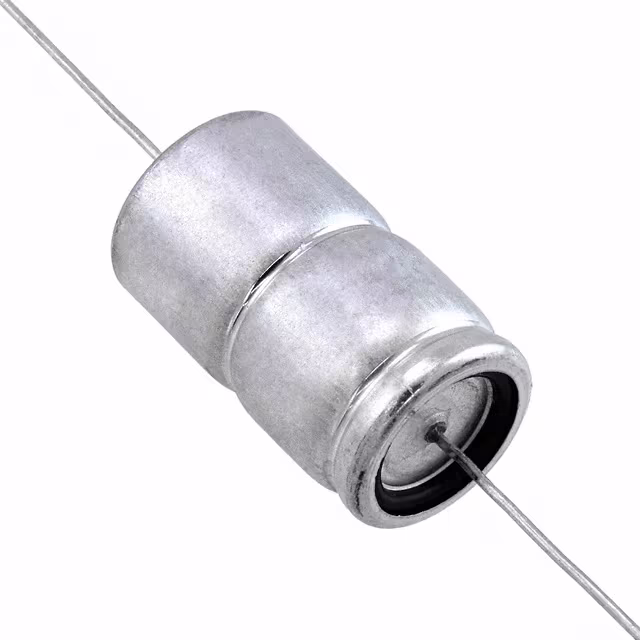

PEG226HJ4330QE1CAP ALUM 3300UF 25V AXIAL TH |
925 |
|
Datasheet | PEG226 | Bulk | Active | 3300 µF | -10%, +30% | 25 V | 34mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 3.115 A @ 100 Hz | - | - | - | 0.787" Dia x 1.457" L (20.00mm x 37.00mm) | - | - | Through Hole |
