Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV477M6R3A9MAACAP ALUM 470UF 20% 6.3V SMD |
7,000 |
|
Datasheet | EEV | Tape & Reel (TR) | Active | 470 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
ESZ336M200AH4EACAP ALUM RAD 105C |
6,980 |
|
Datasheet | ESZ | Cut Tape (CT) | Active | 33 µF | ±20% | 200 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 520 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EEV108M010A9PAACAP ALUM 1000UF 20% 10V SMD |
13,900 |
|
Datasheet | EEV | Tape & Reel (TR) | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 80 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
ESK108M050AL4AACAP ALUM RAD 85C |
10,320 |
|
Datasheet | ESK | Bulk | Active | 1 mF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.265 A @ 10 kHz | - | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EXV687M016S9PAACAP ALUM 680UF 20% 16V SMD |
6,000 |
|
Datasheet | EXV | Tape & Reel (TR) | Active | 680 µF | ±20% | 16 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EXV337M035S9PAACAP ALUM 330UF 20% 35V SMD |
2,941 |
|
Datasheet | EXV | Tape & Reel (TR) | Active | 330 µF | ±20% | 35 V | 120mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | 120 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EEV227M050S9PAACAP ALUM 220UF 20% 50V SMD |
6,974 |
|
Datasheet | EEV | Tape & Reel (TR) | Active | 220 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 350 mA @ 120 Hz | 500 mA @ 100 kHz | 300 mOhms | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
|
EXV337M016A9MAACAP ALUM 330UF 20% 16V SMD |
11,000 |
|
Datasheet | EXV | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | 160mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 600 mA @ 100 kHz | 160 mOhms | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
|
ESL687M063AK3AACAP ALUM RAD 105C |
3,814 |
|
Datasheet | ESL | Bulk | Active | 680 µF | ±20% | 63 V | 36mOhm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.125 A @ 120 Hz | 2.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EST687M035AH6AACAP ALUM 680UF 20% 35V RADIAL TH |
4,000 |
|
Datasheet | EST | Bulk | Active | 680 µF | ±20% | 35 V | 44mOhm @ 100kHz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.146 A @ 120 Hz | 1.91 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
ESH108M063AM2AACAP ALUM 1000UF 20% 63V RADIAL |
2,375 |
|
Datasheet | ESH | Bulk | Active | 1000 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.339" (34.00mm) | - | Through Hole | |
|
|
ESH336M400AM7AACAP ALUM RAD 105C |
2,000 |
|
Datasheet | ESH | Bulk | Active | 33 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 304 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ESH338M025AM2AACAP ALUM RAD 105C |
1,994 |
|
Datasheet | ESH | Bulk | Active | 3.3 mF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 1.6675 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.339" (34.00mm) | - | Through Hole | |
|
ESY687M035AL3AACAP ALUM 680UF 20% 35V RADIAL TH |
3,982 |
|
Datasheet | ESY | Bulk | Active | 680 µF | ±20% | 35 V | 21mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197" (5.00mm) | 0.512" Dia (13.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EDH475M450A9RAACAP ALUM 4.7UF 20% 450V SMD |
5,798 |
|
Datasheet | EDH | Tape & Reel (TR) | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 56.25 mA @ 10 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.504" L x 0.504" W (12.80mm x 12.80mm) | Surface Mount | |
|
ESU107M200AM7AACAP ALUM 100UF 20% 200V RADIAL |
3,988 |
|
Datasheet | ESU | Bulk | Active | 100 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 1.12 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ESZ107M200AM7AACAP ALUM RAD 105C |
1,887 |
|
Datasheet | ESZ | Bulk | Active | 100 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 1.12 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

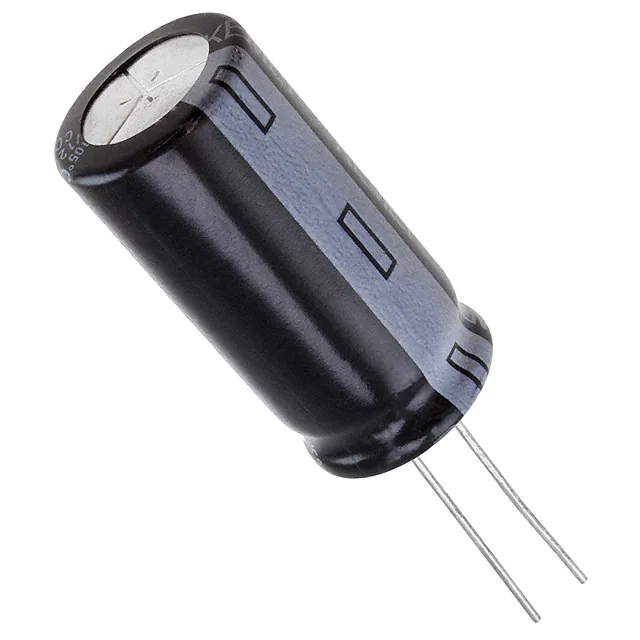

ESH228M050AN2AACAP ALUM 2200UF 20% 50V RADIAL |
1,500 |
|
Datasheet | ESH | Bulk | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.7595 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.496" (38.00mm) | - | Through Hole | |
|
|
ELG338M035AQ1AACAP ALUM SNAP-IN 105C |
1,200 |
|
Datasheet | ELG | Bulk | Active | 3.3 mF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 1.624 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
ESU476M400AM5AACAP ALUM RAD 105C |
1,964 |
|
Datasheet | ESU | Bulk | Active | 47 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 426 mA @ 120 Hz | 852 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole |
