Single Zener Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N4976US/TRDIODE ZENER 56V 5W E-MELF |
9,653 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 56 V | ±5% | 5 W | 35 Ohms | 2 µA @ 42.6 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4981US/TRDIODE ZENER 91V 5W E-MELF |
7,607 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 91 V | ±5% | 5 W | 90 Ohms | 2 µA @ 69.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4964US/TRDIODE ZENER 18V 5W E-MELF |
7,075 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 18 V | ±5% | 5 W | 4 Ohms | 5 µA @ 13.7 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4977US/TRDIODE ZENER 62V 5W E-MELF |
2,556 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 62 V | ±5% | 5 W | 42 Ohms | 2 µA @ 47.1 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4979US/TRDIODE ZENER 75V 5W E-MELF |
5,555 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 75 V | ±5% | 5 W | 55 Ohms | 2 µA @ 56 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4966US/TRDIODE ZENER 22V 5W E-MELF |
2,107 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 22 V | ±5% | 5 W | 5 Ohms | 2 µA @ 16.7 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4978US/TRDIODE ZENER 68V 5W E-MELF |
7,869 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 68 V | ±5% | 5 W | 50 Ohms | 2 µA @ 51.7 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
|
JAN1N4969US/TRDIODE ZENER 30V 5W E-MELF |
7,027 |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 30 V | ±5% | 5 W | 8 Ohms | 2 µA @ 22.8 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | Military | MIL-PRF-19500/356 | Surface Mount | E-MELF |
|
JANTX1N4972USDIODE ZENER 39V 5W D5B |
15 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 39 V | ±5% | 5 W | 14 Ohms | 2 µA @ 29.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
JANTX1N4576AUR-1/TRDIODE ZENER 3V 500MW DO213AA |
9,526 |
|
- |
- | DO-213AA | Tape & Reel (TR) | Active | 3 V | ±5% | 500 mW | 50 Ohms | 2 µA @ 3 V | - | -65°C ~ 175°C | Military | MIL-PRF-19500/452 | Surface Mount | DO-213AA |
|
1N4977USDIODE ZENER 62V 5W AXIAL |
8,551 |
|
Datasheet | - | E, Axial | Bulk | Active | 62 V | ±5% | 5 W | 42 Ohms | 2 µA @ 47.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Through Hole | - |
|
|
1N4978USDIODE ZENER 68V 5W D5B |
4,176 |
|
Datasheet | - | SQ-MELF, E | Bulk | Discontinued at Digi-Key | 68 V | ±5% | 5 W | 50 Ohms | 2 µA @ 51.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|

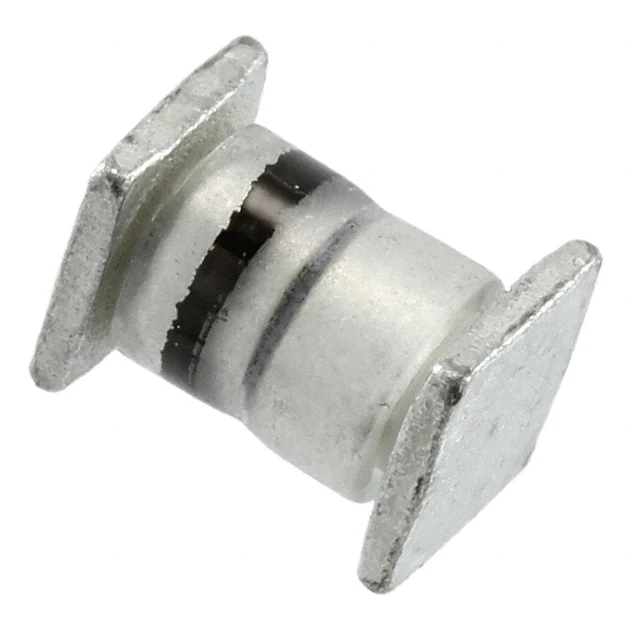

1N4979USDIODE ZENER 75V 5W D5B |
9,227 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 75 V | ±5% | 5 W | 55 Ohms | 2 µA @ 56 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
|
1N4980USDIODE ZENER 82V 5W D5B |
7,610 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 82 V | ±5% | 5 W | 80 Ohms | 2 µA @ 62.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
|
1N4981USDIODE ZENER 91V 5W D5B |
8,368 |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 91 V | ±5% | 5 W | 90 Ohms | 2 µA @ 69.2 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JANTX1N3827A-1DIODE ZENER 5.6V 1W DO41 |
9,010 |
|
- |
- | DO-204AL, DO-41, Axial | Bulk | Active | 5.6 V | ±5% | 1 W | 5 Ohms | 3 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C (TA) | Military | MIL-PRF-19500/115 | Through Hole | DO-41 |
|
1N4471DIODE ZENER 18V 1.5W DO204AL |
9,949 |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | 18 V | ±5% | 1.5 W | 11 Ohms | 50 nA @ 14.4 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
1N4975US/TRDIODE ZENER 51V 5W D5B |
4,713 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 51 V | ±5% | 5 W | 27 Ohms | 2 µA @ 38.8 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
|
JAN1N4099C-1/TRDIODE ZENER 6.8V DO204AH |
7,720 |
|
- |
- | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Active | 6.8 V | ±2% | - | 200 Ohms | 1 µA @ 5.2 V | 1.1 V @ 200 mA | -65°C ~ 175°C | Military | MIL-PRF-19500/435 | Through Hole | DO-204AH (DO-35) |
|
|
1N4964US/TRDIODE ZENER 18V 5W D5B |
6,463 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | 18 V | ±5% | 5 W | 4 Ohms | 5 µA @ 13.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5B |
