Varistors, MOVs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package / Case | Series | Packaging | Product Status | Maximum AC Volts | Maximum DC Volts | Varistor Voltage (Min) | Varistor Voltage (Typ) | Varistor Voltage (Max) | Current - Surge | Energy | Number of Circuits | Capacitance @ Frequency | Operating Temperature | Features | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ERZ-C32CK471WVARISTOR 470V 25KA DISC 32MM |
9,007 |
|
Datasheet | Disc 32mm, Formed Tabs | ERZ-CK | Bulk | Active | 300 V | 385 V | 423 V | 470 V | 517 V | 25 kA | 405J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Chassis Mount |
|
ERZ-C20EK681YVARISTOR 680V 8KA MODULE |
2,188 |
|
Datasheet | Module | ZNR® | Bulk | Active | 420 V | 560 V | 612 V | 680 V | 748 V | 8 kA | 175J | 1 | 850 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | - | - | Chassis Mount |
|
|
ERZ-C32CK271WVARISTOR 270V 25KA DISC 32MM |
6,471 |
|
Datasheet | Disc 32mm, Formed Tabs | ERZ-CK | Bulk | Active | 175 V | 225 V | 247 V | 270 V | 303 V | 25 kA | 255J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Bolt Mount |
|

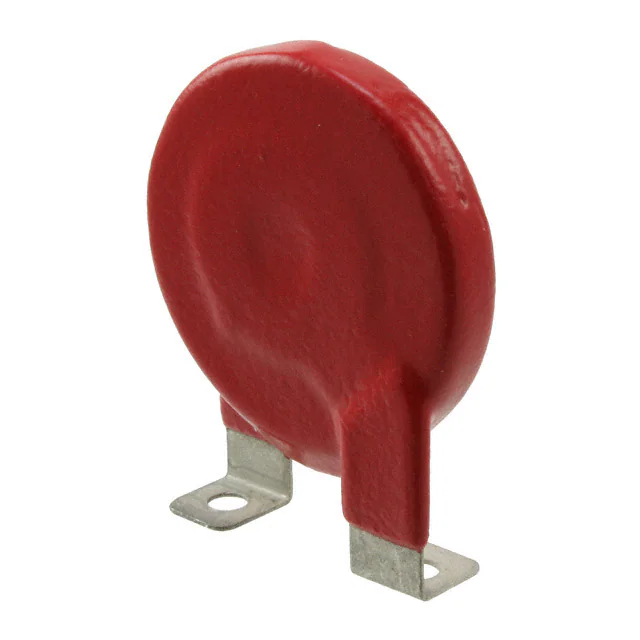

V102HA40VARISTOR 1KV 40KA DISC 40MM |
9,237 |
|
Datasheet | Disc 40mm, Formed Tabs | HA | Bulk | Active | 1 kV | 1.29 kV | 900 V | 1 kV | 1.1 kV | 40 kA | 1000J | 1 | 1200 pF @ 1 MHz | -55°C ~ 85°C (TA) | - | - | - | Through Hole |
|
|
ERZ-C32CK511WVARISTOR 510V 25KA DISC 32MM |
8,771 |
|
Datasheet | Disc 32mm, Formed Tabs | ERZ-CK | Bulk | Active | 320 V | 415 V | 459 V | 510 V | 561 V | 25 kA | 405J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Chassis Mount |
|
TMOV34S751MPX2696VARISTOR 1.2KV 40KA SQUARE 34MM |
6,148 |
|
- |
Square 34mm, Formed Tabs, 3-Lead | TMOV® 34S | Bulk | Active | 750 V | 970 V | 1.08 kV | 1.2 kV | 1.32 kV | 40 kA | 1200J | 1 | 1800 pF @ 1 MHz | -55°C ~ 85°C (TA) | Thermally Protected | - | - | Through Hole |
|
|
TMOV34S681MPX2696VARSTR 1.0875KV 40KA SQUARE 34MM |
2,424 |
|
- |
Square 34mm, Formed Tabs, 3-Lead | TMOV® 34S | Bulk | Active | 680 V | 890 V | 980 V | 1.0875 kV | 1.195 kV | 40 kA | 1100J | 1 | 2000 pF @ 1 MHz | -55°C ~ 85°C (TA) | Thermally Protected | - | - | Through Hole |
|
|
TMOV34S661MPX2696VARISTOR 1.05KV 40KA SQUARE 34MM |
7,677 |
|
- |
Square 34mm, Formed Tabs, 3-Lead | TMOV® 34S | Bulk | Active | 660 V | 850 V | 945 V | 1.05 kV | 1.155 kV | 40 kA | 1030J | 1 | 2000 pF @ 1 MHz | -55°C ~ 85°C (TA) | Thermally Protected | - | - | Through Hole |
|
|
ERZ-C32CK951WVARISTOR 950V 25KA DISC 32MM |
5,414 |
|
Datasheet | Disc 32mm, Formed Tabs | ERZ-CK | Bulk | Active | 575 V | 765 V | 855 V | 950 V | 1.045 kV | 25 kA | 600J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Bolt Mount |
|
|
ERZ-C32EK221YVARISTOR 220V 25KA MODULE |
9,425 |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ERZ-C32EK751VARISTOR 750V 25KA MODULE |
4,883 |
|
Datasheet | Module | ERZ-E | Bulk | Active | 460 V | 615 V | 675 V | 750 V | 825 V | 25 kA | 500J | 1 | 2000 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | - | - | Chassis Mount |
|
|
ERZ-C40CK271WVARISTOR 270V 30KA DISC 40MM |
2,143 |
|
Datasheet | Disc 40mm, Formed Tabs | ERZ-CK | Bulk | Active | 175 V | 225 V | 247 V | 270 V | 303 V | 30 kA | 340J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Bolt Mount |
|
|
ERZ-C40CK471WVARISTOR 470V 30KA DISC 40MM |
9,896 |
|
Datasheet | Disc 40mm, Formed Tabs | ERZ-CK | Bulk | Active | 300 V | 385 V | 423 V | 470 V | 517 V | 30 kA | 505J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Bolt Mount |
|
ERZ-C32EK391YVARISTOR 390V 25KA MODULE |
6,098 |
|
Datasheet | Module | ZNR® | Bulk | Active | 250 V | 320 V | 351 V | 390 V | 429 V | 25 kA | 350J | 1 | 3000 pF @ 1 kHz | -40°C ~ 85°C (TA) | - | - | - | Chassis Mount |
|
|
ERZ-C40CK511WVARISTOR 510V 30KA DISC 40MM |
7,244 |
|
Datasheet | Disc 40mm, Formed Tabs | ERZ-CK | Bulk | Active | 320 V | 415 V | 459 V | 510 V | 561 V | 30 kA | 505J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Bolt Mount |
|
|
ERZ-C40CK951WVARISTOR 950V 30KA DISC 40MM |
7,925 |
|
Datasheet | Disc 40mm, Formed Tabs | ERZ-CK | Bulk | Active | 575 V | 765 V | 855 V | 950 V | 1.045 kV | 30 kA | 750J | 1 | - | -40°C ~ 125°C (TA) | Thermally Protected | - | - | Bolt Mount |
|
ERZ-VS34C241VARISTOR 240V 40KA SQUARE 36MM |
7,894 |
|
Datasheet | Square 36mm, Formed Tabs | ZNR® | Bulk | Active | 150 V | 200 V | 216 V | 240 V | 264 V | 40 kA | - | 1 | - | - | - | - | - | Chassis Mount |
|
|
ERZ-VS34C271VARISTOR 270V 40KA SQUARE 36MM |
5,697 |
|
Datasheet | Square 36mm, Formed Tabs | ZNR® | Bulk | Active | 175 V | 225 V | 247 V | 270 V | 303 V | 40 kA | - | 1 | - | - | - | - | - | Chassis Mount |
|
|
ERZ-VS34C431VARISTOR 430V 40KA SQUARE 36MM |
2,803 |
|
Datasheet | Square 36mm, Formed Tabs | ZNR® | Bulk | Active | 275 V | 350 V | 387 V | 430 V | 473 V | 40 kA | - | 1 | - | - | - | - | - | Chassis Mount |
|
|
ERZ-VS34C511VARISTOR 510V 40KA SQUARE 36MM |
2,923 |
|
Datasheet | Square 36mm, Formed Tabs | ZNR® | Bulk | Active | 320 V | 415 V | 459 V | 510 V | 561 V | 40 kA | - | 1 | - | - | - | - | - | Chassis Mount |
