Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS53YL104MR10TRIMMER 100K OHM 0.25W GW TOP |
771 |
|
Datasheet | TS53 | Tape & Reel (TR) | Active | 100 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Square - 0.197" x 0.197" Face (5.00mm x 5.00mm) |
|
M64W202KB40TRIMMER 2K OHM 0.5W PC PIN TOP |
1,191 |
|
Datasheet | 64 | Bulk | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|

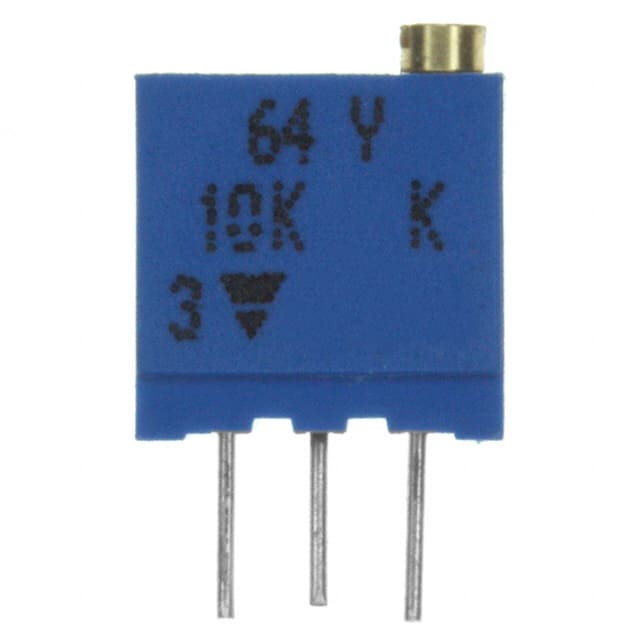

M64Y103KB40TRIMMER 10K OHM 0.5W PC PIN TOP |
957 |
|
Datasheet | 64 | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|

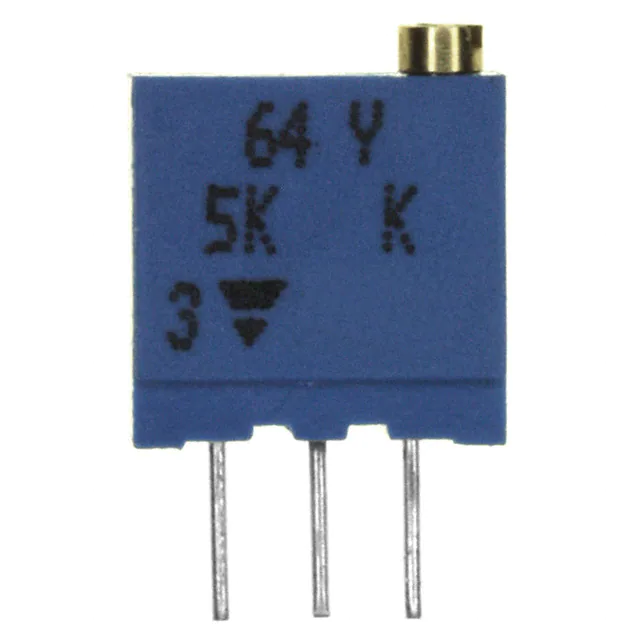

M64Y502KB40TRIMMER 5K OHM 0.5W PC PIN TOP |
401 |
|
Datasheet | 64 | Bulk | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
M64W503KB40TRIMMER 50K OHM 0.5W PC PIN TOP |
400 |
|
Datasheet | 64 | Bulk | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
|
M64W203KB40TRIMMER 20K OHM 0.5W PC PIN TOP |
364 |
|
Datasheet | 64 | Bulk | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.197" Face (9.70mm x 5.00mm) |
|
M64P104KB40TRIMMER 100KOHM 0.5W PC PIN SIDE |
200 |
|
Datasheet | 64 | Bulk | Active | 100 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 21.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.382" x 0.205" Face (9.70mm x 5.20mm) |
|
M43P103KB40TRIMMER 10KOHM 0.75W PC PIN SIDE |
4,319 |
|
Datasheet | 43 | Bulk | Active | 10 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
T63YB204KT20TRIMMER 200KOHM 0.25W PC PIN TOP |
772 |
|
Datasheet | T63 | Tube | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB104KT20TRIMMER 100KOHM 0.25W PC PIN TOP |
740 |
|
Datasheet | T63 | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB501KT20TRIMMER 500 OHM 0.25W PC PIN TOP |
445 |
|
Datasheet | T63 | Tube | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB103KT20TRIMMER 10K OHM 0.25W PC PIN TOP |
329 |
|
Datasheet | T63 | Tube | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|

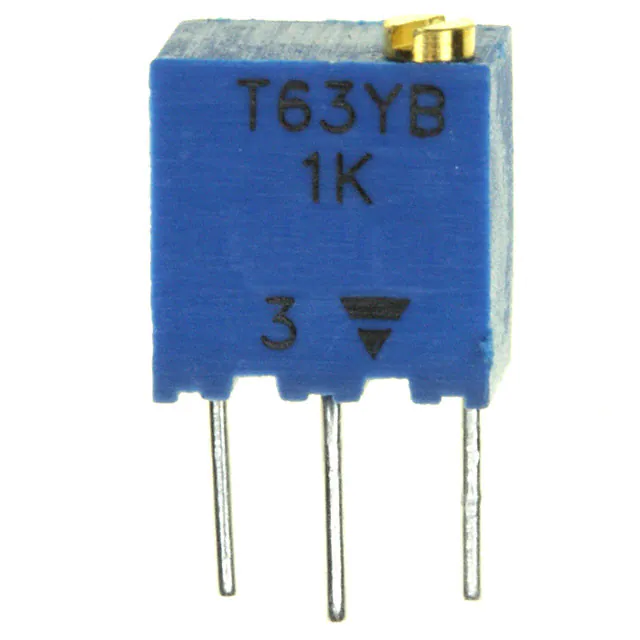

T63YB102KT20TRIMMER 1K OHM 0.25W PC PIN TOP |
298 |
|
Datasheet | T63 | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB203KT20TRIMMER 20K OHM 0.25W PC PIN TOP |
224 |
|
Datasheet | T63 | Tube | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
T63YB503KT20TRIMMER 50K OHM 0.25W PC PIN TOP |
167 |
|
Datasheet | T63 | Tube | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.268" x 0.197" Face (6.80mm x 5.00mm) |
|
TS63Y104KT20TRIMMER 100K OHM 0.25W GW TOP |
142 |
|
Datasheet | TS63 | Tube | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
T7YA472MT20TRIMMER 4.7K OHM 0.5W PC PIN TOP |
917 |
|
Datasheet | T7 | Tube | Active | 4.7 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA224MB40TRIMMER 220K OHM 0.5W PC PIN TOP |
383 |
|
Datasheet | T7 | Bulk | Active | 220 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|

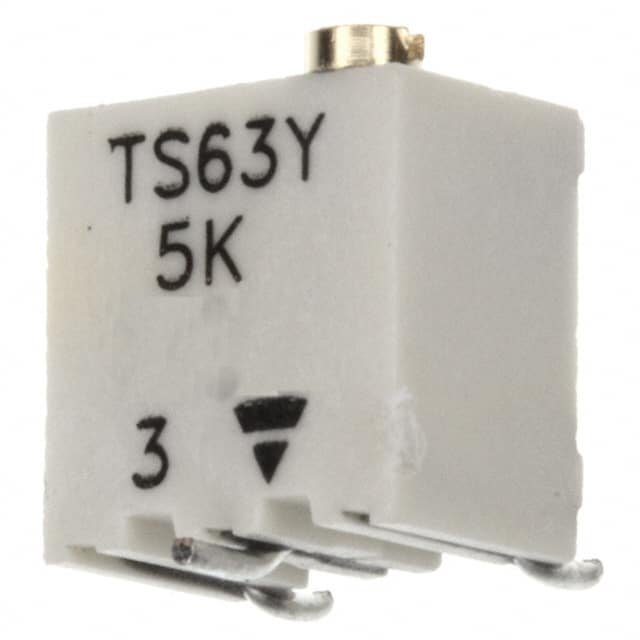

TS63Y502KR10TRIMMER 5K OHM 0.25W GW TOP ADJ |
7,138 |
|
Datasheet | TS63 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|

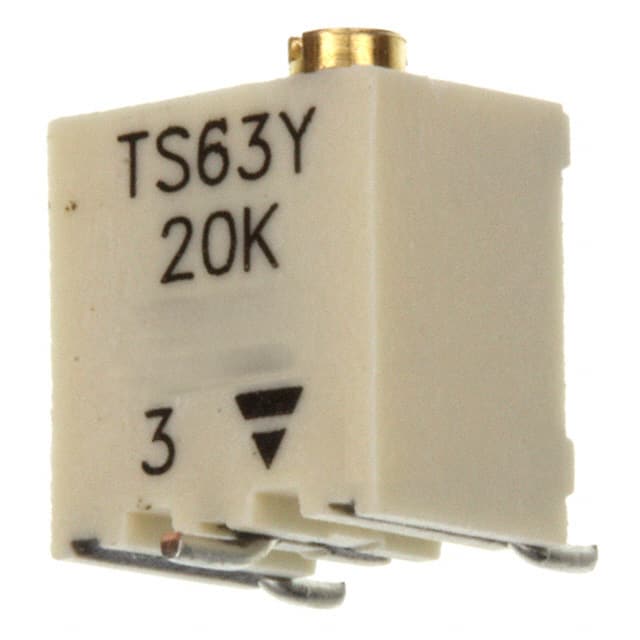

TS63Y203KR10TRIMMER 20K OHM 0.25W GW TOP ADJ |
2,244 |
|
Datasheet | TS63 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
