Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T7YA102MT20TRIMMER 1K OHM 0.5W PC PIN TOP |
208 |
|
Datasheet | T7 | Tube | Active | 1 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA105MT20TRIMMER 1M OHM 0.06W PC PIN TOP |
196 |
|
Datasheet | T7 | Tube | Active | 1 MOhms | 0.06W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YB103MB40TRIMMER 10K OHM 0.5W PC PIN TOP |
187 |
|
Datasheet | T7 | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA223MT20TRIMMER 22K OHM 0.5W PC PIN TOP |
167 |
|
Datasheet | T7 | Tube | Active | 22 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA221MB40TRIMMER 220 OHM 0.5W PC PIN TOP |
144 |
|
Datasheet | T7 | Box | Active | 220 Ohms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA103MT20TRIMMER 10K OHM 0.5W PC PIN TOP |
116 |
|
Datasheet | T7 | Tube | Active | 10 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|
T7YA103MB40TRIMMER 10K OHM 0.5W PC PIN TOP |
107 |
|
Datasheet | T7 | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Round - 0.276" Dia (7.00mm) |
|

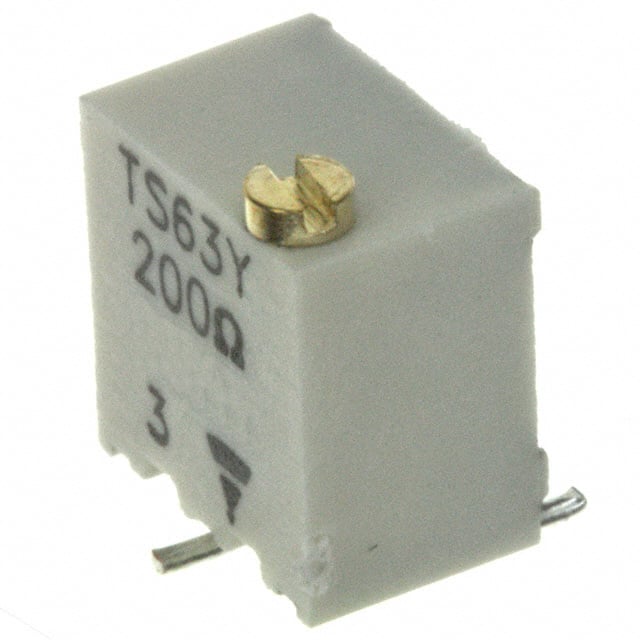

TS63Y201KR10TRIMMER 200 OHM 0.25W GW TOP ADJ |
1,612 |
|
Datasheet | TS63 | Tape & Reel (TR) | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y102KT20TRIMMER 1K OHM 0.25W GW TOP ADJ |
525 |
|
Datasheet | TS63 | Tube | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y503KT20TRIMMER 50K OHM 0.25W GW TOP ADJ |
414 |
|
Datasheet | TS63 | Tube | Active | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
TS63Y501KT20TRIMMER 500 OHM 0.25W GW TOP ADJ |
387 |
|
Datasheet | TS63 | Tube | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
|
TS63Y101KT20TRIMMER 100 OHM 0.25W GW TOP ADJ |
239 |
|
Datasheet | TS63 | Tube | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 15.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.270" x 0.197" Face (6.85mm x 5.00mm) |
|
M43P201KB40TRIMMER 200OHM 0.75W PC PIN SIDE |
772 |
|
Datasheet | 43 | Box | Active | 200 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
|
M43P205KB40TRIMMER 2M OHM 0.08W PC PIN SIDE |
467 |
|
Datasheet | 43 | Box | Active | 2 MOhms | 0.08W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|

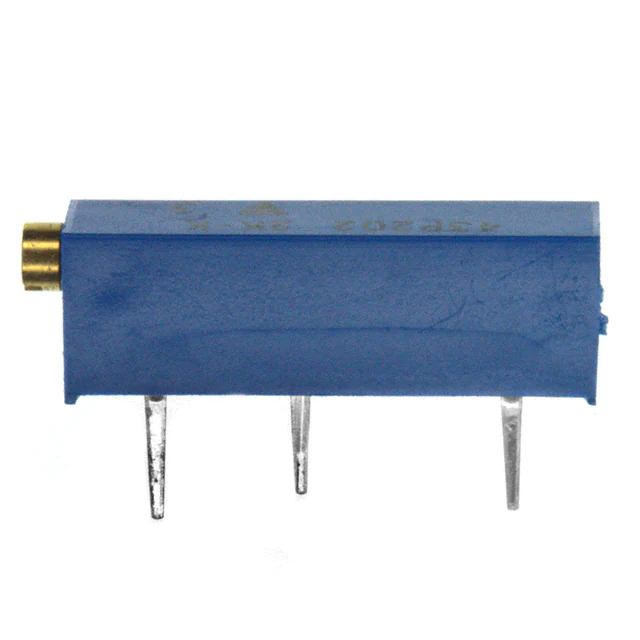

M43P202KB40TRIMMER 2K OHM 0.75W PC PIN SIDE |
448 |
|
Datasheet | 43 | Bulk | Active | 2 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
M43P504KB40TRIMMER 500K OHM 0.32W PC PIN |
377 |
|
Datasheet | 43 | Box | Active | 500 kOhms | 0.32W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
M43P102KB40TRIMMER 1K OHM 0.75W PC PIN SIDE |
234 |
|
Datasheet | 43 | Bulk | Active | 1 kOhms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
M43P501KB40TRIMMER 500OHM 0.75W PC PIN SIDE |
224 |
|
Datasheet | 43 | Box | Active | 500 Ohms | 0.75W, 3/4W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.252" x 0.189" Face (6.40mm x 4.80mm) |
|
M63M105KB30T607TRIMMER 1M OHM 0.5W PC PIN SIDE |
339 |
|
Datasheet | 63 | Box | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
|
|
M63X502KB40TRIMMER 5K OHM 0.5W PC PIN SIDE |
149 |
|
Datasheet | 63 | Box | Active | 5 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.395" x 0.395" Face (10.03mm x 10.03mm) |
