TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMA6T18AYTVS DIODE 15.3VWM 32.3VC SMA |
4,236 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 32.3V | 123A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMCJ45CATVS DIODE 45VWM 72.7VC DO214AB |
3,545 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE6V8CATVS DIODE 5.8VWM 13.4VC DO201 |
3,325 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 5.8V | 6.45V | 13.4V | 746A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 4750pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
1.5KE13CATVS D5.4X7.5 11.1V 1500W BIDIR |
3,098 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 11.1V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SZ1SMB60CAT3GTVS DIODE 60VWM 96.8VC SMB |
3,058 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | - | 150pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
1KSMB12CATVS DIODE 10.2VWM 16.7VC DO214AA |
2,720 |
|
Datasheet | DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 59.9A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMCJ13CATVS DIODE 13VWM 21.5VC DO214AB |
2,480 |
|
Datasheet | DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 69.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5KE350CATVS D5.4X7.5 300V 1500W BIDIR |
9,411 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 300V | 332V | 482V | 3.1A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SM6T42CAYTVS DIODE 36VWM 58.1VC SMB |
8,958 |
|
Datasheet | DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMCJ5.0A-13-FTVS DIODE 5VWM 9.2VC SMC |
8,027 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SC1004U-ULC-04UTGTVS DIODE ARRAY 4CH 1004DFN |
4,440 |
|
Datasheet | 10-UFDFN | SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 7V (Max) | 7.5V | 11V (Typ) | 2A (8/20µs) | - | No | HDMI, USB | 0.2pF @ 3GHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-µDFN (2.5x1) |
|
TPSMC43CATVS DIODE 36.8VWM 59.3VC DO214AB |
4,069 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 25.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE11CATVS D5.4X7.5 9.4V 1500W BIDIR |
2,962 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 9.4V | 10.5V | 15.6V | 96A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|

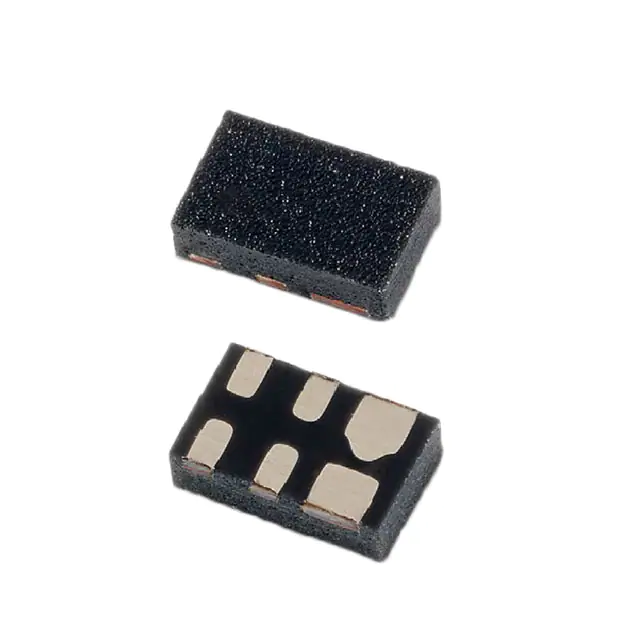

SP3401-02UTGTVS DIODE 3.3VWM 9VC 6UDFN |
1,828 |
|
Datasheet | 6-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 6.5V | 9V | 10A (8/20µs) | - | No | Ethernet, USB 3.1 | 0.8pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 6-µDFN (1.6x1) |
|
SZNSP4201MR6T1GTVS DIODE 5VWM 12VC 6TSOP |
9,093 |
|
Datasheet | SOT-23-6 Thin, TSOT-23-6 | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 12V | - | 500W | No | USB | 3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 6-TSOP |
|
|
TPSMC36CATVS DIODE 30.8VWM 49.9VC DO214AB |
6,854 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
SM15T36CATVS DIODE 30.8VWM 64.3VC SMC |
4,819 |
|
Datasheet | DO-214AB, SMC | SM15T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 64.3V | 156A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
TP1.5KE36CATVS DIODE 30.8VWM 49.9VC DO201 |
3,820 |
|
Datasheet | DO-201AA, DO-27, Axial | TP1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Through Hole | DO-201 |
|
|
1.5KE13ATVS D5.4X7.5 11.1V 1500W UNIDIR |
2,175 |
|
Datasheet | DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
1.5KE68ATVS DIODE 58.1VWM 121VC DO201 |
1,642 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 58.1V | 64.6V | 121V | 83A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 1550pF @ 1MHz | - | - | - | Through Hole | DO-201 |
