TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
SMCJ400CAE3/TR13TVS DIODE 400VWM DO214AB |
2,460 |
|
- |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 400V | - | - | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ400CE3/TR13TVS DIODE 400VWM DO214AB |
4,281 |
|
- |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 400V | - | - | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ440CAE3/TR13TVS DIODE 440VWM DO214AB |
4,027 |
|
- |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | - | - | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ440CE3/TR13TVS DIODE 440VWM DO214AB |
5,294 |
|
- |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | - | - | - | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
 2 Leads.jpg)
|
STRVS185X02BTVS DIODE 128VWM 185VC SMB |
4,389 |
|
Datasheet | DO-214AA, SMB | STRVS | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 128V | 143V | 185V | 2A (8/20µs) | - | No | MOSFET Protection | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
5.0SMDJ100A-T7TVS DIODE 100VWM 162VC DO214AB |
3,527 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 30.9A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ110A-T7TVS DIODE 110VWM 177VC DO214AB |
8,211 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 110V | 122V | 177V | 28.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ130A-T7TVS DIODE 130VWM 209VC DO214AB |
4,472 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 24A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ160A-T7TVS DIODE 160VWM 259VC DO214AB |
3,729 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 19.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP6001-06UTG-1TVS DIODE 6VWM 12UDFN |
2,695 |
|
Datasheet | 12-UFDFN Exposed Pad | SP6001, SPA® | Tape & Reel (TR) | Obsolete | Zener | - | 6 | 6V (Max) | 7V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UDFN (2.5x1.35) |
|
SM4T7V6AYTVS DIODE 6.5VWM 14.5VC SMA |
3,132 |
|
Datasheet | DO-214AC, SMA | SM4TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.2V | 14.5V | 160A (8/20µs) | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
TPD13S523RSVRTVS DIODE 5.5VWM 15VC 16UQFN |
8,472 |
|
Datasheet | 16-UFQFN | - | Tape & Reel (TR) | Active | Zener | 13 | - | 5.5V (Max) | 6V | 15V | 3A (8/20µs) | 30W | No | General Purpose | - | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
MSMBJ15CATVS DIODE 15VWM 24.4VC SMBJ |
7,641 |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | - | 1 | 15V | 16.7V | 24.4V | 24A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|
1.5KE24ATVS DIODE 20.5VWM 42.8VC DO201 |
2,574 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | 1 | - | 20.5V | 22.8V | 42.8V | 234A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 3500pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
|
SMA6J100CA-TRTVS DIODE 100VWM 172VC SMA |
4,251 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 100V | 111V | 172V | 19A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
IP4280CZ10,118TVS DIODE 5.5VWM 8VC 10TSSOP |
2,911 |
|
Datasheet | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 8V (Typ) | - | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TSSOP |
|

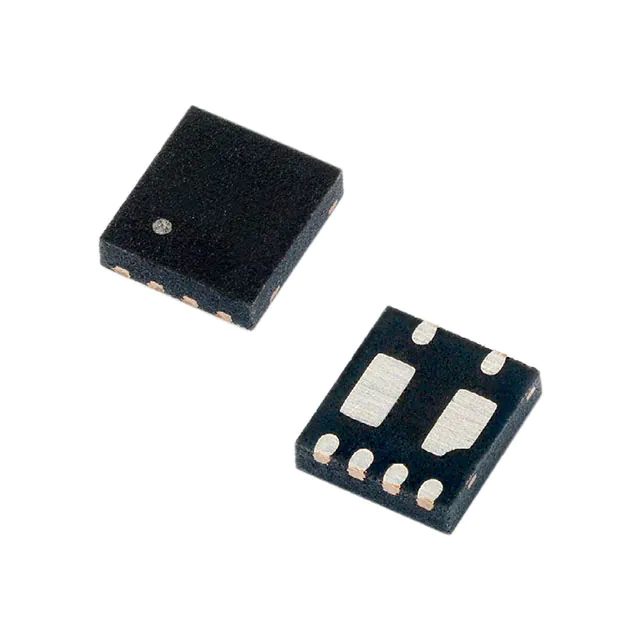

SP1555-01UTGTVS DIODE 15VWM 29.5VC 6UDFN |
9,957 |
|
Datasheet | 6-UFDFN Exposed Pad | SP1555, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 15V | 17.5V | 29.5V (Typ) | 120A (8/20µs) | - | No | General Purpose | 800pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-µDFN (1.8x2) |
|
ESDA14V2-4BF2TVS DIODE 12VWM 5FLIPCHIP |
8,773 |
|
Datasheet | 5-WFBGA, FCBGA | ESDA, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 12V | 14.2V | - | - | 50W | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 5-FlipChip (1.12x1.12) |
|
SMCJ64CA-13-FTVS DIODE 64VWM 103VC SMC |
6,048 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
IP4284CZ10-TBRTVS DIODE 5.5VWM 9.5VC 10XSON |
3,584 |
|
Datasheet | 10-XFDFN | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 9.5V (Typ) | - | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (2.5x1) |
