TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
SMA6F26AYTVS DIODE 26VWM 42.1VC SMAFLAT |
6,935 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 26V | 28.9V | 42.1V | 14.9A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAflat |
|
|
SMA6F5.0AYTVS DIODE 5VWM 9.2VC SMAFLAT |
2,402 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | 68A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAflat |
|
|
SMA6F85AYTVS DIODE 85VWM 137VC SMAFLAT |
5,206 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 85V (Max) | 95V | 137V | 4.6A | 600W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAflat |
|
SMDJ180CATVS DIODE 180VWM 292VC DO214AB |
6,776 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 180V | 200V | 291.6V | 10.29A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE33A-TTVS DIODE 28.2VWM 45.7VC DO201 |
8,524 |
|
Datasheet | DO-201AA, DO-27, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 33A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
BZW04-33TVS DO15 33.3V 400W UNIDIR |
6,544 |
|
Datasheet | DO-204AC, DO-15, Axial | BZW04, TRANSIL™ | Cut Tape (CT) | Obsolete | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 7.4A | 400W | No | General Purpose | 450pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
|
RSB16X3NTRTVS DIODE 12VWM UMD6 |
8,169 |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 3 | 12V | 14.4V | - | - | - | No | General Purpose | 30pF @ 1MHz | - | - | - | Surface Mount | UMD6 |
|
RSB27K2TLTVS DIODE 24VWM UMD4 |
6,700 |
|
Datasheet | SC-82A, SOT-343 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 2 | 24V | 26.2V | - | - | - | No | General Purpose | 30pF @ 1MHz | - | - | - | Surface Mount | UMD4 |
|
PGB2010201KRTVS DIODE 12VWM 55VC 0201 |
6,992 |
|
Datasheet | 0201 (0603 Metric) | PulseGuard® PGB2 0201 | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12V (Max) | - | 55V (Typ) | - | - | No | HDMI, USB | - | -65°C ~ 125°C | - | - | Surface Mount | 0201 |
|
SM30T200CAYDISCRETE |
7,539 |
|
- |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 170V (Max) | 190V | 275V | 11A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SM30T75CAYDISCRETE |
3,855 |
|
- |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 64V (Max) | 71.3V | 103V | 29.1A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SM30T180CAYDISCRETE |
2,658 |
|
- |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 154V (Max) | 171V | 246V | 12A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SM30T152CAYDISCRETE |
7,725 |
|
- |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 130V (Max) | 144V | 209V | 14A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SM30T117CAYDISCRETE |
4,651 |
|
- |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 100V (Max) | 111V | 162V | 19A | 3000W (3kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
MR2520LGTVS DIODE 23VWM MICRODE BUTTON |
2,896 |
|
- |
Button, Axial | - | Bulk | Obsolete | Zener | 1 | - | 23V (Max) | 24V | - | - | 2500W (2.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Microde Button |
|
|
CM1291-4104YTTVS DIODE |
7,799 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
P4KE200CATVS DO15 171V 400W BIDIR |
69 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 171V | 190V | 274V | 1.5A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
|
P4KE180CATVS DO15 154V 400W BIDIR |
58 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | - | 1 | 154V | 171V | 246V | 1.7A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|

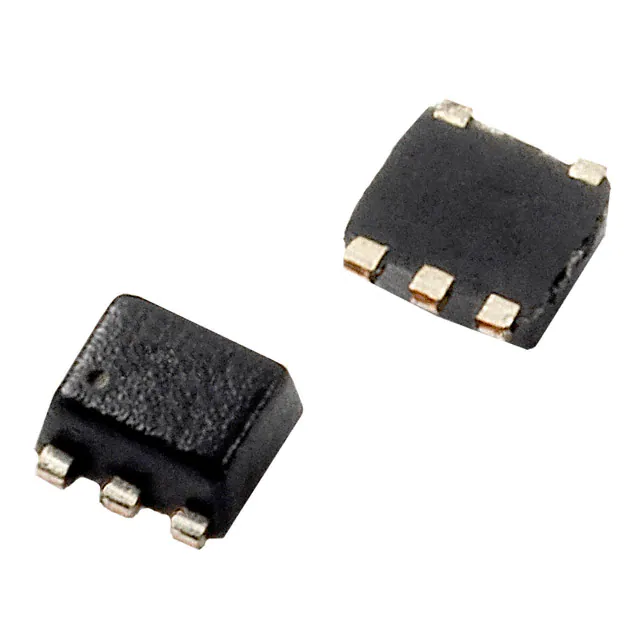

SP1004-04VTGTVS DIODE 6VWM 12VC SOT953 |
6,767 |
|
Datasheet | SOT-953 | SP1004, SPA® | Tape & Reel (TR) | Obsolete | Zener | - | 4 | 6V (Max) | 8V | 12V (Typ) | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-953 |
|
SP1011-04UTGTVS DIODE 6VWM 10.2VC 6UDFN |
4,070 |
|
Datasheet | 6-XDFN | SP1011, SPA® | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6V (Max) | 7V | 10.2V | 2A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-µDFN (1.25x1.0) |
