TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
SMCJ7.5CAE3/TR13TVS DIODE 7.5VWM 12.9VC DO214AB |
7,421 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
3.0SMCJ14CAQ-13TRANSIENT VOLTAGE SUPPRESSOR PP |
6,758 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 129.3A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
3.0SMCJ10CAQ-13TRANSIENT VOLTAGE SUPPRESSOR PP |
5,405 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 176.5A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
3.0SMCJ11CAQ-13TRANSIENT VOLTAGE SUPPRESSOR PP |
4,753 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.2V | 18.2V | 164.8A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
3.0SMCJ12CAQ-13TRANSIENT VOLTAGE SUPPRESSOR PP |
5,548 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.8A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
USB6B1TVS DIODE 5.25VWM 8-SO |
6,778 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | USB | Tube | Obsolete | Steering (Rail to Rail) | 2 | - | 5.25V | 6V | - | - | 500W | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

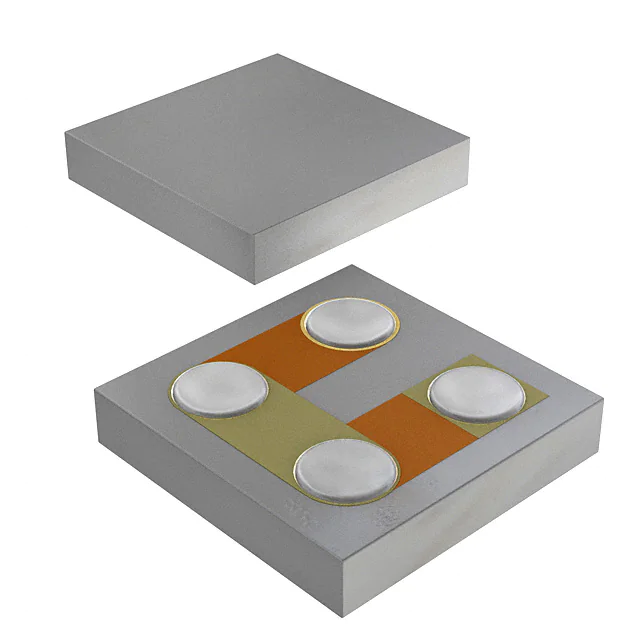

TPD2E007YFMTG4TVS DIODE 13VWM 4DSLGA |
5,477 |
|
Datasheet | 4-XFLGA, DSLGA | - | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 13V (Max) | 14V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 4-DSLGA |
|
P6KE15CA-TTVS DIODE 12.8VWM 21.2VC DO15 |
3,369 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 28A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
P6SMBJ220ATVS DIODE 185VWM 328VC DO214AA |
4,372 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 185V | 209V | 328V | 1.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ250ATVS DIODE 214VWM 344VC DO214AA |
9,754 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 214V | 237V | 344V | 1.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ300ATVS DIODE 256VWM 414VC DO214AA |
9,655 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 256V | 285V | 414V | 1.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ350ATVS DIODE 300VWM 482VC DO214AA |
9,015 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 300V | 332V | 482V | 1.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ400ATVS DIODE 342VWM 548VC DO214AA |
6,109 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 342V | 380V | 548V | 1.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ440ATVS DIODE 376VWM 602VC DO214AA |
9,501 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 376V | 418V | 602V | 1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ480ATVS DIODE 408VWM 658VC DO214AA |
3,178 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 408V | 456V | 658V | 900mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ510ATVS DIODE 434VWM 698VC DO214AA |
9,389 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 434V | 485V | 698V | 900mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ530ATVS DIODE 477VWM 725VC DO214AA |
3,411 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 477V | 503.5V | 725V | 800mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ540ATVS DIODE 459VWM 740VC DO214AA |
2,888 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 459V | 513V | 740V | 800mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
P6SMBJ550ATVS DIODE 495VWM 760VC DO214AA |
2,208 |
|
Datasheet | DO-214AA, SMB | P6SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 495V | 522.5V | 760V | 800mA | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
RSB6.8CST2RTVS DIODE 3.5VWM VMN2 |
9,251 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 3.5V | 5.78V | - | - | 10W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | VMN2 (SOD-923) |
