TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;2.jpg)
|
SAC6.0TVS DIODE 6VWM 11.2VC DO204AC |
5,715 |
|
Datasheet | DO-204AC, DO-15, Axial | SAC | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 7.9V | 11.2V | 41A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMF14VTRTVS DIODE 14VWM 23.2VC PMDU |
9,264 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V (Max) | 15.6V | 23.2V | 8.6A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
|
|
SMF9V0TRTVS DIODE 9VWM 15.4VC PMDU |
7,524 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V (Max) | 10V | 15.4V | 13A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
|
1.5SMC160ATVS DIODE 136VWM 219VC DO214AB |
7,829 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | 1 | - | 136V | 152V | 219V | 6.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
MMBZ6V8ALYFHT1164.5V, SOT-23, DUAL LINE, ANODE C |
8,354 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 4.5V (Max) | 6.46V | 9.6V | 2.5A | 24W | No | General Purpose | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
1.5SMB43ATVS DIODE 36.8VWM 76.6VC DO214AA |
7,807 |
|
Datasheet | DO-214AA, SMB | 1.5SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 76.6V | 140.8A (8/20µs) | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P4SMA20ATVS DIODE 17.1VWM 27.7VC DO214AC |
2,552 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 14.8A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE6.8A-BTVS DIODE 5.8VWM 10.5VC DO204AC |
3,339 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | 1 | - | 5.8V | 6.45V | 10.5V | 58.1A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE120A-BTVS DIODE 102VWM 165VC DO204AC |
9,209 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | 1 | - | 102V | 114V | 165V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6SMAJ43ADF-13TVS DIODE 43VWM 69.4VC D-FLAT |
3,142 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
VS10VUA1LAMTRTVS DIODE 10VWM 17VC PMDTM |
10 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 10V (Max) | 11.1V | 17V | 35.3A | 600W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDTM |
|
SMC30J48ATVS DIODE 48VWM 76.6VC SMC |
6,261 |
|
Datasheet | DO-214AB, SMC | SMC30J | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.2V | 76.6V | 38A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
SM4T14AYTVS DIODE 12VWM 25.3VC SMA |
3,913 |
|
Datasheet | DO-214AC, SMA | SM4TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 25.3V | 91A (8/20µs) | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMA6L28ATVS DIODE 28VWM 45.4VC DO221AC |
5,948 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 13.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
|
P6KE33CA-BTVS DIODE 28.2VWM 45.7VC DO204AC |
8,002 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Bulk | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 13.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMM4F13A-TRTVS DIODE 13VWM 27.2VC DO222-AA |
2,714 |
|
Datasheet | DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 13V | 14.3V | 27.2V | 85A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | STmite Flat (DO222-AA) |
|
|
VS24VUA1LAMTFTRTVS DIODE 24VWM 38.9VC PMDTM |
3,042 |
|
Datasheet | SOD-128 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.4A | 600W | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PMDTM |
|

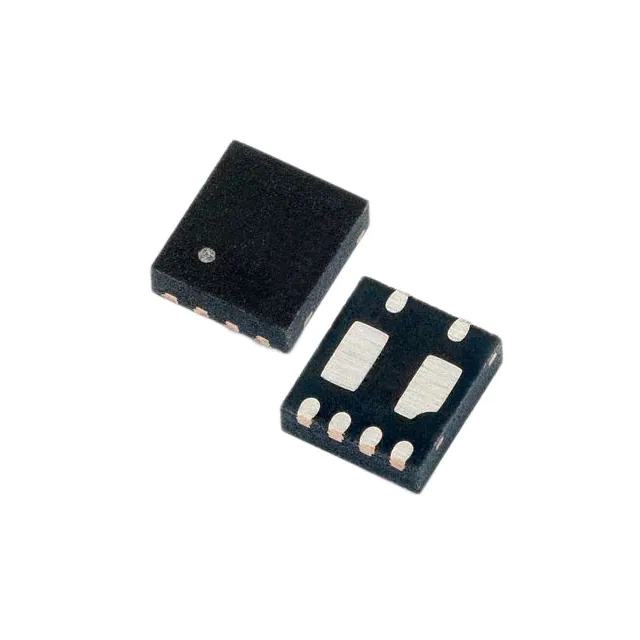

SP1224-01UTGTVS DIODE 22VWM 37VC 6UDFN |
8,198 |
|
Datasheet | 6-UFDFN Exposed Pad | SP1220, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24V | 37V | 100A (8/20µs) | 3700W (3.7kW) | No | General Purpose | 770pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-µDFN (1.8x2) |
|
|
SMA6J70A-TRTVS DIODE 70VWM 120VC SMA |
5,252 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 120V | 27A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE400ARLTVS DIODE 342VWM 706VC DO15 |
5,154 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 342V | 380V | 706V | 5.7A (8/20µs) | 600W | No | General Purpose | 360pF @ 1MHz | - | - | - | Through Hole | DO-204AC (DO-15) |
