TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6KE91ATVS DO15 77.8V 600W UNIDIR |
3,059 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 77.8V | 86.5V | 125V | 4.8A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
PACDN044YB5RTVS DIODE 5.5VWM 8VC SC70-5 |
5,908 |
|
Datasheet | 5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88A (SC-70-5) |
|
PACDN043Y4RTVS DIODE 5.5VWM 8VC SOT143-4 |
5,848 |
|
Datasheet | TO-253-4, TO-253AA | - | Tape & Reel (TR) | Obsolete | Zener | 3 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-143-4 |
|

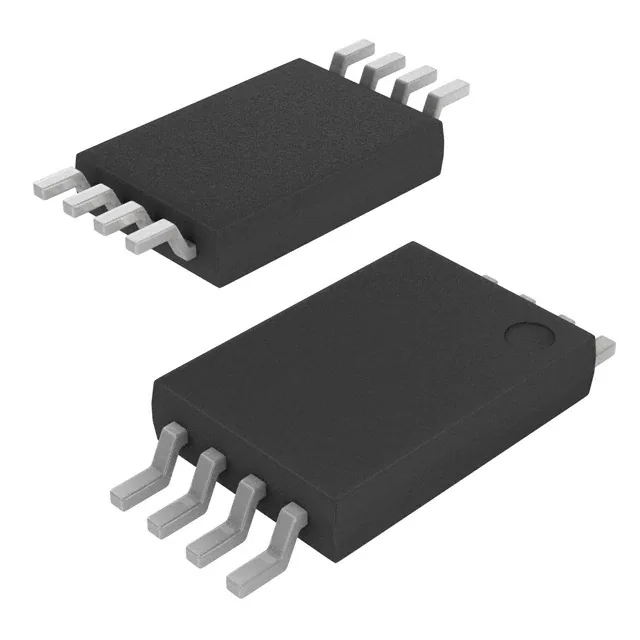

PACDN044TRTVS DIODE 5.5VWM 8VC 8-TSSOP |
9,519 |
|
Datasheet | 8-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TSSOP |
|
PACDN045Y6RTVS DIODE 5.5VWM 8VC SOT23-6 |
4,049 |
|
Datasheet | SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5.5V | 6.2V | 8V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
.jpg)
|
SZ1SMB7.5AT3GTVS DIODE 7.5VWM 12.9VC SMB |
9,708 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | - | 1890pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
RSBC6.8CST2RATVS DIODE 3.5VWM VMN2 |
6,964 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.5V | 6.62V | - | - | - | No | General Purpose | - | - | - | - | Surface Mount | VMN2 |
|
P4SMA11CATVS DIODE 9.4VWM 15.6VC DO214AC |
4,723 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 9.4V | 10.5V | 15.6V | 26.3A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMA6L14ATVS DIODE 14VWM 23.2VC DO221AC |
2,790 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
SMA6L150ATVS DIODE 150VWM 243VC DO221AC |
2,688 |
|
Datasheet | DO-221AC, SMA Flat Leads | SMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 1.65A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-221AC |
|
ESD5004MXTBGTVS DIODE 3.3VWM 9.1VC 4X3DFN |
2,501 |
|
Datasheet | 4-XFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3.3V (Max) | 3.9V | 9.1V | - | - | No | General Purpose | 3.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 4-X3DFN (0.53x0.93) |
|
P6SMB160ATVS DIODE 136VWM 219VC DO214AA |
2,460 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 136V | 152V | 219V | 2.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6KE7V5A-TTVS DIODE 6.4VWM 11.3VC DO15 |
1,884 |
|
Datasheet | DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 53A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
NSPM2051MUT5GTVS DIODE 5VWM 10.5VC 2UDFN |
139,836 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 5.1V | 10.5V | 100A (8/20µs) | - | No | General Purpose | 380pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|
CM1234-08DETVS DIODE 5.5VWM 9VC 16WDFN |
5,691 |
|
Datasheet | 16-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 6V | 9V (Typ) | 1A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WDFN (6x4) |
|
|
NSPM0061MUT5GTVS DIODE 6.3VWM 11.5VC 2UDFN |
6,308 |
|
Datasheet | 2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.3V (Max) | 6.5V | 11.5V | - | - | No | General Purpose | 12pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
|
HZM6.8MFATR-ETRANS VOLTAGE SUPPRESSOR DIODE |
6,619 |
|
Datasheet | - | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
P6KE11CATVS DO15 9.4V 600W BIDIR |
3,583 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 2 | 9.4V | 10.5V | 15.6V | 38A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
1SMB20CAT3TVS DIODE 20VWM 32.4VC SMB |
4,466 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | 425pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
EMZC6.8NTLTVS DIODE 3.5VWM EMD3 |
1,404 |
|
Datasheet | SC-75, SOT-416 | - | Tape & Reel (TR) | Not For New Designs | Zener | 2 | - | 3.5V | 6.65V | - | - | - | No | General Purpose | 3pF @ 1MHz | - | - | - | Surface Mount | EMD3 |
