TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP5.0SMDJ110CATVS 5KW AECQ-101 TR13 ROHS |
2,990 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 122V | 177V | 28.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TP5.0SMDJ170CATVS 5KW AECQ-101 TR13 ROHS |
2,789 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 18.2A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
5KP78CATVS P600 78V 5000W BIDIR |
1,600 |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 40.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
TP5.0SMDJ140CATVS 5KW AECQ-101 TR13 ROHS |
3,000 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 140V | 156V | 226.1V | 22.2A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TP5.0SMDJ85ATVS 5KW AECQ-101 TR13 ROHS |
2,980 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 36.5A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TP5.0SMDJ90ATVS 5KW AECQ-101 TR13 ROHS |
2,931 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | 34.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TP5.0SMDJ90CATVS 5KW AECQ-101 TR13 ROHS |
2,538 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 34.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TP5.0SMDJ85CATVS 5KW AECQ-101 TR13 ROHS |
1,950 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94.4V | 137V | 36.5A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
TP5.0SMDJ140ATVS 5KW AECQ-101 TR13 ROHS |
835 |
|
Datasheet | DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 140V | 156V | 226.1V | 22.2A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
M5KP7.5CATVS DIODE 7.5VWM 12.9VC DO204AR |
269 |
|
Datasheet | DO-204AR, Axial | - | Bulk | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 388A | 5000W (5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Through Hole | DO-204AR |
.jpg)
|
MASMCJLCE6.5ATVS DIODE 6.5VWM 11.2VC DO214AB |
214 |
|
Datasheet | DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 100A | 1500W (1.5kW) | No | General Purpose | 100pF @ 1MHz | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCJ) |
|

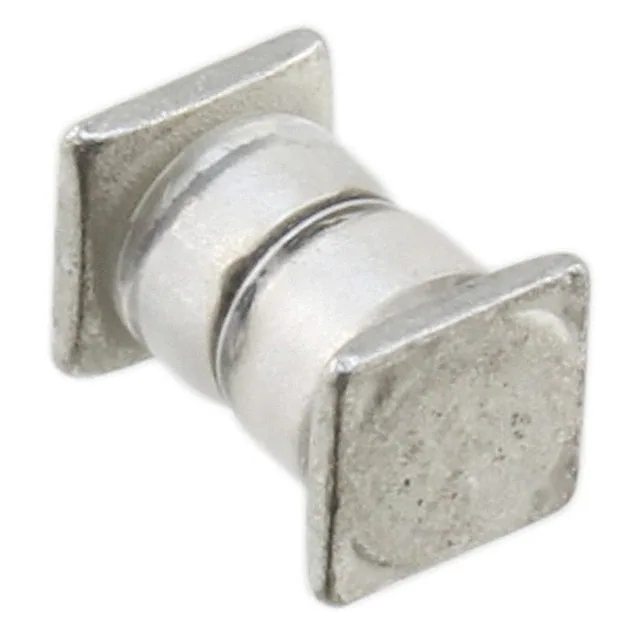

JANTX1N6105AUSTVS DIODE 6.9VWM 13.4VC SQ-MELF |
112 |
|
Datasheet | SQ-MELF, B | - | Bulk | Active | Zener | - | 1 | 6.9V | 8.65V | 13.4V | 37.3A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | B, SQ-MELF |
|
AK6-058C-YTVS DIODE 58VWM 110VC AXIAL |
119 |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | AK6-Y | Bulk | Active | Zener | - | 1 | 58V | 64V | 110V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 8000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
30KPA42CATVS DIODE 42VWM 72VC P600 |
2,122 |
|
Datasheet | P600, Axial | 30KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 42V | 46.9V | 72V | 420.8A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
JANTX1N6103AUSTVS DIODE 5.7VWM 11.2VC SQ-MELF |
127 |
|
Datasheet | SQ-MELF, B | - | Bulk | Active | Zener | - | 1 | 5.7V | 7.13V | 11.2V | 44.6A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Surface Mount | B, SQ-MELF |
|
SMTAK3-066CTVS DIODE 66VWM 120VC SMTAK |
190 |
|
Datasheet | 2-SMD | SMTAK3 | Tape & Reel (TR) | Active | Zener | - | 1 | 66V | 72V | 120V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 6000pF @ 10kHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SMTAK |
|
|
1N6476US/TRUNI-DIRECTIONAL TVS |
395 |
|
Datasheet | SQ-MELF, C | - | Tape & Reel (TR) | Active | Zener | 1 | - | 51.6V | 54V | 78.5V | 19A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | D-5C |
|
SMDJ12CA-HRTVS DIODE 12VWM 19.9VC DO214AB |
492 |
|
Datasheet | DO-214AB, SMC | SMDJ-HR | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.8A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMDJ30A-HRTVS DIODE 30VWM 48.4VC DO214AB |
225 |
|
Datasheet | DO-214AB, SMC | SMDJ-HR | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
JANTX1N6156ATVS DIODE 29.7VWM 53.6VC |
248 |
|
Datasheet | G, Axial | - | Bulk | Active | Zener | - | 1 | 29.7V | 37.1V | 53.6V | 28A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/516 | Through Hole | - |
