TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4SMAJ33ADF-13TVS DIODE 33VWM 53.3VC D-FLAT |
9,703 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 7.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
DESD12V0S1BLQ-7BDATALINE PROTECTION PP X1-DFN100 |
9,446 |
|
Datasheet | 0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 15V | 33.5V | 8.5A (8/20µs) | 300W | No | - | 20pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
SMCJ20A-TRTVS DIODE 20VWM 42.8VC SMC |
5,693 |
|
Datasheet | DO-214AB, SMC | SMCJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 42.8V | 234A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
P4SMAJ70ADF-13TVS DIODE 70VWM 113VC D-FLAT |
4,694 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
P4SMAJ6.0ADF-13TVS DIODE 6VWM 10.3VC D-FLAT |
4,592 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 38.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
SMAJ14CAQ-13-FTVS DIODE 14VWM 23.2VC SMA |
2,438 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 17.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|

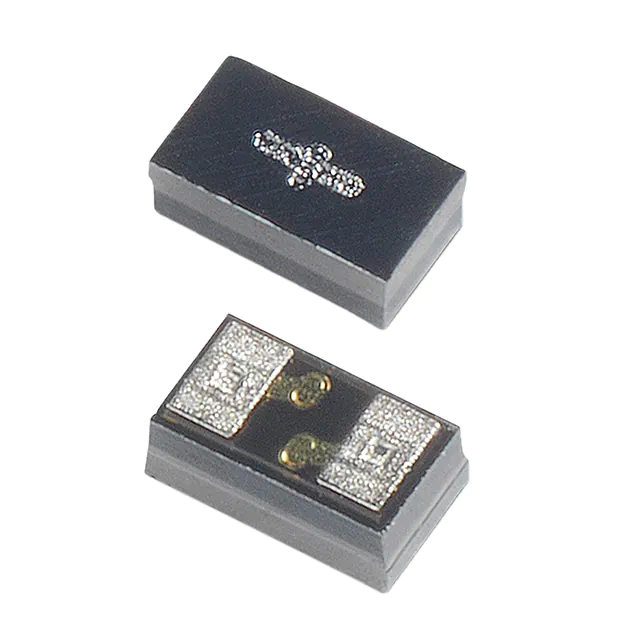

SP1312-01WTGTVS DIODE 12VWM 27VC 01005 |
10,175 |
|
Datasheet | 01005 (0402 Metric) | SP1312, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 27V | 3A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 01005, Flip Chip |
|
|
ESDL3552PFCT5GESD PROTECTION |
9,671 |
|
Datasheet | 3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.5V | 21.5V | 2A (8/20µs) | - | No | USB | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-X4DFN (0.62x0.32) |
|
RSAC6.8CMT2RTVS DIODE 5VWM SOD923 |
5,586 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.7V | - | - | - | No | General Purpose | 0.3pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VMN2M (SOD-923) |
|
TPSMF4L7.0ATVS DIODE 7VWM 12VC SOD123FL |
5,222 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 30.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
P4SMAJ20ADF-13TVS DIODE 20VWM 32.4VC D-FLAT |
5,069 |
|
Datasheet | 2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
.jpg)
|
SZP6SMB11CAT3GTVS DIODE 9.4VWM 15.6VC SMB |
2,692 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 9.4V | 10.5V | 15.6V | 38A | 600W | No | - | 865pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SA51CATVS DIODE 51VWM 82.4VC DO204AC |
10,491 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 51V | 56.7V | 82.4V | 6.2A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P4KE47ATVS DO15 40.2V 400W UNIDIR |
9,332 |
|
Datasheet | DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 6.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
VS5V0BA1FST27NTVS DIODE 5VWM 9.15VC SMD0402 |
7,620 |
|
Datasheet | 2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.3V | 9.15V | 2.9A (8/20µs) | 26.5W | No | General Purpose | 6pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SMD0402 |
|
SA6.5ATVS DIODE 6.5VWM 11.2VC DO204AC |
1,485 |
|
Datasheet | DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 45.5A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P4SMA68CATVS DIODE 58.1VWM 92VC DO214AC |
9,640 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 4.5A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ22CAQ-13-FTVS DIODE 22VWM 35.5VC SMA |
4,086 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 11.2A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SMAJ17CAQ-13-FTVS DIODE 17VWM 27.6VC SMA |
3,522 |
|
Datasheet | DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 14.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
P4SMA82CATVS DIODE 70.1VWM 113VC DO214AC |
3,473 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | 3.6A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
