TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZ1SMA12CAT3GTVS DIODE 12VWM 19.9VC SMA TR |
16,320 |
|
Datasheet | DO-214AC, SMA | SZ1SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SZ1SMA28CAT3GTVS DIODE 28VWM 45.4VC SMA |
15,223 |
|
Datasheet | DO-214AC, SMA | SZ1SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 8.8A | 400W | No | - | 225pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
1.5KE62CATVS DIODE 53VWM 111VC DO201 |
2,437 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 53V | 58.9V | 111V | 90A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 850pF @ 1MHz | - | - | - | Through Hole | DO-201 |
.jpg)
|
SZESD7016MUTAGTVS DIODE 5VWM 10VC 8-UDFN |
2,982 |
|
Datasheet | 10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 5V (Max) | 5.5V | 10V | - | - | No | - | 0.15pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-UDFN (3.3x1.0) |
|
|
1.5KE27ATVS DIODE 23.1VWM 48.3VC DO201 |
2,793 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | 1 | - | 23.1V | 25.7V | 48.3V | 207A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 3200pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SZ1SMB100AT3GTVS DIODE 100VWM 162VC SMB |
2,596 |
|
Datasheet | DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 3.7A | 600W | No | - | 190pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
1.5SMC150CATVS DIODE 128VWM 207VC DO214AB |
2,312 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 128V | 143V | 207V | 7.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
AQ3102-02HTGTVS DIODE 6VWM 16VC SOT23-3L |
2,133 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | 3102 | Tape & Reel (TR) | Active | Zener | 2 | - | 6V (Max) | 6.5V | 16V | 8A (8/20µs) | - | No | - | 1pF @ 3GHz | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SMCJ18CA-TRTVS DIODE 18VWM 39.3VC SMC |
3,088 |
|
Datasheet | DO-214AB, SMC | SMCJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 39.3V | 254A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMDJ17CATVS DIODE 17VWM 27.6VC DO214AB |
2,655 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 17V | 18.9V | 27.6V | 108.7A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
AQ7520-08UTG3.3V 6A 12KV DFN3810-9L DIODES A |
2,297 |
|
Datasheet | 9-UDFN | - | Tape & Reel (TR) | Active | Zener | 8 | - | 3.3V (Max) | 6.5V | 6V | 6A (8/20µs) | - | No | Telecom, USB | 0.32pF @ 1MHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | 9-µDFN (3.8x1) |
|
SMCJ9.0A-13-FTVS DIODE 9VWM 15.4VC SMC |
9,322 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
1.5KE100CATVS DIODE 85.5VWM 178VC DO201 |
3,252 |
|
Datasheet | DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 85.5V | 95V | 178V | 56A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 575pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
SM4T68CAYTVS DIODE 58VWM 121VC SMA |
2,614 |
|
Datasheet | DO-214AC, SMA | SM4TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 121V | 19A (8/20µs) | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
TPSMC18CATVS DIODE 15.3VWM 25.2VC DO214AB |
5,668 |
|
Datasheet | DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 60.3A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
|
SMA6T6V7CAYTVS DIODE 5VWM 13.4VC SMA |
1,277 |
|
Datasheet | DO-214AC, SMA | SMA6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 13.4V | 298A (8/20µs) | 600W | No | - | - | -40°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SM15T12ATVS DIODE 10.2VWM 21.7VC SMC |
8,378 |
|
Datasheet | DO-214AB, SMC | SM15T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 10.2V | 11.4V | 21.7V | 461A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
3.0SMCJ30CATVS DIOD 3000W DO-214AB 30V |
2,802 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

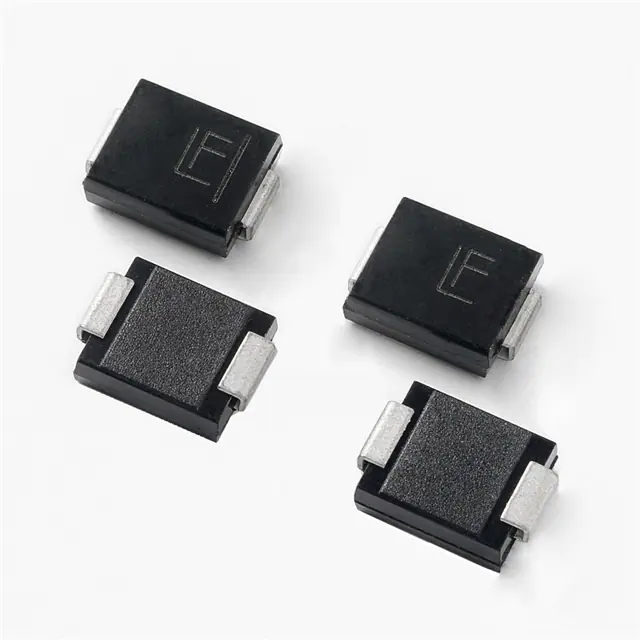

3.0SMCJ28CATVS DIOD 3000W DO-214AB 28V |
8,628 |
|
Datasheet | DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 66.1A | 3000W (3kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP3025-04HTGTVS DIODE ARRAY 2.5V SOT23-6L |
7,265 |
|
Datasheet | SOT-23-6 | SP3025, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 2.5V (Max) | 5.5V | 11V | 30A (8/20µs) | - | No | Ethernet | 2.5pF @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6L |
