TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ170CA-TRTVS DIODE 170VWM 275VC SMB |
5,435 |
|
Datasheet | DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 2.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
TPSMF4L11ATVS DIODE 11VWM 18.2VC SOD123FL |
4,723 |
|
Datasheet | SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 22A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
P6KE9.1ATVS DIODE 7.78VWM 13.4VC DO204AC |
4,028 |
|
Datasheet | DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 7.78V | 8.65V | 13.4V | 45.5A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
SMCJ5.0CA-TRTVS DIODE 5VWM 13.4VC SMC |
3,764 |
|
Datasheet | DO-214AB, SMC | SMCJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 13.4V | 746A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
;;2.jpg)
|
1.5SMC110CATVS DIODE 94VWM 152VC DO214AB |
3,744 |
|
Datasheet | DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 94V | 105V | 152V | 10A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
TPSMA6L54ATVS SMAF 54V 600W UNIDIR |
2,975 |
|
Datasheet | DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 54V | 60V | 87.1V | 6.9A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
DFLT40AQ-7TVS DIODE 40VWM 64.5VC PWRDI 123 |
2,951 |
|
Datasheet | POWERDI®123 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 3.49A | 225W | No | Industrial, Multipurpose | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PowerDI™ 123 |
|
P4SMA36ATVS DIODE 30.8VWM 49.9VC DO214AC |
1,253 |
|
Datasheet | DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 8.2A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMF18A-T13TVS DIODE 18VWM 29.2VC SOD123FL |
19,511 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 6.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF20A-T13TVS DIODE 20VWM 32.4VC SOD123FL |
18,312 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 6.2A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMF40A-T13TVS DIODE 40VWM 64.5VC SOD123FL |
17,846 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 3.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
SMAJ188CATVS DIODE SMA SMT |
17,743 |
|
Datasheet | DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 188V | 209V | 304V | 1.4A | 400W | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMF16A-T13TVS DIODE 16VWM 26VC SOD123FL |
17,674 |
|
Datasheet | SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 7.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
P6SMB43ATVS DIODE 36.8VWM 59.3VC DO214AA |
7,645 |
|
Datasheet | DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMF18VTRTVS DIODE 18VWM 29.2VC PMDU |
6,223 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | 29.2V | 6.8A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
|
SP4023-01FTGTVS DIODE 15VWM 40VC SOD323 |
6,207 |
|
Datasheet | SC-76, SOD-323 | * | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 15V (Max) | 16V | 40V | 12A (8/20µs) | 450W | No | - | 1.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
SMF6V0TFTRTVS DIODE 6VWM 10.3VC PMDU |
5,315 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PMDU |
|

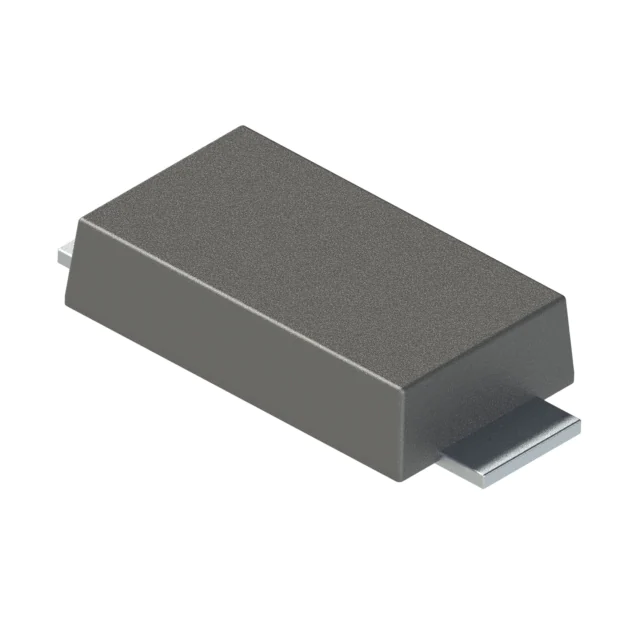

P6SMAJ58ADF-13TVS DIODE 58VWM 93.6VC D-FLAT |
4,755 |
|
Datasheet | 2-SMD, Flat Leads | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
SMA6J85CA-TRTVS DIODE 85VWM 146VC SMA |
3,550 |
|
Datasheet | DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94V | 146V | 22.5A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMF12VTRTVS DIODE 12VWM 19.9VC PMDU |
3,225 |
|
Datasheet | SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 19.9V | 10.1A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
