TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.0SMCJ5.0CAQ-13TRANSIENT VOLTAGE SUPPRESSOR SMC |
4,534 |
|
Datasheet | DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 326.1A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
ITA6V5B1RLTVS DIODE 5VWM 12VC 8-SOIC |
8,360 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | ITA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 5 | 5V | 6.5V | 12V | 25A (8/20µs) | 300W | No | General Purpose | 750pF @ 1MHz | - | - | - | Surface Mount | 8-SOIC |
|
5.0SMDJ40ATVS DIODE 40VWM 64.5VC DO214AB |
2,511 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 77.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
ITA18B1RLTVS DIODE 15VWM 28VC 8-SOIC |
30,614 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | ITA, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 5 | 15V | 18V | 28V | 25A (8/20µs) | 300W | No | General Purpose | 350pF @ 1MHz | - | - | - | Surface Mount | 8-SOIC |
|
|
5.0SMDJ36ASTVS DIODE 36VWM 58.1VC DO214AB |
12,021 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 86.1A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|

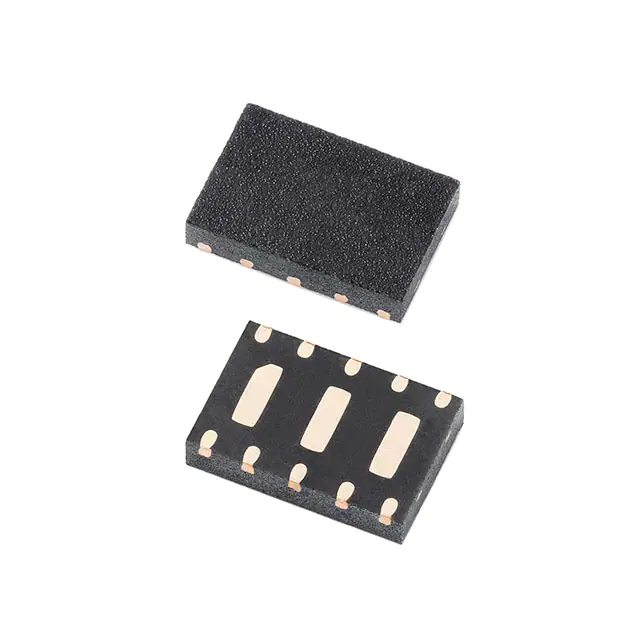

SP3384NUTGTVS DIODE ARRAY 3.3V 15A UDFN10 |
2,260 |
|
Datasheet | 10-UDFN Exposed Pad | SP3384N, SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 6.5V | 15V | 15A (8/20µs) | - | - | - | 0.7pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | 10-µDFN (3x2) |
|
SMC50J5.0A5000 W, 5 V TVS IN SMC |
1,645 |
|
Datasheet | DO-214AB, SMC | SMC50J | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.4V | 9.2V | 544A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
5.0SMDJ78ATVS DIODE 78VWM 126VC DO214AB |
11,726 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 39.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ150CATVS DIODE 150VWM 243VC DO214AB |
7,265 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167V | 243V | 20.6A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SM5908TVS DIODE 5VWM 8.5VC SMC |
10,227 |
|
Datasheet | DO-214AB, SMC | TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6V | 8.5V | 120A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMC |
|
TPD8S009DSMRTVS DIODE 5.5VWM 15SON |
9,325 |
|
Datasheet | 15-SMD, No Lead | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 5.5V (Max) | 9V | - | - | 25W | No | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 15-SON |
|
|
5.0SMDJ75ATVS DIODE 75VWM 121VC DO214AB |
16,011 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 75V | 83.3V | 121V | 41.4A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ180ATVS DIODE 180VWM 292VC DO214AB |
5,335 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 180V | 200V | 291.6V | 10.29A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
5KP26ATVS P600 26V 5000W UNIDIR |
974 |
|
Datasheet | P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 121.1A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
SMDJ220ATVS DIODE 220VWM 356VC DO214AB |
3,107 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 220V | 246V | 356V | 8.43A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ9.0ASTVS DIODE 9VWM 15.4VC DO214 TR13 |
5,997 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10V | 15.4V | 324.7A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMDJ220CATVS DIODE 220VWM 356VC DO214AB |
6,127 |
|
Datasheet | DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | - | 2 | 220V | 246V | 356V | 8.43A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
;;2.jpg)
|
5.0SMDJ17CATVS DIODE 17VWM 27.6VC DO214AB |
11,678 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 18.9V | 27.6V | 181A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
5.0SMDJ70ATVS DIODE 70VWM 113VC DO214AB |
7,468 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 44.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
5.0SMDJ14CATVS DIODE 14VWM 23.2VC DO214AB |
3,706 |
|
Datasheet | DO-214AB, SMC | 5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 216A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
