SCRs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8012DRPSCR 800V 12A TO252 |
18,961 |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 800 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-252 (DPAK) |
|

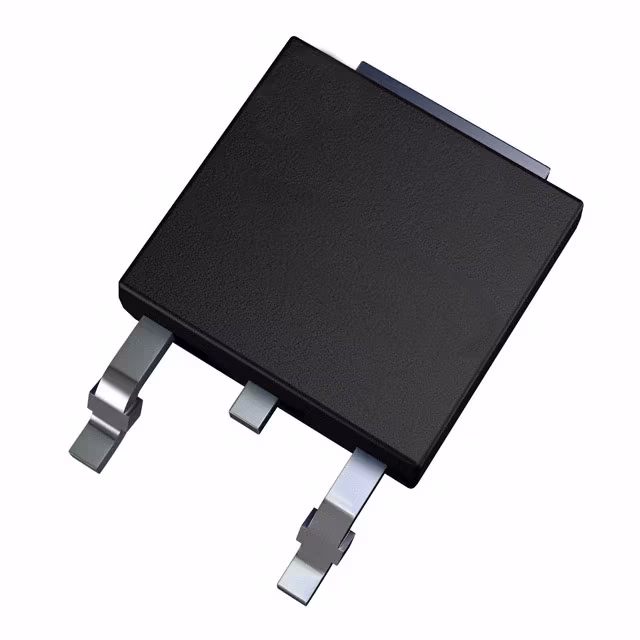

SV6016D1RPSCR 16A 600V HI TEMP TO-252 |
4,707 |
|
Datasheet | SV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 10.2 A | 16 A | 40 mA | 10 µA | 180A, 200A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
TN5015H-6ISCR 600V 50A TO220AB |
665 |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB Insulated |
|
SJ6010DS2RPSCR 600V 10A TO252 |
10,206 |
|
Datasheet | SJ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 30 mA | 10 µA | 83A, 100A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
SK016RTPSCR 1KV 16A TO220AB-R |
1,001 |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 kV | 1.5 V | 30 mA | 1.6 V | 10 A | 16 A | 40 mA | 20 µA | 188A, 225A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-R |
.jpg)
|
S4025RTPSCR 400V 25A TO220 |
483 |
|
Datasheet | - | TO-220-3 | Tube | Active | 400 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
|
S8020LTPSCR 800V 20A TO220AB-L |
1,303 |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 800 V | 1.5 V | 30 mA | 1.6 V | 12.8 A | 20 A | 40 mA | 20 µA | 255A, 300A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-L |
|
C122F1GSCR 50V 8A TO220AB |
696 |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 25 mA | 1.83 V | - | 8 A | 30 mA | 10 µA | 90A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6394GSCR 50V 12A TO220AB |
946 |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 2.2 V | - | 12 A | 50 mA | 10 µA | 100A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
TN2540-12G-TRSCR 1.2KV 25A D2PAK |
829 |
|
Datasheet | ECOPACK®2 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1.2 kV | 1.3 V | 40 mA | 1.6 V | 16 A | 25 A | 80 mA | 10 µA | 300A, 314A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
S4016NRPSCR 400V 16A TO263 |
467 |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 400 V | 1.5 V | 30 mA | 1.6 V | 10 A | 16 A | 40 mA | 10 µA | 188A, 225A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
MCR25NGSCR 800V 25A TO220AB |
1,000 |
|
Datasheet | - | TO-220-3 | Box | Active | 800 V | 1 V | 30 mA | 1.8 V | - | 25 A | 40 mA | 10 µA | 300A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
SJ6020R2TPSCR 600V 20A TO220AB |
570 |
|
Datasheet | SJ | TO-220-3 | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 12.8 A | 20 A | 35 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
2N6400GSCR 50V 16A TO220AB |
883 |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
S8016NRPSCR 800V 16A TO263 |
19,913 |
|
Datasheet | Teccor® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 800 V | 1.5 V | 30 mA | 1.6 V | 10 A | 16 A | 40 mA | 20 µA | 188A, 225A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SRUK208DRPSCR 1.2KV 8A TO252 |
2,357 |
|
Datasheet | Teccor® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1.2 kV | 1.5 V | 15 mA | 1.6 V | 5.1 A | 8 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
SJ6020LTPSCR 600V 20A ITO220AB |
574 |
|
Datasheet | SJ | TO-220-3 Full Pack, Isolated Tab | Tube | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 12.8 A | 20 A | 75 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | ITO-220AB |
|
|
SJ6025R2TPSCR 600V 25A TO220AB |
1,547 |
|
Datasheet | SJ | TO-220-3 | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 16 A | 25 A | 35 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SJ6025RTPSCR 600V 25A TO220AB |
584 |
|
Datasheet | SJ | TO-220-3 | Tube | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 75 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SK025LTPSCR 1KV 25A TO220AB-L |
447 |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 kV | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 20 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-L |
