SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDB6HK124N16RRBPSA1LOW POWER ECONO AG-ECONO2B-211 |
10 |
|
Datasheet | - | Module | Tray | Active | Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode | 3 SCRs, 3 Diodes | 1.6 kV | - | 70 A | 2.5 V | 150 mA | 650A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TT330N16KOFHPSA2SCR MODULE 1.6KV 520A MODULE |
16 |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | - | 300 mA | 130°C (TJ) | - | - | Chassis Mount |
|
TT370N18KOFHPSA1THYR / DIODE MODULE DK |
6 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TD570N18KOFHPSA1THYR / DIODE MODULE DK |
3 |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|

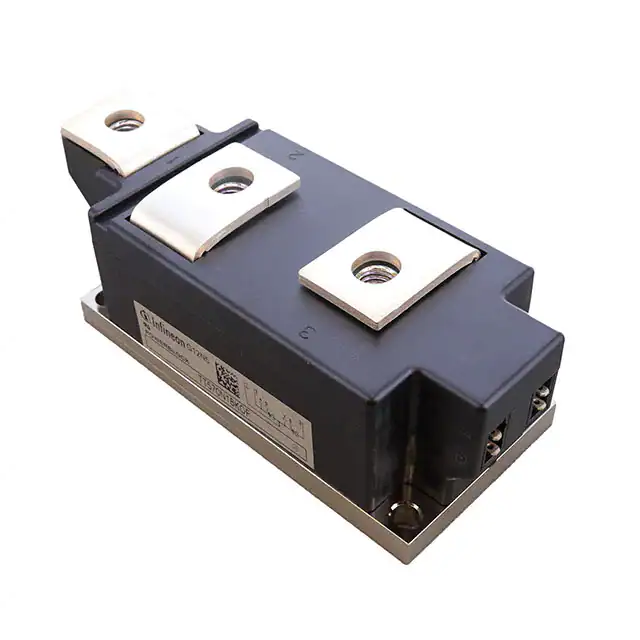

TT570N18KOFHPSA1THYR / DIODE MODULE DK |
2 |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 566 A | 1050 A | 2 V | 250 mA | 20000A | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
.jpg)
|
T3800N16TOFVTXPSA1STD THYR/DIODEN DISC BG-T11126K- |
5,055 |
|
Datasheet | - | TO-200AE | Bulk | Active | Single | 1 SCR | 1.8 kV | 3800 A | 5970 A | 2.5 V | 250 mA | 63000A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
TT60N16SOFB01HPSA1SCR MODULE 1600V 90A MODULE |
15 |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 2 SCRs | 1.6 kV | 55 A | 90 A | 2.5 V | 100 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT160N16SOFHPSA1SCR MODULE 1.6KV 275A MODULE |
3 |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
DD220N22SHPSA1LA-T-BOND MODULE |
8 |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 273 A | 275 A | - | - | 5750A @ 50Hz | - | 130°C (TC) | - | - | Chassis Mount |
|
TD240N16SOFHPSA1LA-T-BOND MODULE |
8 |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
TT240N16SOFHPSA1LA-T-BOND MODULE |
2 |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
|
TT240N18SOFHPSA1LA-T-BOND MODULE |
3 |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 240 A | 275 A | 2.5 V | 145 mA | 5200A @ 50Hz | 200 mA | 130°C (TC) | - | - | Chassis Mount |
|
TD390N18SOFHPSA1SCR MODULE 1.8KV 520A MODULE |
3 |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
T390N14TOFXPSA1SCR MODULE 1600V 600A DO200AA |
22 |
|
Datasheet | - | TO-200AA | Tray | Active | Single | 1 SCR | 1.6 kV | 381 A | 600 A | 2 V | 150 mA | 4900A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
T470N16TOFXPSA1SCR MODULE 1600V 800A DO200AA |
18 |
|
Datasheet | - | TO-200AA | Tray | Active | Single | 1 SCR | 1.6 kV | 470 A | 800 A | 2 V | 200 mA | 7100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TD390N16SOFHPSA1LA-T-BOND MODULE |
18 |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
TT390N16SOFHPSA1LA-T-BOND MODULE |
4 |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 380 A | 520 A | 2 V | 150 mA | 9500A @ 50Hz | 150 mA | -40°C ~ 125°C (TC) | - | - | Chassis Mount |
|
T420N16TOFXPSA1SCR MODULE 1800V 750A DO200AA |
6 |
|
Datasheet | - | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 424 A | 750 A | 2 V | 200 mA | 7200A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
T640N16TOFXPSA1SCR MODULE 1800V 1250A DO200AA |
12 |
|
Datasheet | - | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 644 A | 1250 A | 2.2 V | 250 mA | 9400A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
T640N14TOFXPSA1SCR MODULE 1800V 1250A DO200AA |
6 |
|
Datasheet | - | DO-200AA, A-PUK | Tray | Active | Single | 1 SCR | 1.8 kV | 644 A | 1250 A | 2.2 V | 250 mA | 9400A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
