Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EE2-5SNURELAY GENERAL PURPOSE DPDT 2A 5V |
3,508 |
|
Datasheet | EE2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-5SNU-LRELAY GENERAL PURPOSE DPDT 2A 5V |
363 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-4.5NU-LRELAY GEN PURPOSE DPDT 2A 4.5V |
114 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EB2-3TNU-LRELAY GENERAL PURPOSE DPDT 1A 3V |
1,370 |
|
Datasheet | EB2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-12TNUH-LRELAY GEN PURPOSE DPDT 2A 12V |
5,999 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 11.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 9 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
.JPG)
|
EE2-4.5TNU-LRELAY GEN PURPOSE DPDT 2A 4.5V |
578 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-3SNU-LRELAY GENERAL PURPOSE DPDT 2A 3V |
4,140 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EC2-24SNURELAY GEN PURPOSE DPDT 2A 24V |
807 |
|
Datasheet | EC2 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 4.2 mA | Latching, Single Coil | - | PC Pin | - | - | 18 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

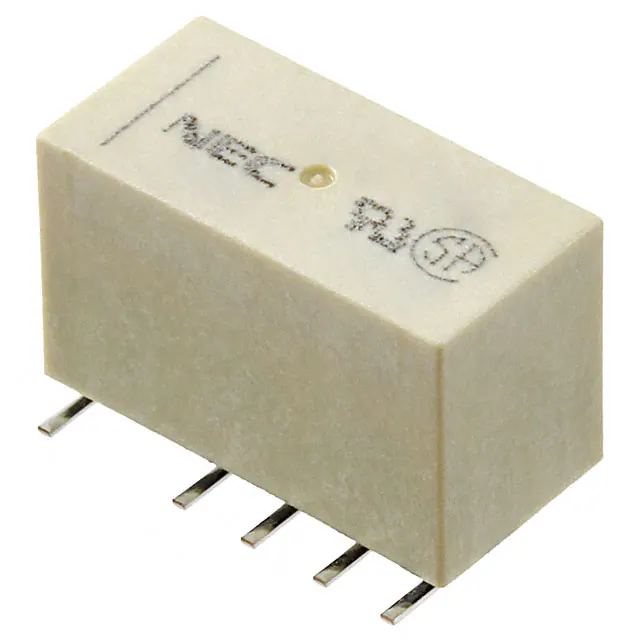

EE2-4.5TNURELAY GEN PURPOSE DPDT 2A 4.5V |
3,250 |
|
Datasheet | EE2 | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UD2-4.5NUN-LRELAY GEN PURPOSE DPDT 1A 4.5V |
2,400 |
|
Datasheet | UD2 | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 31 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-5SNUH-LRELAY GENERAL PURPOSE DPDT 2A 5V |
374 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.75 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
.JPG)
|
EE2-4.5TNUH-LRELAY GEN PURPOSE DPDT 2A 4.5V |
1,745 |
|
Datasheet | EE2 | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UD2-4.5NURELAY GEN PURPOSE DPDT 1A 4.5V |
6,805 |
|
Datasheet | UD2 | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 31 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EB2-3TNURELAY GENERAL PURPOSE DPDT 1A 3V |
3,419 |
|
Datasheet | EB2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UD2-3SNU-LRELAY GENERAL PURPOSE DPDT 1A 3V |
2,149 |
|
Datasheet | UD2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
UD2-3NU-LRELAY GENERAL PURPOSE DPDT 1A 3V |
1,682 |
|
Datasheet | UD2 | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UB2-5NENRELAY GENERAL PURPOSE DPDT 1A 5V |
5,348 |
|
Datasheet | UB2 | Tube | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 20 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-3NUX-LRELAY GENERAL PURPOSE DPDT 2A 3V |
1,000 |
|
Datasheet | EE2 | Tape & Reel (TR) | Not For New Designs | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
EE2-3SNUHRELAY GENERAL PURPOSE DPDT 2A 3V |
3,148 |
|
Datasheet | EE2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
|
EE2-3TNUHRELAY GENERAL PURPOSE DPDT 2A 3V |
3,288 |
|
Datasheet | EE2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 46.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 2.25 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
