RF Transceiver Modules and Modems
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | RF Family/Standard | Protocol | Modulation | Frequency | Data Rate | Power - Output | Sensitivity | Serial Interfaces | Antenna Type | Utilized IC / Part | Memory Size | Voltage - Supply | Current - Receiving | Current - Transmitting | Mounting Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATWINC1500-MR210PBRF TXRX MOD WIFI TH SMD |
0 |
|
Datasheet | - | Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 18.5dBm | -95dBm | I2C, SPI, UART | Integrated, Trace | ATWINC1500B | 4MB Flash, 128kB RAM | 2.7V ~ 3.6V | 61mA | 265mA | Surface Mount | -40°C ~ 85°C |
|

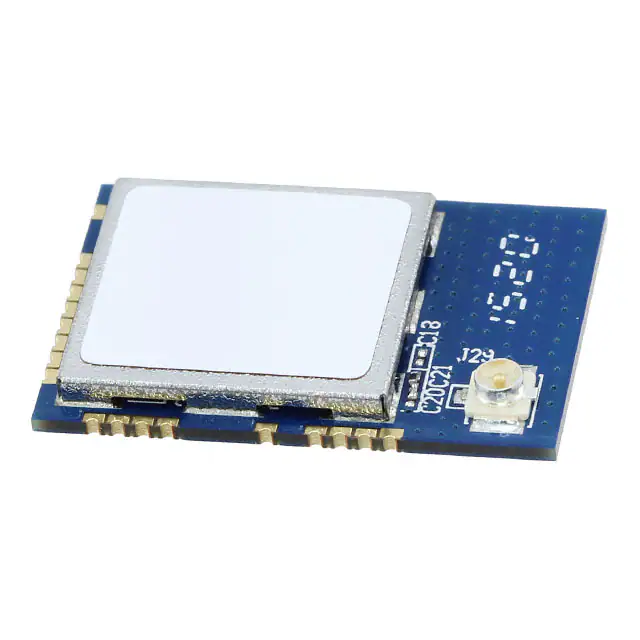

ATWINC1500-MR210UBRF TXRX MODULE WIFI U.FL SMD |
0 |
|
Datasheet | - | Module | Tray | Active | Not Verified | WiFi | 802.11b/g/n | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK | 2.4GHz | 72.2Mbps | 19.5dBm | -98dBm | I2C, SPI, UART | Antenna Not Included, U.FL | ATWINC1500B | 4MB Flash, 128kB RAM | 3V ~ 4.2V | 52.5mA ~ 70.1mA | 132mA ~ 294mA | Surface Mount | -40°C ~ 85°C |
|
BM78SPPS5NC2-0001AARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet | - | 33-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | 115.2kbps | 2dBm | -90dBm | I2C, UART | Integrated, Chip | - | - | 3.2V ~ 4.3V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
ATSAMR21G18-MR210UARF TXRX MODULE 802.15.4 SMD |
0 |
|
Datasheet | - | Module | Tray | Obsolete | Not Verified | 802.15.4 | Zigbee® | - | 2.4GHz | - | 3.5dBm | -98dBm | SPI, UART, USB | - | - | 256kB Flash | 1.8V ~ 3.6V | 10mA | 10mA | Surface Mount | -40°C ~ 85°C |
|

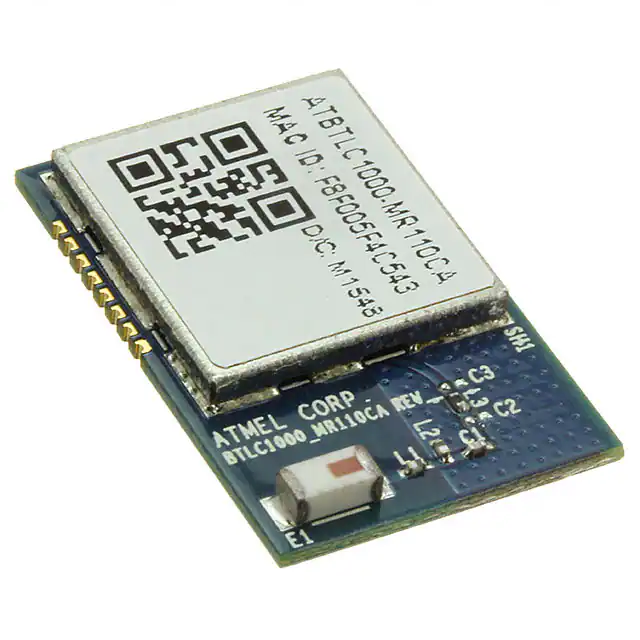

ATBTLC1000-MR110CARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet | - | 24-SMD Module | Tray | Obsolete | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz | - | 3.5dBm | -95dBm | I2C, SPI, UART | Integrated, Chip | - | 128kB ROM, 128kB RAM | 1.8V ~ 4.3V | 4.2mA | 3mA | Surface Mount | -40°C ~ 85°C |
|
ATBTLC1000-XR1100ARF TXRX MODULE BLUETOOTH SMD |
0 |
|
- |
- | Module | Tray | Obsolete | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz | - | 3dBm | -95dBm | I2C, SPI, UART | - | - | 128kB ROM, 128kB RAM | 4.3V | 5mA | 3mA | Surface Mount | -40°C ~ 85°C |
|

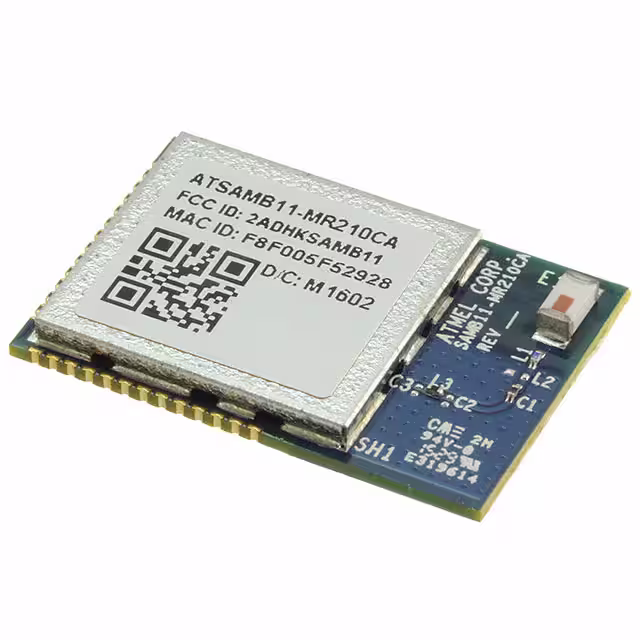

ATSAMB11-MR210CARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet | SmartConnect | Module | Tray | Obsolete | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz | - | 4dBm | -96dBm | I2C, SPI, UART | Integrated, Chip | - | 256kB Flash, 128kB ROM, 128kB RAM | 2.3V ~ 3.6V | 4mA | 3mA | Surface Mount | - |
|

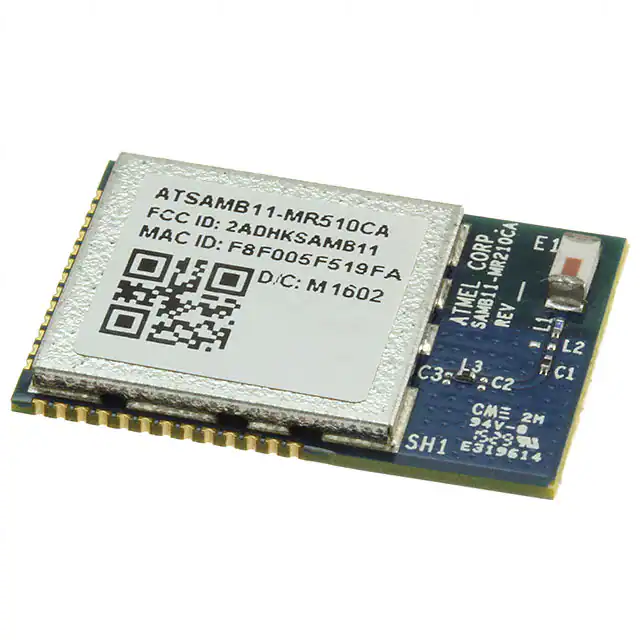

ATSAMB11-MR510CARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet | SmartConnect | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz | - | 4dBm | -96dBm | I2C, SPI, UART | Integrated, Chip | - | 256kB Flash, 128kB ROM, 128kB RAM | 2.3V ~ 3.6V | 4mA | 3mA | Surface Mount | - |
|
|
ATSAMB11-XR2100ARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet | SmartConnect | Module | Tray | Obsolete | Not Verified | Bluetooth | Bluetooth v4.1 | - | 2.4GHz | - | 4dBm | -96dBm | I2C, SPI, UART | Integrated, Chip | - | - | 2.3V ~ 3.6V | 4mA | 3mA | Surface Mount | - |
|

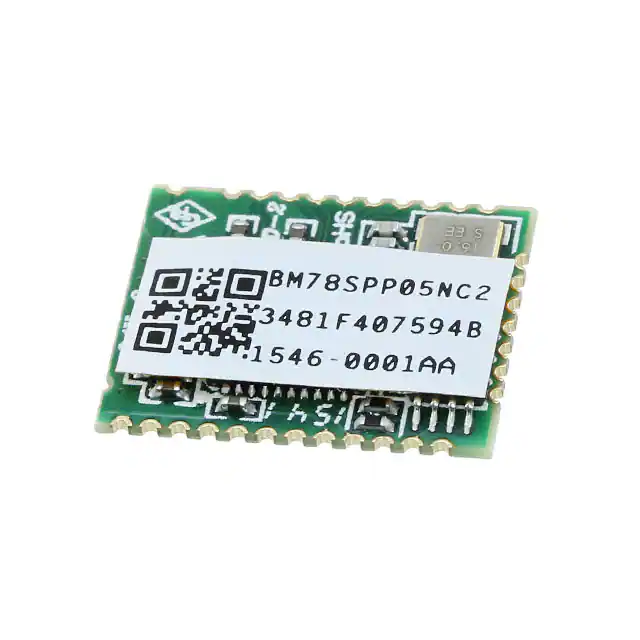

BM78SPP05NC2-0001AARF TXRX MODULE BLUETOOTH SMD |
0 |
|
Datasheet | - | 30-SMD Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 Dual Mode | - | 2.4GHz | 115.2kBaud | 2dBm | -90dBm | I2C, UART | Antenna Not Included | - | - | 3.2V ~ 4.3V | 37mA | 43mA | Surface Mount | -20°C ~ 70°C |
|
MRF24WN0MA-I/RM100RF TXRX MOD WIFI TH SMD |
0 |
|
Datasheet | - | 37-SMD Module | Tray | Obsolete | Not Verified | WiFi | 802.11b/g/n | BPSK, CCK, DSSS, QAM, QPSK | 2.4GHz | 54Mbps | 20.7dBm | -94dBm | SPI | Integrated, Trace | - | - | 3.15V ~ 3.45V | 61mA ~ 73mA | 196mA ~ 248mA | Surface Mount | -40°C ~ 85°C |
|
MRF24WN0MB-I/RM100RF TXRX MODULE WIFIW.FL SMD |
0 |
|
Datasheet | - | 37-SMD Module | Tray | Obsolete | Not Verified | WiFi | 802.11b/g/n | BPSK, CCK, DSSS, QAM, QPSK | 2.4GHz | 54Mbps | 20.7dBm | -95.7dBm | SPI | Antenna Not Included, W.FL | - | - | 3.15V ~ 3.45V | 61mA ~ 73mA | 196mA ~ 248mA | Surface Mount | -40°C ~ 85°C |
|
|
WT11I-A-HCI21001CRF TXRX MOD BT CHIP + U.FL SMD |
0 |
|
- |
- | 28-SMD Module | - | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | - | 3Mbps | 17dBm | -86dBm | PIO, SPI, UART, USB | Integrated, Chip + U.FL | BlueCore4 | - | 2.7V ~ 3.6V | 39mA | 54mA ~ 128mA | Surface Mount | -40°C ~ 85°C |
|
BP3599RF TXRX MODULE WIFI CHIP SMD |
0 |
|
Datasheet | - | Module | Bulk | Obsolete | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 72.2Mbps | 15dBm | - | UART | Integrated, Chip | - | 4MB Flash | 3.3V | 200mA | 300mA | Surface Mount | -40°C ~ 85°C |
|
AMS002RRF TXRX MOD BT TH SMD |
0 |
|
Datasheet | - | 27-SMD Module | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Bluetooth | Bluetooth v4.1 | DSSS, GFSK | 2.4GHz | 1Mbps | 4dBm | -94dBm | I2C, SPI, USART | Integrated, Trace | - | 8MB Flash | 1.8V ~ 3.6V | 26.6mA | 22mA | Surface Mount | -30°C ~ 85°C |
|
AMW006-3.4.0RRF TXRX MOD WIFI TH SMD |
0 |
|
- |
- | Module | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | WiFi | 802.11b/g/n | - | 2.4GHz | 65Mbps | 14dBm | -94dBm | SPI, UART | Integrated, Trace | BCM43362 | 1MB Flash | 3.3V | 5.7mA | 11.4mA | Surface Mount | -30°C ~ 85°C |
|
BM70BLE01FC2-0002AARF TXRX MODULE BLUETOOTH SMD |
0 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 2dBm | -90dBm | I2C, SPI, UART | Antenna Not Included | - | 256kB Flash, 32kB ROM, 24kB SRAM | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -20°C ~ 70°C |
|
BM70BLES1FC2-0002AARF TXRX MOD BLUETOOTH CHIP SMD |
0 |
|
Datasheet | - | Module | Tray | Active | Not Verified | Bluetooth | Bluetooth v5.0 | - | 2.4GHz | - | 2dBm | -90dBm | I2C, SPI, UART | Integrated, Chip | - | 256kB Flash, 32kB ROM, 24kB SRAM | 1.9V ~ 3.6V | 13mA | 13mA | Surface Mount | -20°C ~ 70°C |
|
|
WT11U-A-AI4RF TXRX MOD BT CHIP + U.FL SMD |
0 |
|
- |
- | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | - | 3Mbps | 17dBm | -88dBm | SPI, UART, USB | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 36mA | 88mA ~ 138mA | Surface Mount | -40°C ~ 85°C |
|
|
WT11U-A-AI5RF TXRX MOD BT CHIP + U.FL SMD |
0 |
|
Datasheet | - | Module | Strip | Obsolete | Not Verified | Bluetooth | Bluetooth v2.1 +EDR, Class 1 | - | - | 3Mbps | 17dBm | -88dBm | SPI, UART, USB | Integrated, Chip + U.FL | - | - | 3V ~ 3.6V | 36mA | 88mA ~ 138mA | Surface Mount | -40°C ~ 85°C |
