RF Mixers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Frequency | Number of Mixers | Gain | Noise Figure | Secondary Attributes | Current - Supply | Voltage - Supply | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC688LP4ETRIC MMIC MIXER BICMOS 24-QFN |
0 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | LTE, WiMax | 2GHz ~ 2.7GHz | 1 | - | 8dB | Up/Down Converter | 140mA | 4.75V ~ 5.25V | Surface Mount | 24-QFN (4x4) |
|
|
HMC951LP4EIC MMIC IQ DOWNCONVERTER 24-QFN |
0 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | General Purpose | 5.6GHz ~ 8.6GHz | 1 | 13dB | 2dB | Down Converter | 55mA | 5V | Surface Mount | 24-QFN (4x4) |
|

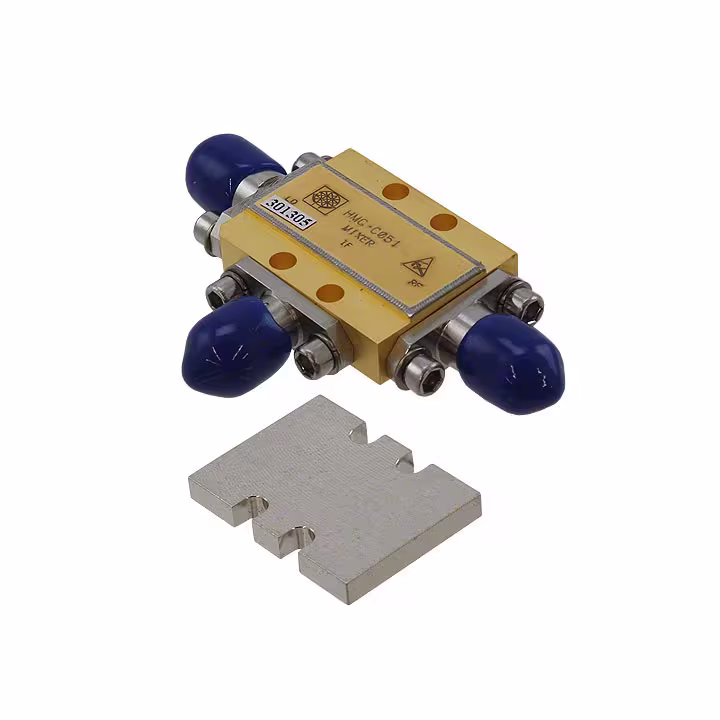

HMC-C051MODULE MMIC BROADBAND MIXER |
0 |
|
Datasheet | - | Module, SMA Connectors | Bulk | Obsolete | General Purpose | 11GHz ~ 20GHz | 1 | - | 6dB ~ 7.5dB | SMA Connectors | - | - | Connector Mount | Module |
|
BGX7220HN/1,518IC DOWN MIXER DUAL RCVR 36HVQFN |
0 |
|
Datasheet | - | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 700MHz ~ 950MHz | 2 | 8.2dB | 9.5dB | Down Converter | 310mA | 4.75V ~ 5.25V | Surface Mount | 36-HVQFN (6x6) |
|
ADRF6620ACPZ-R7IC MIXER .7-2700MHZ 48LFCSP |
0 |
|
Datasheet | - | 48-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Obsolete | General Purpose | 700MHz ~ 2.7GHz | 1 | 15dB | - | Integrated PLL and VCO | - | 4.75V ~ 5.25V | Surface Mount | 48-LFCSP-WQ (7x7) |
|
HMC773LC3BTRIC MIXER 6-26GHZ DUAL 12-QFN |
0 |
|
Datasheet | - | 12-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 6GHz ~ 26GHz | 1 | - | - | Up/Down Converter | - | - | Surface Mount | 12-CSMT (3x3) |
|
HMC663LC3TRIC MMIC MIXER LO/IF AMP 16-QFN |
0 |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 6GHz ~ 12GHz | 1 | - | 10dB | Up/Down Converter | - | - | Surface Mount | 16-CSMT (3x3) |
|
|
HMC554LC3BGAAS MMIC FUNDAMENTAL |
0 |
|
- |
- | 12-VFCQFN Exposed Pad | Bag | Obsolete | - | - | - | - | - | - | - | - | Surface Mount | 12-CSMT (3x3) |
|
HMC525LC4TRIC MMIC IQ MIXER 4-8.5GHZ 24-QFN |
0 |
|
Datasheet | - | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 4GHz ~ 8.5GHz | 1 | - | - | - | - | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC787LC3BTRIC MIXER GAAS 3-10GHZ 12-QFN |
0 |
|
Datasheet | - | 12-CLCC Exposed Pad | Tape & Reel (TR) | Obsolete | LTE, WiMax | 3GHz ~ 10GHz | 1 | - | 9dB | Up/Down Converter | - | - | Surface Mount | 12-CLCC (3x3) |
|
TFF1012HN/N1,135IC DOWNCONVERTER 16DHVQFN |
0 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Ku-Band | 10.7GHz ~ 12.75GHz | 1 | 30dB | 9dB | - | 52mA | 5V | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
|
TFF1013HN/N1,135IC DOWNCONVERTER 16DHVQFN |
0 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Ku-Band | 10.7GHz ~ 12.75GHz | 1 | 33dB | 9dB | Down Converter | 52mA | 5V | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
TFF1012HN/N1,115IC DOWNCONVERTER 16DHVQFN |
0 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Ku-Band | 10.7GHz ~ 12.75GHz | 1 | 30dB | 9dB | - | 52mA | 5V | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
|
TFF1013HN/N1,115IC DOWNCONVERTER 16DHVQFN |
0 |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Ku-Band | 10.7GHz ~ 12.75GHz | 1 | 33dB | 9dB | Down Converter | 52mA | 5V | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
|
HMC1042LC4IC MMIC IQ MIXER GAAS 24SMD |
0 |
|
Datasheet | - | 24-TFQFN Exposed Pad | Strip | Obsolete | General Purpose | 15GHz ~ 33.5GHz | 2 | - | - | Up Converter | - | - | Surface Mount | 24-QFN (4x4) |
|
HMC1043LC3IC MMIC TRIPLE MIXER 16SMD |
0 |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Strip | Obsolete | General Purpose | 29GHz ~ 32GHz | 1 | - | - | Up/Down Converter | - | - | Surface Mount | 16-CSMT (3x3) |
|
|
HMC1048LC3BIC MIXER DBL BALANCED 12SMD |
0 |
|
Datasheet | - | 12-VFCQFN Exposed Pad | Strip | Obsolete | General Purpose | 2GHz ~ 18GHz | 1 | - | - | Down Converter | - | - | Surface Mount | 12-CSMT (3x3) |
|
|
HMC144LC4IC MMIC MIXER DBL-BAL 24SMD |
0 |
|
Datasheet | - | 24-TFQFN Exposed Pad | Strip | Obsolete | General Purpose | 6GHz ~ 20GHz | 1 | - | 11dB | Up/Down Converter | - | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC258LC3BIC MIXER SUB-HARMONIC 12SMD |
0 |
|
Datasheet | - | 12-VFCQFN Exposed Pad | Strip | Obsolete | General Purpose | 14.5GHz ~ 19.5GHz | 1 | - | 10dB | - | 42mA | 5V | Surface Mount | 12-CSMT (3x3) |
|
|
HMC329LC3BIC MIXER FUNDAMENTAL 12SMD |
0 |
|
Datasheet | - | 12-VFCQFN Exposed Pad | Strip | Obsolete | General Purpose | 24GHz ~ 32GHz | 1 | - | 10.5dB | Up/Down Converter | - | - | Surface Mount | 12-CSMT (3x3) |
