Resistor Networks, Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Circuit Type | Resistance (Ohms) | Tolerance | Number of Resistors | Resistor Matching Ratio | Resistor-Ratio-Drift | Number of Pins | Power Per Element | Temperature Coefficient | Operating Temperature | Grade | Qualification | Applications | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT5400AIMS8E-1#PBFRES ARRAY 4 RES 10K OHM 8TSSOP |
377 |
|
Datasheet | LT5400 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Isolated | 10k | ±7.5% | 4 | ±0.0125% | ±0.2ppm/°C | 8 | 800mW | ±25ppm/°C | -40°C ~ 85°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | 8-MSOP-EP | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
|
LT5400AHMS8E-1#PBFRES ARRAY 4 RES 10K OHM 8TSSOP |
270 |
|
Datasheet | LT5400 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Isolated | 10k | ±7.5% | 4 | ±0.0125% | ±0.2ppm/°C | 8 | 800mW | ±25ppm/°C | -40°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | 8-MSOP-EP | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
VSSR1603101JUFRES ARRAY 8 RES 100 OHM 16SSOP |
1,401 |
|
Datasheet | VSSR | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Isolated | 100 | ±5% | 8 | - | - | 16 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SSOP | 0.193" L x 0.154" W (4.90mm x 3.91mm) | 0.069" (1.76mm) |
|
VSOR1601103JTFTHIN FILM RES ARRAY 16 PIN BUSSE |
3,835 |
|
Datasheet | VSOR | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Bussed | 10k | ±5% | 15 | - | - | 16 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.152" W (9.91mm x 3.86mm) | 0.069" (1.76mm) |
|
|
VSOR1603102JTFTHIN FILM RES ARRAY 16 PIN ISOLA |
1,564 |
|
Datasheet | VSOR | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 1k | ±5% | 8 | - | - | 16 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.152" W (9.91mm x 3.86mm) | 0.069" (1.76mm) |
|
|
VSOR1603103JTFTHIN FILM RES ARRAY 16 PIN ISOLA |
1,093 |
|
Datasheet | VSOR | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 10k | ±5% | 8 | - | - | 16 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.152" W (9.91mm x 3.86mm) | 0.069" (1.76mm) |
|
|
VSSR1603103JUFRES ARRAY 8 RES 10K OHM 16SSOP |
1,981 |
|
Datasheet | VSSR | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Isolated | 10k | ±5% | 8 | - | - | 16 | 100mW | ±100ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SSOP | 0.193" L x 0.154" W (4.90mm x 3.91mm) | 0.069" (1.76mm) |
|
ORNTA5002AT1RES ARRAY 4 RES 50K OHM 8SOIC |
4,404 |
|
Datasheet | ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 50k | ±0.1% | 4 | ±0.05% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|
NOMCT16031003AT1RES ARRAY 8 RES 100K OHM 16SOIC |
10,034 |
|
Datasheet | NOMC | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 100k | ±0.1% | 8 | ±0.025% | ±5ppm/°C | 16 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.154" W (9.91mm x 3.91mm) | 0.063" (1.60mm) |
|
|
ORNTA1002BT1RES ARRAY 4 RES 10K OHM 8SOIC |
1,848 |
|
Datasheet | ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 10k | ±0.1% | 4 | ±0.1% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|
|
ORNTA2001AT1RES ARRAY 4 RES 2K OHM 8SOIC |
5,910 |
|
Datasheet | ORN | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 2k | ±0.1% | 4 | ±0.05% | ±5ppm/°C | 8 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-SOIC | 0.194" L x 0.157" W (4.93mm x 3.99mm) | 0.068" (1.73mm) |
|

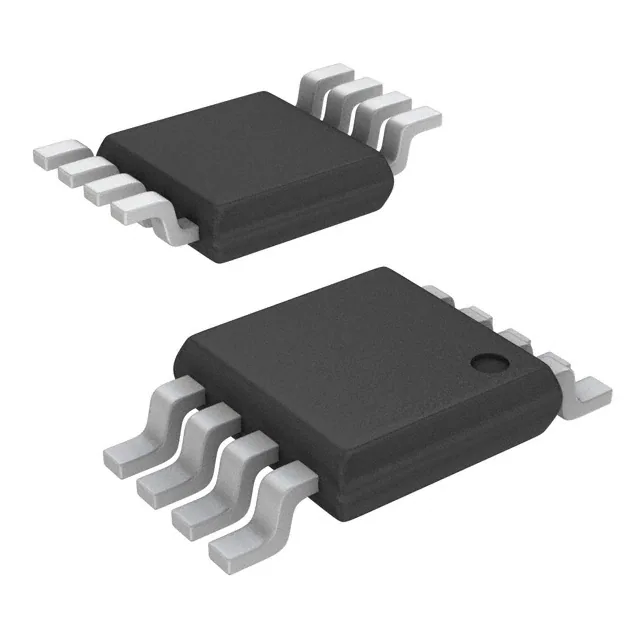

MORNTA2502AT5RES ARRAY 4 RES 25K OHM 8TSSOP |
1,568 |
|
Datasheet | MORN | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Isolated | 25k | ±0.1% | 4 | ±0.05% | ±1ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-MSOP | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
|
MORNTA1002AT5RES ARRAY 4 RES 10K OHM 8TSSOP |
469 |
|
Datasheet | MORN | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Isolated | 10k | ±0.1% | 4 | ±0.05% | ±1ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-MSOP | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
|
MORNTA1001AT5RES ARRAY 4 RES 1K OHM 8TSSOP |
2,973 |
|
Datasheet | MORN | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Isolated | 1k | ±0.1% | 4 | ±0.05% | ±1ppm/°C | 8 | 50mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 8-MSOP | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.043" (1.10mm) |
|
MPMT5002AT1RES NTWRK 2 RES 25K, 25K OHM |
6,121 |
|
Datasheet | MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 25k, 25k | ±0.1% | 2 | ±0.05% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
|
MPMT2003AT1RES NTWRK 2 RES 100K, 100K OHM |
2,760 |
|
Datasheet | MPM | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 100k, 100k | ±0.1% | 2 | ±0.05% | ±2ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
|
TDPT16031002DUFTHIN FILM RES DUAL-IN-LINE THROU |
167 |
|
Datasheet | TDP | 16-DIP (0.300", 7.62mm) | Tube | Active | Isolated | 10k | ±0.5% | 8 | ±0.1% | ±5ppm/°C | 16 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Through Hole | 16-DIP | 0.755" L x 0.250" W (19.18mm x 6.35mm) | 0.190" (4.83mm) |
|
|
NOMCT16035001AT1RES ARRAY 8 RES 5K OHM 16SOIC |
10,810 |
|
Datasheet | NOMC | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 5k | ±0.1% | 8 | ±0.025% | ±5ppm/°C | 16 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.154" W (9.91mm x 3.91mm) | 0.063" (1.60mm) |
|
|
NOMCT16032001AT1RES ARRAY 8 RES 2K OHM 16SOIC |
2,461 |
|
Datasheet | NOMC | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Isolated | 2k | ±0.1% | 8 | ±0.025% | ±5ppm/°C | 16 | 100mW | ±25ppm/°C | -55°C ~ 125°C | - | - | - | Surface Mount | 16-SOIC | 0.390" L x 0.154" W (9.91mm x 3.91mm) | 0.063" (1.60mm) |
|
|
MPMA10015001AT1RES NETWORK 2 RES 1K, 5K OHM |
1,743 |
|
Datasheet | MPMA | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | Voltage Divider | 1k, 5k | ±0.1% | 2 | ±0.05% | ±3ppm/°C | 3 | 100mW | ±25ppm/°C | -55°C ~ 155°C | Automotive | AEC-Q200 | Voltage Divider (TCR Matched) | Surface Mount | SOT-23 | 0.113" L x 0.051" W (2.86mm x 1.30mm) | 0.044" (1.12mm) |
