PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLD60P040XFFPTC RESET FUSE 60V 400MA RADIAL |
3,097 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
RLD60P050XFFPTC RESET FUSE 60V 500MA RADIAL |
8,243 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P065XFFPTC RESET FUSE 60V 650MA RADIAL |
5,926 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 650 mA | 1.3 A | 40 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.382" Dia x 0.122" T (9.70mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
RLD60P075XFFPTC RESET FUSE 60V 750MA RADIAL |
2,902 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
RLD60P090XFFPTC RESET FUSE 60V 900MA RADIAL |
2,734 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" Dia x 0.118" T (11.70mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
|
RLD60P110XFFPTC RESET FUSE 60V 1.1A RADIAL |
2,963 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.512" Dia x 0.122" T (13.00mm x 3.10mm) | 0.709" (18.00mm) | - | 0.201" (5.10mm) |
|
|
RLD60P135XFFPTC RESET FUSE 60V 1.35A RADIAL |
4,612 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.122" T (14.50mm x 3.10mm) | 0.772" (19.60mm) | - | 0.201" (5.10mm) |
|
|
RLD60P160XFFPTC RESET FUSE 60V 1.6A RADIAL |
4,172 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.122" T (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
RLD60P185XFFPTC RESET FUSE 60V 1.85A RADIAL |
5,025 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.122" T (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
|
RLD60P250XFFPTC RESET FUSE 60V 2.5A RADIAL |
2,608 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia x 0.122" T (21.30mm x 3.10mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
RLD60P300XFFPTC RESET FUSE 60V 3A RADIAL |
3,965 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
RLD60P375XFFPTC RESET FUSE 60V 3.75A RADIAL |
2,005 |
|
Datasheet | Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
|
AHRF250PTC RESET FUSE 16V 2.5A RADIAL |
9,282 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bulk | Active | Polymeric | 16V | 2.5 A | - | 100 A | - | - | - | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | - | - | - | - |
|
LR4-73XFPTC RESET FUSE 730MA STRAP |
7,773 |
|
- |
Strap | PolySwitch®, LR4 | Bulk | Active | Polymeric | - | 730 mA | - | 100 A | - | - | - | - | -40°C ~ 85°C | - | - | - | User Defined | 1.831" L x 0.323" W (46.50mm x 8.20mm) | - | 0.039" (1.00mm) | - |
|
LVR040K-1PTC RESET FUSE 240V 400MA RADIAL |
9,021 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bulk | Active | Polymeric | 240V (265V Int) | 400 mA | 900 mA | 5.5 A | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.823" (20.90mm) | - | 0.200" (5.08mm) |
|
|
TS250-130F-RC-2PTC RESET FUSE 60V 130MA 2SMD |
3,787 |
|
Datasheet | 2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2 s | 7 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|

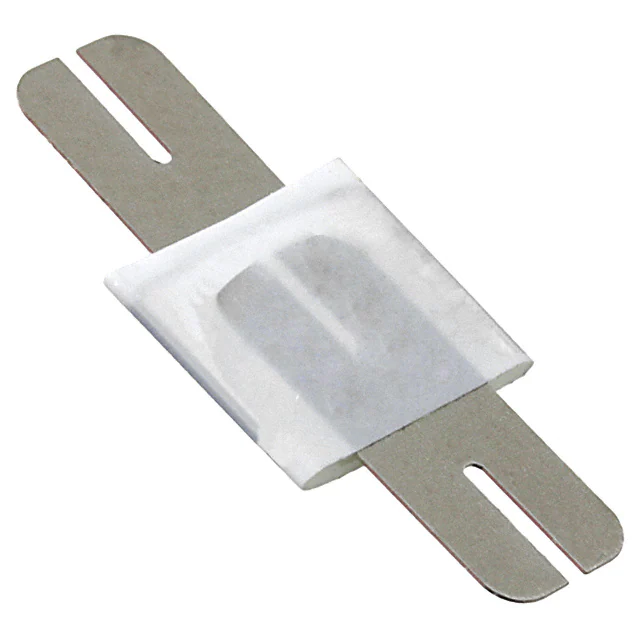

VTP170SSFPTC RESET FUSE 16V 1.7A STRAP |
5,871 |
|
Datasheet | Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 5 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.648" L x 0.283" W (16.45mm x 7.20mm) | - | 0.032" (0.80mm) | - |
|
|
VTP/200GFPTC RESET FUSE 16V 2A STRAP |
7,994 |
|
- |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2 A | 4.7 A | 100 A | 5 s | 22 mOhms | 78 mOhms | - | - | - | - | - | User Defined | 0.909" L x 0.177" W (23.10mm x 4.50mm) | - | 0.032" (0.80mm) | - |
|
|
06R155BUPTC RESET FUSE 6V 1.55A RADIAL |
4,359 |
|
Datasheet | Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 6V | 1.55 A | 2.7 A | 40 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
|
06R120BUPTC RESET FUSE 6V 1.2A RADIAL |
3,815 |
|
Datasheet | Radial, Disc | POLY-FUSE®, USBR | Bulk | Obsolete | Polymeric | 6V | 1.2 A | 2 A | 40 A | 500 ms | 65 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.118" T (6.90mm x 3.00mm) | 0.449" (11.40mm) | - | 0.201" (5.10mm) |
