PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RF4510-000LR4-550LF |
9,983 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LR4-700XHFPTC RESET FUSE 20V 7A STRAP |
7,695 |
|
- |
Strap | PolySwitch®, LR4 | Bulk | Obsolete | Polymeric | 20V | 7 A | - | 100 A | 5 s | - | - | - | - | - | - | - | User Defined | - | - | - | - |
|
|
TD0710-B33-2JBPTC RESET FUSE |
5,836 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
16R185BPRPTC RESET FUSE 16V 1.85A RADIAL |
9,954 |
|
Datasheet | Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Obsolete | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
MINISMDC200-2PTC RESET FUSE 8V 2A 1812 |
3,361 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 2 A | 4 A | 100 A | 5 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.048" (1.22mm) | - |
|
AGRF1400-2PTC RESET FUSE 16V 14A RADIAL |
6,141 |
|
Datasheet | Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 14 A | 27.3 A | 100 A | 9 s | 2.2 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
MINISMD050-2PTC RESET FUSE 500MA 1812 |
4,051 |
|
- |
1812 (4532 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Obsolete | - | - | 500 mA | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
|
MINISMD075-2PTC RESET FUSE 750MA 1812 |
7,018 |
|
- |
1812 (4532 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Obsolete | - | - | 750 mA | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
MICROSMD110-2PTC RESET FUSE 6V 1.1A 1210 |
9,635 |
|
Datasheet | 1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 200 ms | 70 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.019" (0.48mm) | - |
|
NANOSMDM050-2POLYSWITCH 0.50A RESET FUSE SMD |
7,360 |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 700 mOhms | - | - | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.047" (1.20mm) | - |
|
|
NANOSMDM075-2POLYSWITCH 0.75A RESET FUSE SMD |
5,899 |
|
Datasheet | 1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 100 mOhms | 290 mOhms | - | - | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.047" (1.20mm) | - |
|

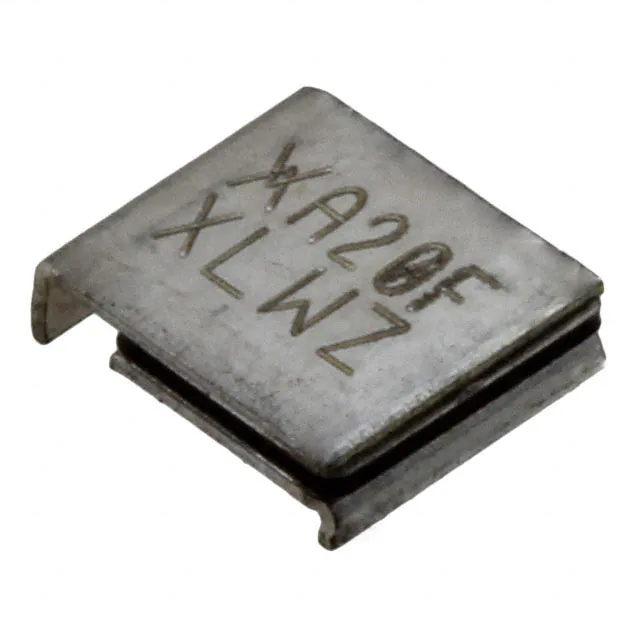

SMD200F-2018-2PTC RESET FUSE 6V 2A 2SMD |
7,060 |
|
Datasheet | 2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4.2 A | 40 A | 3 s | 48 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.180" W (5.08mm x 4.58mm) | - | 0.060" (1.52mm) | - |
|
RXEF135K-APPTC RESET FUSE 72V 1.35A RADIAL |
54 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.118" T (13.58mm x 3.00mm) | 0.776" (19.70mm) | - | 0.199" (5.05mm) |
|
|
2920L260/33DR-APTC 33V POLYFUSE SURF MOUNT 2920 |
4,795 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 2.6 A | 5 A | 40 A | 15 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.071" (1.80mm) | - |
|
|
1210L035/30WR-APTC 30V POLYFUSE SURF MOUNT 1210 |
5,770 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 700 mA | 40 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
RXEF160-APPTC RESET FUSE 72V 1.6A RADIAL |
1 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.118" T (16.30mm x 3.00mm) | 0.819" (20.80mm) | - | 0.199" (5.05mm) |
|
2016L300/16DRPTC RESET FUSE 16V 3A 2016 |
8,646 |
|
Datasheet | 2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 3 A | 5 A | 40 A | 10 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.061" (1.55mm) | - |
|
|
SMDC050F-2PTC RESET FUSE 60V 500MA 2920 |
8,830 |
|
Datasheet | 2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 10 A | 4 s | 150 mOhms | 1.2 Ohms | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.035" (0.90mm) | - |
|
|
MINISMDC035-2PTC RESET FUSE 6V 350MA 1210 |
4,634 |
|
- |
1210 (3225 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | - | 6V | 350 mA | 700 mA | 40 A | 0.1 s | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.62mm) | - |
|
30R500UPTC RESET FUSE 30V 5A RADIAL |
6,951 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Bulk | Obsolete | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.402" (10.20mm) |
