PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-180PTC RESET FUSE 100V 180MA RADIAL |
108 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bulk | Active | Polymeric | 100V (250V Int) | 180 mA | 650 mA | 10 A | 2 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" Dia x 0.150" T (9.00mm x 3.80mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
LVR025S-1PTC RESET FUSE 240V 250MA RADIAL |
400 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.200" (5.08mm) |
|
TRF250-145UPTC RESET FUSE 60V 145MA RADIAL |
540 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 4 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
AHRF450S-1PTC RESET FUSE 16V 4.5A RADIAL |
1,000 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 4.5 A | 8.7 A | 100 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" Dia x 0.122" T (10.40mm x 3.10mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|
RKEF375KPTC RESET FUSE 60V 3.75A RADIAL |
806 |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.992" (25.20mm) | - | 0.199" (5.05mm) |
|

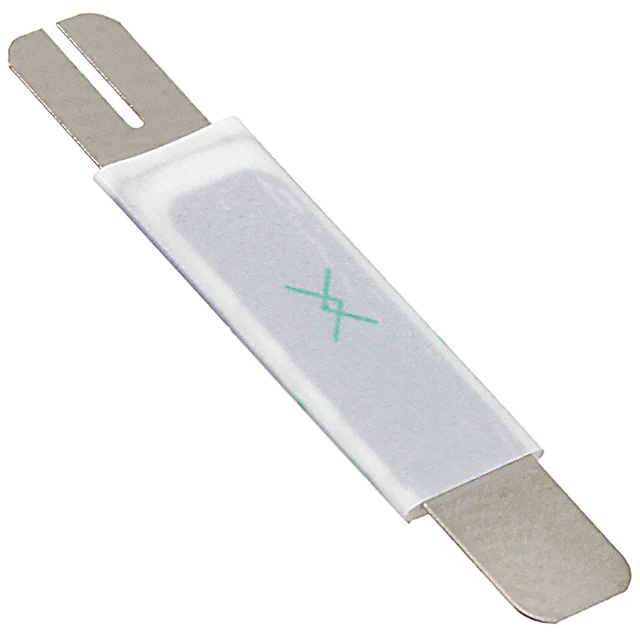

VTP210SFPTC RESET FUSE 16V 2.1A STRAP |
688 |
|
Datasheet | Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.909" L x 0.209" W (23.10mm x 5.30mm) | - | 0.032" (0.80mm) | - |
|
PICOASMDC010S-2PTC RESET FUSE 15V 100MA 0805 |
504 |
|
Datasheet | 0805 (2012 Metric) | PolySwitch®, picoASMDC | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 20 A | 600 ms | 1.5 Ohms | 11 Ohms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.040" (1.02mm) | - |
|
AHRF550PTC RESET FUSE 16V 5.5A RADIAL |
219 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 13 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.199" (5.05mm) |
|
60R075XUPTC RESET FUSE 60V 750MA RADIAL |
459 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.122" T (10.20mm x 3.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
LVR033KPTC RESET FUSE 240V 330MA RADIAL |
214 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 330 mA | 740 mA | 4.5 A | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.150" W (11.40mm x 3.80mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
AHRF300PTC RESET FUSE 16V 3A RADIAL |
500 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 3 A | 6.5 A | 100 A | 5 s | 29 mOhms | 79 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.199" (5.05mm) |
|
250R080UPTC RESET FUSE 60V 80MA RADIAL |
181 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 250R | Bulk | Active | Polymeric | 60V (250V Int) | 80 mA | 160 mA | 3 A | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.228" Dia x 0.181" T (5.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.201" (5.10mm) |
|
16R500GUPTC RESET FUSE 16V 5A RADIAL |
624 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 16R | Bulk | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
RGEF800KPTC RESET FUSE 16V 8A RADIAL |
362 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Bag | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|
RUEF600KPTC RESET FUSE 30V 6A RADIAL |
225 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
TRF600-150-RBPTC RESET FUSE 250V 150MA RADIAL |
123 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RXEF250KPTC RESET FUSE 72V 2.5A RADIAL |
722 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.118" T (19.93mm x 3.00mm) | 1.032" (26.20mm) | - | 0.400" (10.15mm) |
|
AHRF650PTC RESET FUSE 16V 6.5A RADIAL |
153 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 6.5 A | 7 A | 100 A | 7 s | 9 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.199" (5.05mm) |
|
RHEF700PTC RESET FUSE 16V 7A RADIAL |
280 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.199" (5.05mm) |
|
LR4-380XFPTC RESET FUSE 15V 3.8A STRAP |
598 |
|
Datasheet | Strap | PolySwitch®, LR4 | Bulk | Active | Polymeric | 15V | 3.8 A | 8.3 A | 100 A | 5 s | 13 mOhms | 37 mOhms | - | - | - | - | - | User Defined | 1.339" L x 0.205" W (34.00mm x 5.20mm) | - | 0.039" (1.00mm) | - |
