PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MINIASMDC200F/16-2PTC RESET FUSE 16V 2A 1812 |
2,082 |
|
Datasheet | 1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 4 A | 40 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.048" (1.22mm) | - |
|
RKEF400-2RKEF400-2 |
3,988 |
|
Datasheet | Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 4 A | 8 A | 40 A | 24 s | 14 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.400" (10.15mm) |
|
RGEF1400-2PTC RESET FUSE 16V 14A RADIAL |
1,119 |
|
Datasheet | Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.114" W (23.50mm x 2.90mm) | 1.098" (27.90mm) | - | 0.400" (10.15mm) |
|
RHEF900PTC RESET FUSE 16V 9A RADIAL |
199 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.199" (5.05mm) |
|

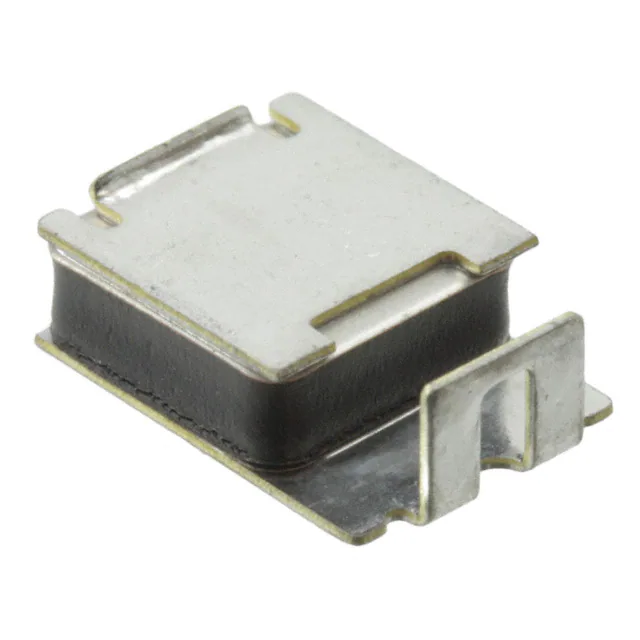

TS250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
7,437 |
|
Datasheet | 2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2.5 s | 6.5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
|
RUEF900KPTC RESET FUSE 30V 9A RADIAL |
232 |
|
Datasheet | Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 9 A | 18 A | 100 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.949" L x 0.118" W (24.10mm x 3.00mm) | 1.220" (31.00mm) | - | 0.400" (10.15mm) |
|
RHEF1000PTC RESET FUSE 16V 10A RADIAL |
385 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
TRF600-160-2PTC RESET FUSE 250V 160MA RADIAL |
126 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Tape & Reel (TR) | Active | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 60 A | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.200" (5.08mm) |
|
TS250-130F-RB-2PTC RESET FUSE 60V 130MA 2SMD |
7,150 |
|
Datasheet | 2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 1.5 s | 9 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
LVR100K-240PTC RESET FUSE |
135 |
|
Datasheet | Radial, Disc | LVR | Bulk | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | 334 mOhms | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia (18.70mm) | 1.134" (28.80mm) | - | 0.400" (10.15mm) |
|
TRF600-400PTC RESET FUSE 60V 400MA RADIAL |
287 |
|
Datasheet | Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 60V (600V Int) | 400 mA | 1 A | 60 A | 10 s | 950 mOhms | 1.9 Ohms | - | 0°C ~ 85°C | - | - | - | Through Hole | 0.583" L x 0.181" W (14.80mm x 4.60mm) | 0.516" (13.10mm) | - | 0.200" (5.08mm) |
|
60R135XMRPTC RESET FUSE 60V 1.35A RADIAL |
1,998 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.535" Dia x 0.122" T (13.58mm x 3.10mm) | 0.780" (19.80mm) | - | 0.201" (5.10mm) |
|
RXEF375-1PTC RESET FUSE 72V 3.75A RADIAL |
157 |
|
Datasheet | Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.071" Dia x 0.118" T (27.20mm x 3.00mm) | 1.252" (31.80mm) | - | 0.400" (10.15mm) |
|
60R160XMRPTC RESET FUSE 60V 1.6A RADIAL |
835 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 60R | Cut Tape (CT) | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.600" Dia x 0.122" T (15.24mm x 3.10mm) | 0.850" (21.60mm) | - | 0.201" (5.10mm) |
|
30R800UHPTC RESET FUSE 30V 8A RADIAL |
1,244 |
|
Datasheet | Radial, Disc | POLY-FUSE®, 30R | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.118" W (21.60mm x 3.00mm) | 1.224" (31.10mm) | - | 0.402" (10.20mm) |
|
AHRL1000PTC RESET FUSE 10A 16V RAD |
250 |
|
Datasheet | Radial, Disc | PolySwitch®, AHRL | Bulk | Active | Polymeric | 16V | 10 A | 20 A | 100 A | 10 s | 4.2 mOhms | 6.8 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.567" L x 0.142" W (14.40mm x 3.60mm) | 0.882" (22.40mm) | - | 0.400" (10.15mm) |
|
TSV250-130F-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
1,850 |
|
Datasheet | 2-SMD | PolySwitch®, TSV250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|
LVR100S-240-2PTC RESET FUSE 240V 1A RADIAL |
1,130 |
|
Datasheet | Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 1 A | 2 A | 10 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.736" Dia x 0.201" T (18.70mm x 5.10mm) | 0.961" (24.40mm) | - | 0.400" (10.15mm) |
|
1210L200SLYRPTC RESET FUSE 6V 2A 1210 |
13,112 |
|
Datasheet | 1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 3 s | 5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
RHEF1400PTC RESET FUSE 16V 14A RADIAL |
148 |
|
Datasheet | Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 14 A | 27 A | 100 A | 13 s | 3 mOhms | 9 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
