Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP3H6115A6T1SENSOR 16.68PSIA 0.13" 2.8V SSOP |
0 |
|
Datasheet | - | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.12 V ~ 2.8 V | ±1.5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MP3H6115A6USENSOR 16.68PSIA 0.13" 2.8V SSOP |
0 |
|
Datasheet | - | 8-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.12 V ~ 2.8 V | ±1.5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MP3H6115AC6USENSOR 16.68PSIA 0.13" 2.8V SSOP |
0 |
|
Datasheet | - | 8-SOIC (0.335", 8.50mm Width), Top Port | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.12 V ~ 2.8 V | ±1.5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPX2301DT1SENSOR 5.8PSID .003006V |
0 |
|
Datasheet | MPX2301 | 4-SSIP Module | Tape & Reel (TR) | Obsolete | Board Mount | Differential | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 3.006 mV (6V) | ±1.5% | 6V ~ 10V | - | No Port | Temperature Compensated | PC Pin | 125PSI (861.84kPa) | 15°C ~ 40°C | - | - | Through Hole | - |
|
MPX5050GP1SENSOR 7.25PSIG 0.19" 4.7V |
0 |
|
Datasheet | MPX5050 | 6-SIP Module | Tray | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPXH6101AC6T1SENSOR 15.23PSIA 0.13" 5V 8SSOP |
0 |
|
Datasheet | MPXH6101A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) | Analog Voltage | 0.2 V ~ 5 V | ±1.72% | 4.75V ~ 5.5V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXH6101AC6USENSOR 15.23PSIA 0.13" 5V 8SSOP |
0 |
|
Datasheet | MPXH6101A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) | Analog Voltage | 0.2 V ~ 5 V | ±1.72% | 4.75V ~ 5.5V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXH6300A6T1SENSOR 44.09PSIA 4.9V 8SSOP |
0 |
|
Datasheet | MPXH6300A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.9PSI ~ 44.09PSI (20kPa ~ 304kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.74V ~ 5.46V | - | No Port | Temperature Compensated | Gull Wing | 174.05PSI (1200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPXM2051GSSENSOR 7.25PSIG 0.12" .04V 5MPAK |
0 |
|
Datasheet | MPXM2051G | 5-SMD Module, Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±0.3% | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
|
MPXV2202GC6T1SENSOR 29.01PSIG 0.13" .04V |
0 |
|
Datasheet | MPX2202 | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
MPXV5004GPT1SENSOR 0.57PSIG 0.13" 4.9V 8SOP |
0 |
|
Datasheet | MPXV5004 | 8-SMD, Gull Wing, Side Port | Tape & Reel (TR) | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | - | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | 8-SOP |
|
MPXV7007GC6T1SENSOR 1.02PSIC 0.13" 4.5V |
0 |
|
- |
MPXV7007 | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXV2202GC6USENSOR 29.01PSIG 0.13" .04V |
0 |
|
Datasheet | MPX2202 | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXV7025GC6T1PRESSURE SENSOR AXIAL PORT 8-SOP |
0 |
|
Datasheet | MPXV7025 | 8-SMD, Gull Wing, Top Port | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | PCB | - | - | - | - | Surface Mount | - |
|
|
MPXV6115VC6T1SENSOR 16.68PSI 0.13" 4.6V |
0 |
|
Datasheet | MPXV6115V | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Vacuum | -16.68PSI (-115kPa) | Analog Voltage | 0.2 V ~ 4.6 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXHZ6250A6T1SENSOR 36.26PSIA 4.9V 8SSOP |
0 |
|
Datasheet | MPXHZ6250A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|

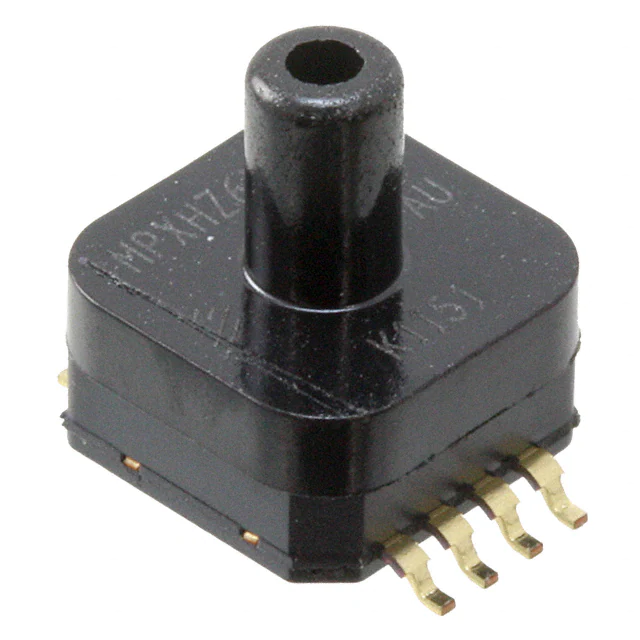

MPXHZ6130AC6USENSOR 18.85PSIA 0.13" 4.8V SSOP |
0 |
|
Datasheet | MPXHZ6130A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 18.85PSI (15kPa ~ 130kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXAZ4250AC6T1SENSOR 36.26PSIA 0.13" 4.9V |
0 |
|
Datasheet | MPXAZ4250A | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Obsolete | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPVZ5004GC6USENSOR 0.57PSIG 0.13" 4.9V |
0 |
|
Datasheet | MPVZ5004G | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C | - | - | Surface Mount | - |
|
MPXV7025GPSENSOR 3.63PSIC 0.13" 4.7V 8SOP |
0 |
|
Datasheet | MPXV7025 | 8-SMD, Gull Wing, Side Port | Tube | Obsolete | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
