DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT8125CDC DC CONVERTER 4.5-7.6V 30A |
0 |
|
Datasheet | Excalibur™ PT8120 | 31-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 4.5 ~ 7.6V | - | - | - | 28A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Surface Mount | - | - | - | - |
|
|
PT3342CDC DC CONVERTER 5V 30W |
0 |
|
Datasheet | PT3340 (30W) | 19-SMD Module | Tray | Obsolete | Isolated Module | 1 | 18V | 60V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - |
|
|
PT4101ADC DC CONVERTER 5V 15W |
0 |
|
Datasheet | PT4100 (15W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | - | - | - | - |
|
|
PT4105ADC DC CONVERTER 12V 15W |
0 |
|
Datasheet | PT4100 (15W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 40V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|

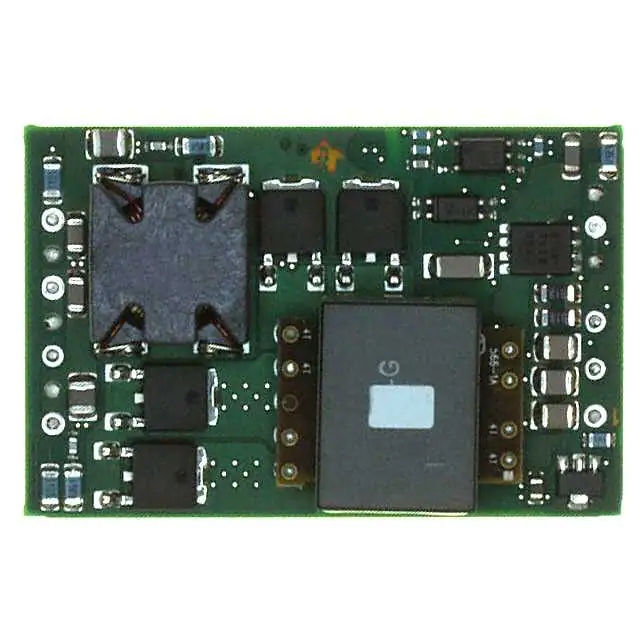

PTB48510CAZDC DC CONVERTER +/-15V 66W |
0 |
|
Datasheet | PTB4851x | 8-SMD Module | Tray | Not For New Designs | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 2.2A, 2.2A | 66 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 90% | - | - | Surface Mount | - | Enable, Active Low | - | - |
|
PTB48560BASDC DC CONVERTER 1.8-3.6V 30W |
0 |
|
Datasheet | PTB48560 (30W) | 11-SMD Module | Bulk | Not For New Designs | Isolated Module | 1 | 36V | 75V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 82% | - | - | Surface Mount | - | - | - | - |
|
|
PT4711CDC DC CONVERTER +/-15V 45W |
0 |
|
Datasheet | Excalibur™ PT4711 (45W) | 21-SMD Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 15V | -15V | - | - | 1.5A, 1.5A | 45 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - |
|
|
PT3402ADC DC CONVERTER 2.5V 35W |
0 |
|
Datasheet | Excalibur™ PT3400 (35W) | 14-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 2.5V | - | - | - | 12A | 35 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole, Right Angle | - | - | - | - |
|
PTB78560AASDC DC CONVERTER 3.6-5.5V 30W |
0 |
|
Datasheet | PTB78560 (30W) | 11-SMD Module | Bulk | Not For New Designs | Isolated Module | 1 | 18V | 60V | 3.6 ~ 5.5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - |
|
|
PTB48500AAHDC DC CONVERTER 3.3V 1.2V 28W |
18 |
|
Datasheet | PTB4850x | 10-DIP Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 3.3V | 1.2V | - | - | 6A, 7A | 28 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PT4403ADC DC CONVERTER 3.4-5.7V 75W |
0 |
|
Datasheet | Excalibur™ PT4400 (75W) | 21-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.4 ~ 5.7V | - | - | - | 15A | 75 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 91% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT7721NDC DC CONVERTER 1.3-3.5V 15A |
0 |
|
Datasheet | PT7720 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 11V | 14V | 1.3 ~ 3.5V | - | - | - | 17A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 88% | - | - | Through Hole, Vertical | - | - | - | - |
|
|
PTB48511BAZDC DC CONVERTER +/-12V 72W |
0 |
|
Datasheet | PTB4851x | 8-SMD Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 12V | -12V | - | - | 3A, 3A | 72 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | Enable, Active Low | - | - |
|
|
PT8125NDC DC CONVERTER 4.5-7.6V 28A |
0 |
|
Datasheet | Excalibur™ PT8120 | 31-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 4.5 ~ 7.6V | - | - | - | 28A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | - | - | - | - |
|
|
PT7779CDC DC CONVERTER 1.3-3.5V 32A |
20 |
|
Datasheet | PT7779 | 27-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 32A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 90% | - | - | Surface Mount | - | - | - | - |
|
|
PT7777NDC DC CONVERTER 1.3-3.5V 32A |
16 |
|
Datasheet | PT7770 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.3 ~ 3.5V | - | - | - | 32A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 90% | - | - | Through Hole, Vertical | - | - | - | - |
|
|
PTB48502AAHDC DC CONVERTER 3.3V 1.2V 45W |
9 |
|
Datasheet | PTB4850x | 10-DIP Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 3.3V | 1.2V | - | - | 10A, 13A | 45 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PT4831CDC DC CONVERTER 5V 3.3V 1.5V 35W |
0 |
|
Datasheet | Excalibur™ PT4820 (35W) | 21-SMD Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 5V | 3.3V | 1.5V | - | 5A, 5.5A, 5.5A | 35 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Surface Mount | - | - | - | - |
|
|
PT4828CDC DC CONVERTER 5V 2.5V 1.5V 35W |
0 |
|
Datasheet | Excalibur™ PT4820 (35W) | 21-SMD Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 5V | 2.5V | 1.5V | - | 5A, 5.5A, 5.5A | 35 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 86.5% | - | - | Surface Mount | - | - | - | - |
|
|
PT4823CDC DC CNVRTR 3.3V 2.5V 1.2V 35W |
0 |
|
Datasheet | Excalibur™ PT4820 (35W) | 21-SMD Module | Tray | Obsolete | Isolated Module | 3 | 36V | 75V | 3.3V | 2.5V | 1.2V | - | 8A, 6A, 6A | 35 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OTP, SCP, UVLO | -40°C ~ 85°C | 85.6% | - | - | Surface Mount | - | - | - | - |
