DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT6941ADC DC CONVERTER 3.3V 2.5V |
0 |
|
Datasheet | Excalibur™ PT6940 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 2 | 4.5V | 5.5V | 3.3V | 2.5V | - | - | 6A, 6A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Through Hole, Horizontal | - | - | - | - |
|
|
PT4227ADC DC CONVERTER 1.2-1.3V 10W |
0 |
|
Datasheet | Excalibur™ PT4220 (10W) | 10-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.2 ~ 1.3V | - | - | - | 3A | 10 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 65% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT4508ADC DC CONVERTER 2.5V 20W |
0 |
|
Datasheet | Excalibur™ PT4500 (20W) | 12-SIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 40V | 2.5V | - | - | - | 5A | 20 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 79% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PTB48510AASDC DC CONVERTER +/-5V 65W |
0 |
|
Datasheet | PTB4851x | 8-SMD Module | Tray | Obsolete | Isolated Module | 2 | 36V | 75V | 5V | -5V | - | - | 6.5A, 6.5A | 65 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | Enable, Active Low | - | - |
|
LTM8028MPY#PBFDC DC CONVERTER 0.8-1.8V 9W |
0 |
|
Datasheet | µModule® | 114-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 1.8V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 114-BGA (15x15) | - | - | - |
|
|
PT7756NDC DC CONVERTER 6.6-12.8V |
0 |
|
- |
PT7750 | 27-SIP Module, Vertical | Tray | Obsolete | Non-Isolated PoL Module | 1 | 20V | 28V | 6.6 ~ 12.8V | - | - | - | 15A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 88% | - | - | Through Hole, Vertical | - | - | - | - |
|
|
PT4121ADC DC CONVERTER 3.3V 20W |
0 |
|
Datasheet | PT4120 (20W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 5A | 20 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 78% | - | - | Through Hole | - | - | - | - |
|
|
PT6501NDC DC CONVERTER 3.3V |
0 |
|
Datasheet | PT6500 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 6V | 3.3V | - | - | - | 8A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | - | - | - | - |
|
|
PT7615ADC DC CONVERTER 1.075-1.85V |
0 |
|
Datasheet | PT7610 | 27-SIP Module, Horizontal | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 1.075 ~ 1.85V | - | - | - | 20A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole, Horizontal | - | - | - | - |
|
PTB48560AAHDC DC CONVERTER 3.6-5.5V 30W |
0 |
|
Datasheet | PTB48560 (30W) | 11-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 3.6 ~ 5.5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|

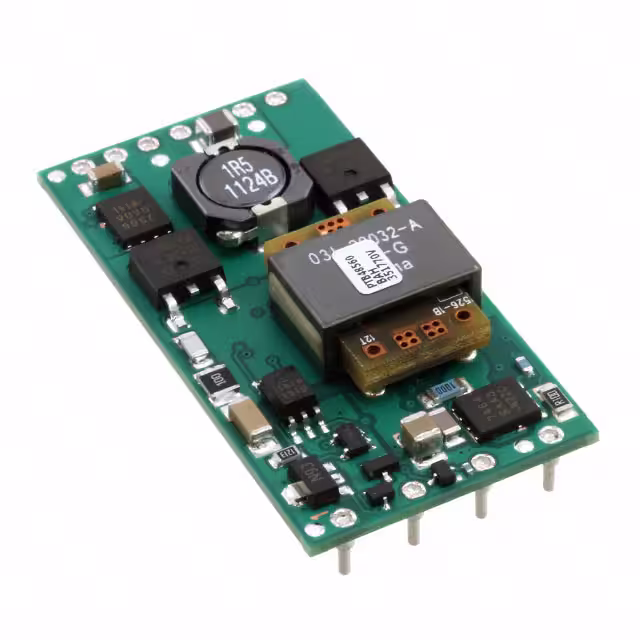

PTB48560BAHDC DC CONVERTER 1.8-3.6V 30W |
0 |
|
Datasheet | PTB48560 (30W) | 11-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PT3406ADC DC CONVERTER 1.2V 35W |
0 |
|
Datasheet | Excalibur™ PT3400 (35W) | 14-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 1.2V | - | - | - | 16A | 35 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 82% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT4103ADC DC CONVERTER 15V 15W |
0 |
|
Datasheet | PT4100 (15W) | 6-DIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 1A | 15 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 82% | - | - | Through Hole | - | - | - | - |
|
|
PTQA430033P2ADDC DC CONVERTER 3.3V 100W |
0 |
|
Datasheet | PTQA430033 (100W) | 8-DIP Module, 1/4 Brick | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 30A | 100 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | - | - | - | - |
|

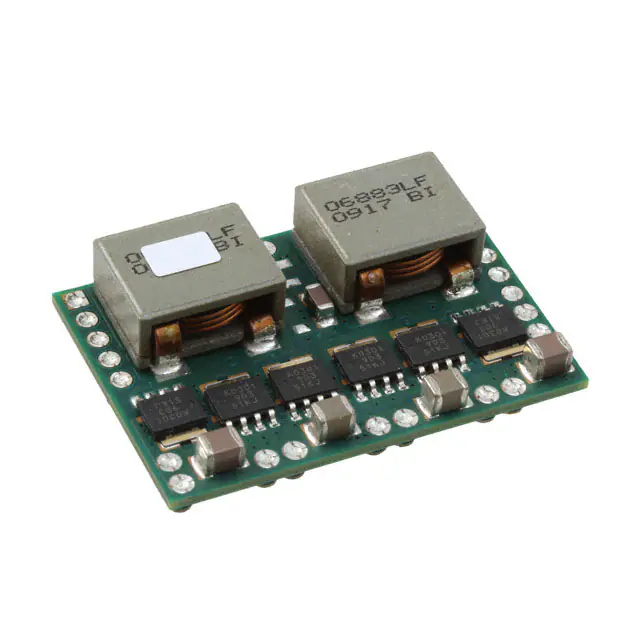

PTH08T255WASTDC DC CONVERTER 3-5.25V |
0 |
|
Datasheet | PTH08T255W | 22-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - |
|
|
PTH08T255WAZTDC DC CONVERTER 3-5.25V |
0 |
|
Datasheet | PTH08T255W | 22-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | - | - | - | - |
|
|
PT4562ADC DC CONVERTER 5V 30W |
0 |
|
Datasheet | Excalibur™ PT4560 (30W) | 19-SIP Module | Tray | Obsolete | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | UVLO | -40°C ~ 85°C | 84% | - | - | Through Hole, Right Angle | - | - | - | - |
|
|
PT7746CDC DC CONVERTER 3-5.5V |
0 |
|
Datasheet | PT7740 | 27-SMD Module | - | Obsolete | Non-Isolated PoL Module | 1 | 3V | 5.5V | 3 ~ 5.5V | - | - | - | 32A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 90% | - | - | Surface Mount | - | - | - | - |
|
|
PT7740ADC DC CONVERTER 3.1-3.6V |
0 |
|
- |
PT7740 | 27-SIP Module, Horizontal | Bulk | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 3.6V | 3.1 ~ 3.6V | - | - | - | 32A | - | - | ITE (Commercial) | - | 0°C ~ 85°C | 90% | - | - | Through Hole, Horizontal | - | - | - | - |
|

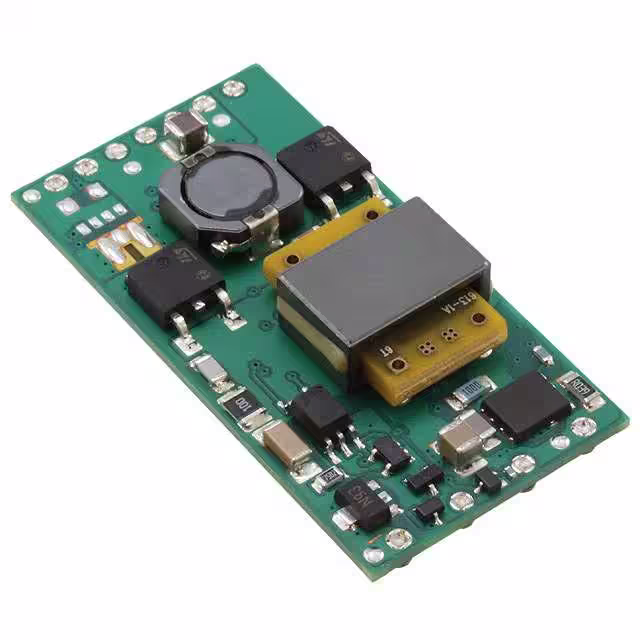

PTB78560AAZDC DC CONVERTER 3.6-5.5V 30W |
0 |
|
Datasheet | PTB78560 (30W) | 11-SMD Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 60V | 3.6 ~ 5.5V | - | - | - | 6A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 83% | - | - | Surface Mount | - | - | - | - |
