Voltage Regulators - Linear + Switching
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Topology | Number of Outputs | Frequency - Switching | Voltage/Current - Output 1 | Voltage/Current - Output 2 | Voltage/Current - Output 3 | w/LED Driver | w/Supervisor | w/Sequencer | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LT3095IUDD#PBFIC REG DL BOOST/LINEAR 24QFN |
72 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tube | Active | Step-Up (Boost) (1), Linear (LDO) (1) | 2 | 450kHz ~ 2MHz | Adj, 950mA | 1V ~ 20V, 50mA | - | No | No | No | 3V ~ 20V | -40°C ~ 125°C | - | - | Surface Mount | 24-QFN (3x5) |
|
LT1939IDD#PBFIC REG DL BUCK/LINEAR 12DFN |
158 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | 500kHz ~ 2.4MHz | 0.8V ~ 24.25V, 2A | 0.8V ~ 24.25V, 1A | - | No | No | No | 3V ~ 25V | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (3x3) |
|
LTC3256HMSE#PBFIC REG DL BUCK/LINEAR 16MSOP |
50 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | - | 5V, 100mA | 3.3V, 250mA | - | No | No | Yes | 5.5V ~ 38V | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
|
LT3694EUFD#PBFIC REG TRIPLE BUCK/LINEAR 28QFN |
40 |
|
Datasheet | - | 28-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.5MHz | 0.75V ~ 16V, 2.6A | Controller | Controller | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 28-QFN (4x5) |
|
LT3694IFE#PBFIC REG TRIPLE BUCK/LNR 20TSSOP |
63 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.5MHz | 0.75V ~ 16V, 2.6A | Controller | Controller | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP-EP |
|

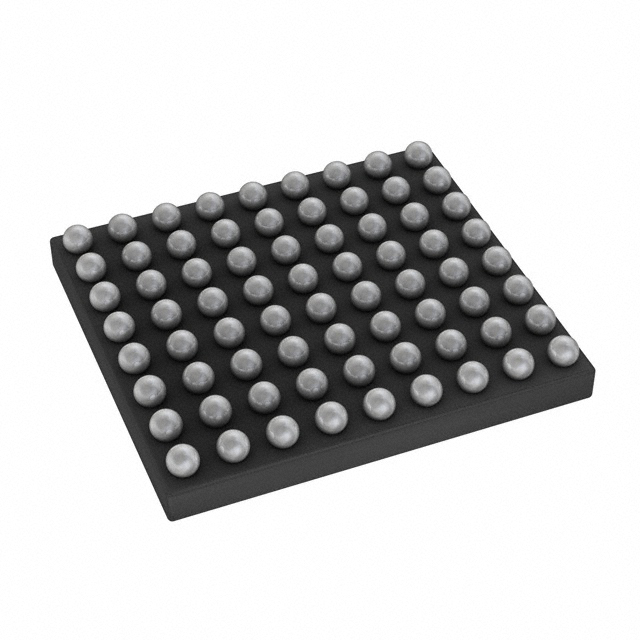

ADP5080ACBZ-1-RLIC REG 9OUT BUCK/BST/LNR 72WLCSP |
97 |
|
Datasheet | - | 72-WFBGA, WLCSP | Tape & Reel (TR) | Active | Step-Down (Buck) (6), Step-Up (Boost) (1), Linear (LDO) (3) | 9 | 750KHz ~ 2MHz | 0.8V ~ 1.2V, 3A | 1V ~ 3.3V, 1.15A | 1.2V ~ 1.8V, 1.5A | No | No | No | 4V ~ 15V | -20°C ~ 85°C | - | - | Surface Mount | 72-WLCSP (4.46x3.96) |
|
LT3507AEFE#TRPBFIC REG QUAD BUCK/LINEAR 38TSSOP |
1,860 |
|
Datasheet | - | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (3), Linear (LDO) (1) | 4 | 900kHz ~ 1.1MHz | -, 2.7A | -, 1.8A | -, 1.8A | No | No | Yes | 4V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 38-TSSOP-EP |
|
LT3383HUJM#PBFIC REG QD BUCK/LNR 2.25MHZ 40QFN |
4 |
|
Datasheet | - | 40-WFQFN Exposed Pad | Tube | Active | Step-Down (Buck) | 4 | 2.25MHz | 0.725V ~ 5.5V, 2.5A | 0.725V ~ 5.5V, 2.5A | 1.8V, 1.5A | No | No | No | 2.7V ~ 5.5V | -40°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | 40-QFN (6x6) |
|
|
LT3507AHFE#PBFIC REG QUAD BUCK/LINEAR 38TSSOP |
90 |
|
Datasheet | - | 38-TFSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down (Buck) (3), Linear (LDO) (1) | 4 | 900kHz ~ 1.1MHz | -, 2.7A | -, 1.8A | -, 1.8A | No | No | Yes | 4V ~ 36V | -40°C ~ 150°C | - | - | Surface Mount | 38-TSSOP-EP |
|
TPS51275BRUKTIC REG QUAD BUCK/LNR SYNC 20WQFN |
740 |
|
Datasheet | D-CAP™ | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 300kHz, 355kHz | Controller | Controller | 3.3V, 100mA | No | No | No | 5V ~ 24V | -40°C ~ 85°C | - | - | Surface Mount | 20-WQFN (3x3) |
|
|
TPS51275RUKTIC REG QUAD BUCK/LNR SYNC 20WQFN |
734 |
|
Datasheet | D-CAP™ | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 300kHz, 355kHz | Controller | Controller | 3.3V, 100mA | No | No | No | 5V ~ 24V | -40°C ~ 85°C | - | - | Surface Mount | 20-WQFN (3x3) |
|
RAA2128314GSP#HA072V 0.5A BUCK REGULATOR W/ DUAL |
1,883 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 350kHz | 1.25V ~ 72V, 500mA | 5V, 100mA | 3.3V, 50mA | No | No | No | 4.5V ~ 72V | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
TPS610987DSETIC REG DL BOOST/LNR SYNC 6WSON |
470 |
|
Datasheet | - | 6-WFDFN | Tape & Reel (TR) | Active | Step-Up (Boost) Synchronous (1), Linear (LDO) (1) | 2 | - | 4.3V, 350mA | 2.2V, 200mA | - | No | No | No | 0.7V ~ 4.5V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WSON (1.5x1.5) |
|
NCP81038MNTWGIC REG QUAD BUCK/LINEAR 28QFN |
3,990 |
|
Datasheet | - | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (2), Linear (LDO) (2) | 4 | 300kHz, 400kHz, 600kHz | Controller | Controller | 5V, 60mA | No | No | No | 5.5V ~ 28V | 0°C ~ 85°C | - | - | Surface Mount | 28-QFN (4x4) |
|

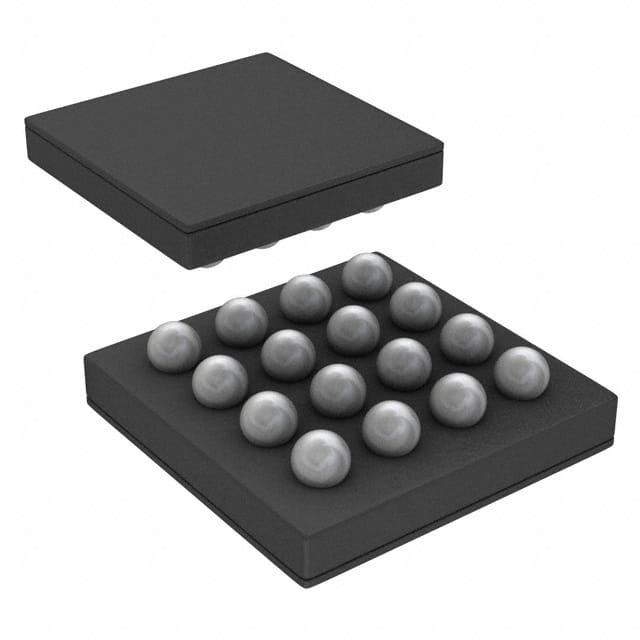

LM3280TL-275/NOPBIC REG QD BUCK/LNR 2MHZ 16TUSMD |
500 |
|
Datasheet | - | 16-WFBGA | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (3) | 4 | 2MHz | 0.8V ~ 3.6V, 300mA | 2.85V, 20mA | 2.75V, 20mA | No | No | No | 2.7V ~ 5.5V | -30°C ~ 85°C | - | - | Surface Mount | 16-DSBGA |
|
|
TPS51225RUKTIC REG QUAD BUCK/LNR SYNC 20WQFN |
250 |
|
Datasheet | D-CAP™ | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 300kHz, 355kHz | Controller | Controller | 3V, 100mA | No | No | No | 5.5V ~ 24V | -40°C ~ 85°C | - | - | Surface Mount | 20-WQFN (3x3) |
|
|
TPS51225BRUKTIC REG QUAD BUCK/LNR SYNC 20WQFN |
500 |
|
Datasheet | D-CAP™ | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 300kHz, 355kHz | Controller | Controller | 3V, 100mA | No | No | No | 5.5V ~ 24V | -40°C ~ 85°C | - | - | Surface Mount | 20-WQFN (3x3) |
|
LP87334FRHDRDUAL HIGH-CURRENT BUCK CONVERTER |
3,000 |
|
Datasheet | - | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 2MHz | 0.7V ~ 3.36V, 3A | 0.7V ~ 3.36V, 3A | 0.8V ~ 3.3V, 300mA | No | No | Yes | 2.8V ~ 5.5V | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 28-VQFN (5x5) |
|
|
LP87334ERHDRDUAL HIGH-CURRENT BUCK CONVERTER |
2,990 |
|
Datasheet | - | 28-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) | 2 | 2MHz | 0.7V ~ 3.36V, 300mA | 0.7V ~ 3.36V, 300mA | - | No | No | No | 2.8V ~ 5.5V | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 28-VQFN (5x5) |
|
LP3907TL-JJCP/NOPBIC REG QUAD BUCK/LNR SYNC 25USMD |
500 |
|
Datasheet | - | 25-WFBGA | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 2.1MHz | 1.2V, 1A | 1.8V, 600mA | 1.2V, 300mA | No | No | Yes | 2.8V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 25-uSMD |
