Voltage Regulators - Linear + Switching
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Topology | Number of Outputs | Frequency - Switching | Voltage/Current - Output 1 | Voltage/Current - Output 2 | Voltage/Current - Output 3 | w/LED Driver | w/Supervisor | w/Sequencer | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS43331QDAPRQ1IC REG QD BUCK/LNR SYNC 38HTSSOP |
0 |
|
Datasheet | - | 38-PowerTSSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (2), Linear (LDO) (2) | 4 | 165kHz | Controller | Controller | 1.2V ~ 8.5V, 650mA | No | Yes | No | 1.8V ~ 30V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 38-HTSSOP |
|
LT3570EUF#TRPBFIC REG TRIPLE BUCK/BST/LNR 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Step-Up (Boost) (1), Linear (LDO) (1) | 3 | 500kHz ~ 2.1MHz | Adj to 0.8V, 1.5A | Adj to 0.8V, 1.5A | Controller | No | No | No | 2.5V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 24-QFN (4x4) |
|
LTC3104IDE#TRPBFIC REG DL BUCK/LINEAR SYNC 14DFN |
0 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 1.2MHz | 0.6V ~ 13.8V, 300mA | 0.6V ~ 14.5V, 10mA | - | No | No | No | 2.5V ~ 15V | -40°C ~ 125°C | - | - | Surface Mount | 14-DFN (4x3) |
|
LT3095EUDD#TRPBFIC REG DL BOOST/LINEAR 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up (Boost) (1), Linear (LDO) (1) | 2 | 450kHz ~ 2MHz | Adj, 950mA | 1V ~ 20V, 50mA | - | No | No | No | 3V ~ 20V | -40°C ~ 125°C | - | - | Surface Mount | 24-QFN (3x5) |
|
LTC3256EMSE#TRPBFIC REG DL BUCK/LINEAR 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | - | 5V, 100mA | 3.3V, 250mA | - | No | No | Yes | 5.5V ~ 38V | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC3104IMSE#TRPBFIC REG DL BUCK/LNR SYNC 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 1.2MHz | 0.6V ~ 13.8V, 300mA | 0.6V ~ 14.5V, 10mA | - | No | No | No | 2.5V ~ 15V | -40°C ~ 125°C | - | - | Surface Mount | 16-MSOP-EP |
|
RAA2124214GNP#HA0LOW DROP OUT LINEAR SYNCH BUCK |
0 |
|
Datasheet | - | 22-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) | 2 | 300kHz ~ 2MHz | Programmable, Programmable, 0.5V ~ 5.5V, 1.1A | Programmable, Programmable, 0.8V ~ 5.5V, 500mA | - | No | No | Yes | 1.8V ~ 6V, 3V ~ 40V | -40°C ~ 125°C (TA) | - | - | Surface Mount | 22-TDFN (3x6) |
|
AP2006SL-13IC REG DL BUCK/LNR 250KHZ 8SOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | 250kHz | Controller | Controller | - | No | No | No | 4.5V ~ 22V | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
LT1939EDD#TRPBFIC REG DL BUCK/LINEAR 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | 500kHz ~ 2.4MHz | 0.8V ~ 24.25V, 2A | 0.8V ~ 24.25V, 1A | - | No | No | No | 3V ~ 25V | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (3x3) |
|
LT3570EFE#TRPBFIC REG TRPL BUCK/BST/LNR 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Step-Up (Boost) (1), Linear (LDO) (1) | 3 | 500kHz ~ 2.1MHz | Adj to 0.8V, 1.5A | Adj to 0.8V, 1.5A | Controller | No | No | No | 2.5V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 20-TSSOP-EP |
|
|
LT3667HUDD#TRPBFIC REG TRIPLE BUCK/LINEAR 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 243kHz ~ 2.2MHz | 1.2V ~ 38.6V, 400mA | 0.8V ~ 38.6V, 200mA | 0.8V ~ 38.6V, 200mA | No | No | No | 1.6V ~ 45V | -40°C ~ 150°C | - | - | Surface Mount | 24-QFN (3x5) |
|
|
LT3667HMSE#TRPBFIC REG TRIPLE BUCK/LINEAR 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 243kHz ~ 2.2MHz | 1.2V ~ 38.6V, 400mA | 0.8V ~ 38.6V, 200mA | 0.8V ~ 38.6V, 200mA | No | No | No | 1.6V ~ 45V | -40°C ~ 150°C | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT3668HMSE#TRPBFIC REG TRIPLE BUCK/LINEAR 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (2) | 3 | 250kHz ~ 2.2MHz | 1.2V ~ 39.4V, 400mA | 1.1V ~ 10V, 200mA | 1.1V ~ 10V, 200mA | No | No | No | 1.6V ~ 40V | -40°C ~ 150°C | - | - | Surface Mount | 16-MSOP-EP |
|
MCZ33730EKIC REG QD BUCK/LNR SYNC 32SOIC |
0 |
|
Datasheet | - | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | Tube | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (3) | 4 | 100kHz ~ 500kHz | 5V, 3.5A | Programmable | Programmable | No | No | No | 4.5V ~ 26.5V | -40°C ~ 125°C | - | - | Surface Mount | 32-SOIC-EP |
|

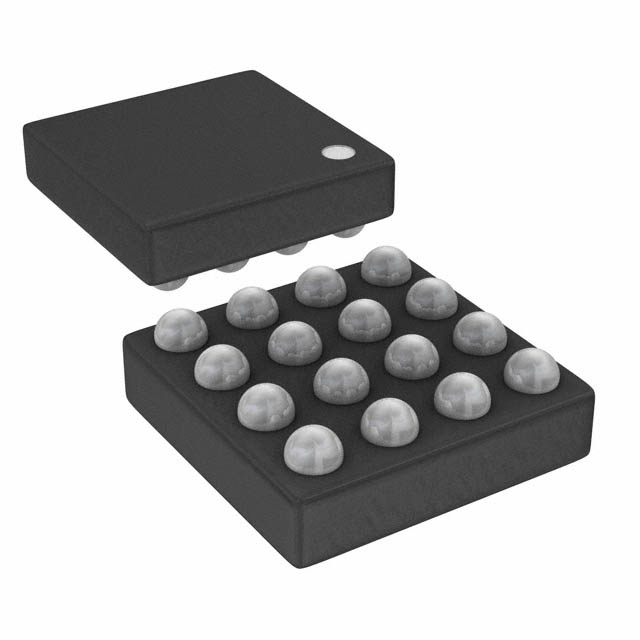

ADP5022ACBZ-1-R7IC REG TRPL BCK/LNR SYNC 16WLCSP |
0 |
|
Datasheet | - | 16-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | 3 | 3MHz | 3.3V, 600mA | 1.5V, 600mA | 1.8V, 150mA | No | No | No | 2.3V ~ 5.5V | -40°C ~ 125°C | - | - | Surface Mount | 16-WLCSP (2.08x2.08) |
|
LTC3100EUD#TRPBFIC REG TRIPLE BUCK/BST/LNR 16QFN |
0 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Step-Up (Boost) (1), Linear (LDO) (1) | 3 | 1.5MHz | 0.6V ~ 5.5V, 250mA | 1.5V ~ 5.25V, 700mA | 0.6V ~ 5.25V, 100mA | No | No | Yes | 0.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
TPS5300DAPRG4IC REG TRP BCK/LNR SYNC 32HTSSOP |
0 |
|
Datasheet | - | 32-PowerTSSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Obsolete | Step-Down (Buck) Synchronous (1), Linear (LDO) (2) | 3 | - | Controller | Controller | Controller | No | No | No | 3V ~ 28V | 0°C ~ 125°C | - | - | Surface Mount | 32-HTSSOP |
|
|
LT3095IUDD#TRPBFIC REG DL BOOST/LINEAR 24QFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up (Boost) (1), Linear (LDO) (1) | 2 | 450kHz ~ 2MHz | Adj, 950mA | 1V ~ 20V, 50mA | - | No | No | No | 3V ~ 20V | -40°C ~ 125°C | - | - | Surface Mount | 24-QFN (3x5) |
|
|
LT3500EDD#TRPBFIC REG DL BUCK/LINEAR 12DFN |
0 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (1) | 2 | 500kHz ~ 2.4MHz | 0.8V ~ 38.9V, 2A | Adjustable, 13mA | - | No | No | No | 3V ~ 36V | -40°C ~ 125°C | - | - | Surface Mount | 12-DFN (3x3) |
|
TPS65300QPWPRQ1IC REG QUAD BUCK/LINEAR 24HTSSOP |
0 |
|
Datasheet | - | 24-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down (Buck) (1), Linear (LDO) (3) | 4 | 2MHz ~ 3MHz | 5.3V, 1.2A | 5V, 350mA | 3.3V, 350mA | No | Yes | No | 5.6V ~ 40V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 24-HTSSOP |
