Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HPA00295DDARIC REG |
0 |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LT1082MJ8IC REG BCK BST ADJ 850MA 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Buck, Boost, Flyback, Forward Converter | Adjustable | 1 | 3V | 75V | 1.244V | 100V (Switch) | 850mA (Switch) | 12kHz ~ 60kHz | No | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
LT1172MJ8IC REG BCK BST ADJ 1.25A 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Cuk, Flyback, Forward Converter | Adjustable | 1 | 3V | 40V | 1.244V | 65V (Switch) | 1.25A (Switch) | 100kHz | No | -55°C ~ 125°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
LTC1044MJ8IC REG CHARGE PUMP INV 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Obsolete | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 1.5V | 9V | -Vin, 2Vin, Vin/2 | - | 20mA | 1kHz ~ 5kHz | No | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
ISL70003ASEHVFEIC REG BUCK ADJ 9A DIE |
0 |
|
Datasheet | - | Die | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.6V | 11.9V | 9A | 300kHz or 500kHz | Yes | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
ISL70003ASEHVXIC REG BUCK ADJ 9A 64CQFP |
0 |
|
Datasheet | - | 64-BCQFP Exposed Pad | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.6V | 11.9V | 9A | 300kHz or 500kHz | Yes | -55°C ~ 125°C (TA) | - | - | Surface Mount | 64-CQFP (14.15x14.15) |
|
|
ISL70003ASEHX/SAMPLEIC REG BUCK ADJ 9A DIE |
0 |
|
Datasheet | - | Die | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 13.2V | 0.6V | 11.9V | 9A | 300kHz or 500kHz | Yes | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
ISL78201AVEZ-TR5506IC REG BUCK BST ADJ 2.5A 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive | Buck, Buck-Boost | Adjustable | 1 | 3V | 40V | 0.8V | 38V | 2.5A | 200kHz ~ 2.2MHz | Both | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 20-TSSOP |
|
ISL85014FRZ-T7AIC REG BUCK ADJ 14A 15TQFN |
0 |
|
Datasheet | - | 15-WFQFN | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 3.8V | 18V | 0.6V | 18V | 14A | 300kHz, 600kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 15-TQFN (3.5x3.5) |
|
RAA230121GSB#HA0IC REG BUCK 3.3V 3A 16TSSOP |
0 |
|
Datasheet | - | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 16V | 3.3V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
RAA230131GSB#HA0IC REG BUCK 3.3V 3A 8HLSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 16V | 3.3V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HLSOP |
|
|
RAA230132GSB#HA0IC REG BUCK 5V 3A 8HLSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 16V | 5V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HLSOP |
|
|
RAA230141GSB#HA0IC REG BUCK 3.3V 3A 16LSSOP |
0 |
|
Datasheet | - | 16-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 7V | 28V | 3.3V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LSSOP |
|
|
RAA230142GSB#HA0IC REG BUCK 5V 3A 16LSSOP |
0 |
|
Datasheet | - | 16-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 7V | 28V | 5V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LSSOP |
|
|
RAA230151GSB#HA0IC REG BUCK 3.3V 3A 8HLSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 7V | 28V | 3.3V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HLSOP |
|
|
RAA230152GSB#HA0IC REG BUCK 5V 3A 8HLSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 7V | 28V | 5V | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HLSOP |
|
|
RAA230153GSB#HA0IC REG BUCK ADJ 3A 8HLSOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 7V | 28V | 0.8V | 6V | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-HLSOP |
|
RAA230222GSB#HA0IC REG BCK 3.3V (5V) DL 20HTSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 2 | 4.5V | 16V | 3.3V (5V) | - | 3A | 1.1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-HTSSOP |
|
|
MB39C305CWQN-G-JN-EFE1IC REG DC/DC CONV 64QFN |
0 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

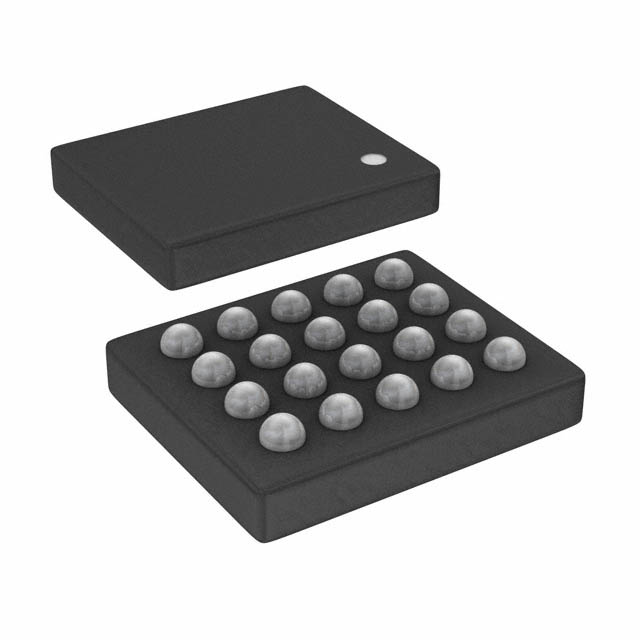

ISL9110AIITAZ-TS2765IC REG BUCK BST ADJ 1.2A 20WLCSP |
0 |
|
- |
- | 20-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 1.8V | 5.5V | 1V | 5.2V | 1.2A | 2.5MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-WLCSP (2.55x2.05) |
