Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2675N-5.0IC REG BUCK 5V 1A 8PDIP |
0 |
|
Datasheet | SIMPLE SWITCHER® | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 6.5V | 40V | 5V | - | 1A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
LM2675N-ADJIC REG BUCK ADJ 1A 8PDIP |
0 |
|
Datasheet | SIMPLE SWITCHER® | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 6.5V | 40V | 1.21V | 37V | 1A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | 8-PDIP |
|

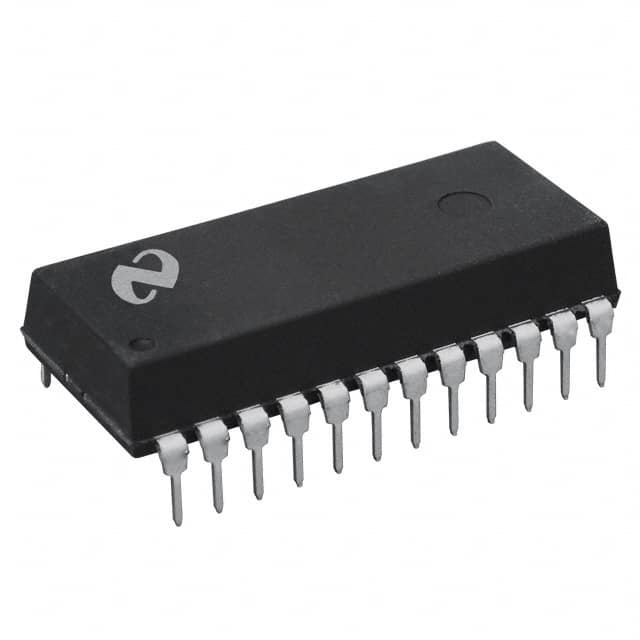

LM2825HN-ADJIC REG BUCK ADJ 1A 24PDIP |
0 |
|
Datasheet | - | 24-DIP (0.600", 15.24mm) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 40V | 1.23V | 15V | 1A | 150kHz | No | -40°C ~ 85°C (TA) | - | - | Through Hole | 24-PDIP |
|
|
LM2825N-5.0IC REG BUCK 5V 1A 24PDIP |
0 |
|
Datasheet | - | 24-DIP (0.600", 15.24mm) | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 7V | 40V | 5V | - | 1A | 150kHz | No | -40°C ~ 85°C (TA) | - | - | Through Hole | 24-PDIP |
|
LM2825N-ADJIC REG BUCK ADJ 1A 24PDIP |
0 |
|
Datasheet | - | 24-DIP (0.600", 15.24mm) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 40V | 1.23V | 15V | 1A | 150kHz | No | -40°C ~ 85°C (TA) | - | - | Through Hole | 24-PDIP |
|
LM3578ANIC REG BUCK BOOST 750MA 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Buck-Boost | - | 1 | 2V | 40V | - | - | 750mA (Switch) | 20kHz | No | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
LM78S40CNIC REG BUCK BST ADJ 1.5A 16PDIP |
0 |
|
- |
- | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | Step-Up, Step-Down | Positive or Negative | Buck, Boost | Adjustable | 1 | 2.5V | 40V | 1.25V | 40V (Switch) | 1.5A (Switch) | 100Hz ~ 100kHz | No | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
LMC7660INIC REG CHARGE PUMP 8PDIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Ratiometric | Negative | Charge Pump | Fixed | 1 | 1.5V | 10V | -Vin | - | - | 10kHz | No | - | - | - | Through Hole | 8-PDIP |
|
LM2687MMIC REG CHRG PUMP ADJ 10MA 8VSSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Step-Down | Negative | Charge Pump | Adjustable | 1 | 2.7V | 5.5V | -1.5V | -5.2V | 10mA | 110kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
NN30195A-VBIC REG BUCK ADJ 6A 24HQFN |
0 |
|
Datasheet | - | 24-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 5.6V | 0.6V | 3.5V | 6A | 500kHz, 1MHz, 2MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-HQFN (4x4) |
|

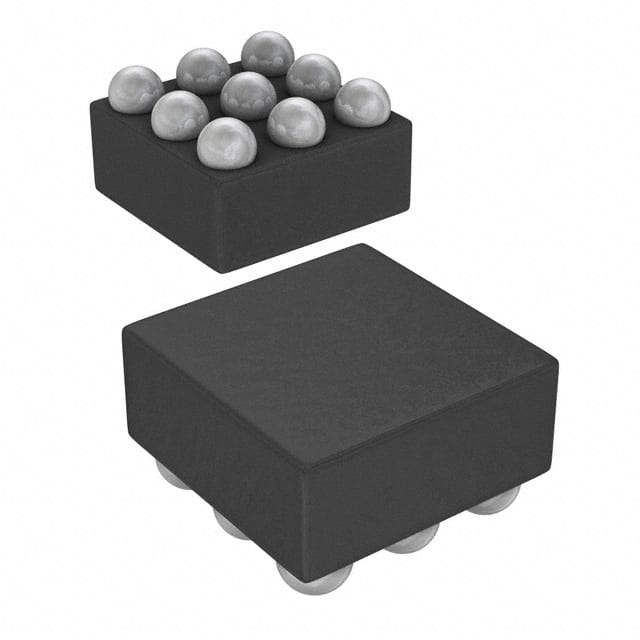

AN30180A-PRIC REG BUCK PROG 1.2A 9WLCSP |
0 |
|
Datasheet | - | 9-VFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Programmable | 1 | 2.5V | 5.5V | 1.2V, 1.35V, 1.85V, 3.3V | - | 1.2A | 3MHz | Yes | - | - | - | Surface Mount | 9-WLCSP (1.46x1.46) |
|
ADP2114ACPZ-R2IC REG BUCK ADJ SGL/DL 32LFCSP |
0 |
|
Datasheet | - | 32-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Discontinued at Digi-Key | Step-Down | Positive | Buck | Adjustable (Programmable) | 1 or 2 | 2.75V | 5.5V | 0.6V (0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V) | 5.5V | 4A, 2A | 300kHz, 600kHz, 1.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-LFCSP-WQ (5x5) |
|
AAT1230ITP-T1IC REG BOOST ADJ 100MA 12TSOPJW |
0 |
|
Datasheet | - | 12-TFSOJ (0.094", 2.40mm Width) | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Adjustable | 1 | 2.7V | 5.5V | 2.7V | 18V | 100mA | Up to 2MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-TSOPJW |
|
TPS54362HPWPIC REG BUCK ADJ 1A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 48V | 0.9V | 18V | 1A | 200kHz ~ 2.2MHz | No | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
MIC23450-AAAYML-T5IC REG BUCK ADJ 2A TRPL 32MLF |
0 |
|
Datasheet | HyperLight Load® | 32-VFQFN Exposed Pad, 32-MLF® | Tape & Reel (TR) | Discontinued at Digi-Key | Step-Down | Positive | Buck | Adjustable | 3 | 2.7V | 5.5V | 1V | 3.3V | 2A | 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 32-MLF® (5x5) |
|
FAN48630UC45XIC REG BOOST PROG 1.5A 16WLCSP |
0 |
|
Datasheet | TinyBoost® | 16-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Programmable | 1 | 2.35V | 5.5V | 4.5V, 4.76V | - | 1.5A (Switch) | 2.5MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WLCSP (1.78x1.78) |
|
FAN53611UC123XIC REG BUCK 1.233V 1A 6WLCSP |
0 |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 1.233V | - | 1A | 6MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.23x0.88) |
|
|
FAN53610AUC29XIC REG BUCK 2.9V 1A 6WLCSP |
0 |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 2.9V | - | 1A | 3MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.23x0.88) |
|
FAN53611AUC11XIC REG BUCK 1.1V 1A 6WLCSP |
0 |
|
Datasheet | - | 6-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 1.1V | - | 1A | 6MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.23x0.88) |
|
|
AAT1232ITP-T1IC REG BOOST ADJ 100MA 12TSOPJW |
0 |
|
Datasheet | - | 12-TFSOJ (0.094", 2.40mm Width) | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Adjustable | 1 | 2.7V | 5.5V | 2.7V | 24V | 100mA | Up to 2MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-TSOPJW |
