Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3631IDD-3.3#TRPBFIC REG BUCK 3.3V 100MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive or Negative | Buck | Fixed | 1 | 4.5V | 45V | 3.3V | - | 100mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
|
LTC3631IDD-5#TRPBFIC REG BUCK 5V 100MA 8DFN |
0 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive or Negative | Buck | Fixed | 1 | 4.5V | 45V | 5V | - | 100mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (3x3) |
|
LTC3631IMS8E-3.3#TRPBFIC REG BUCK 3.3V 100MA 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive or Negative | Buck | Fixed | 1 | 4.5V | 45V | 3.3V | - | 100mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
|
LTC3631IMS8E-5#TRPBFIC REG BUCK 5V 100MA 8MSOP |
0 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive or Negative | Buck | Fixed | 1 | 4.5V | 45V | 5V | - | 100mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
LT3957AIUHE#TRPBFIC REG BOOST CUK ADJ 5A 36QFN |
0 |
|
Datasheet | - | 36-WFQFN, 28 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Cuk, Flyback, SEPIC | Adjustable | 1 | 3V | 40V | 1.6V | 40V (Switch) | 5A (Switch) | 100kHz ~ 1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-QFN (5x6) |
|
LTC3646HMSE-1#TRPBFIC REG BUCK ADJ 1A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 40V | 0.6V | 15V | 1A | 200kHz ~ 3MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC3646HMSE#TRPBFIC REG BUCK ADJ 1A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 40V | 2V | 30V | 1A | 200kHz ~ 3MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LTC3646HDE-1#TRPBFIC REG BUCK ADJ 1A 14DFN |
0 |
|
Datasheet | - | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4V | 40V | 0.6V | 15V | 1A | 200kHz ~ 3MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-DFN (4x3) |
|
LT8494HFE#TRPBFIC REG BST CHRG PUMP ADJ 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive | Boost, Charge Pump, Flyback, SEPIC | Adjustable | 1 | 1V | 60V | 1.202V | 70V (Switch) | 2A | 250kHz ~ 1.5MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
TPS61235RWLTIC REG BOOST 5.1V 6.5A 9VQFN |
0 |
|
Datasheet | - | 9-PowerVFQFN | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Fixed | 1 | 2.3V | 4.5V | 5.1V | - | 6.5A (Switch) | 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-VQFN-HR (2.5x2.5) |
|
|
LT3975IMSE#TRPBFIC REG BUCK ADJ 2.5A 16MSOP |
0 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.3V | 42V | 1.197V | 40.74V | 2.5A | 200kHz ~ 2.25MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|

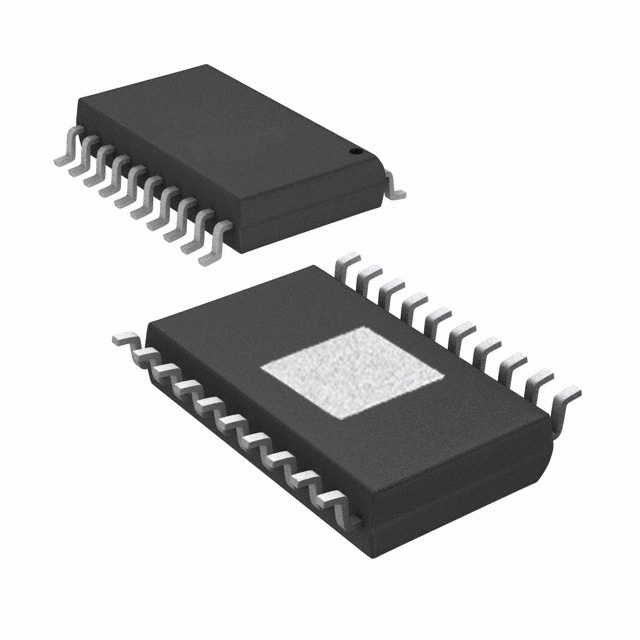

LTC3106IFE#TRPBFIC REG BUCK BOOST PROG 20TSSOP |
0 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive | Buck-Boost | Programmable | 1 | 0.85V | 6V | 1.8V, 2.2V, 3.3V, 5V | - | 300mA | - | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-TSSOP-EP |
|
LT8302ES8E-3#TRPBFIC REG FLYBACK 3.6A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Flyback | - | 1 | 3V | 42V | - | 65V (Switch) | 3.6A | Down to 12kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
LM2598SX-5.0IC REG BUCK 5V 1A TO263 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Not For New Designs | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 5V | - | 1A | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LM2586S-3.3IC REG BST FLYBACK 3.3V 3A TO263 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Fixed | 1 | 4V | 40V | 3.3V | - | 3A (Switch) | 100kHz ~ 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
|
LM2586S-5.0IC REG BOOST FLYBACK 5V 3A TO263 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Fixed | 1 | 4V | 40V | 5V | - | 3A (Switch) | 100kHz ~ 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LM2586T-3.3IC REG BST FLYBACK 3.3V TO220-7 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-220-7 Formed Leads | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Fixed | 1 | 4V | 40V | 3.3V | - | 3A (Switch) | 100kHz ~ 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-7 |
|
LM2586T-5.0IC REG BST FLYBACK 5V 3A TO220-7 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-220-7 Formed Leads | Tube | Obsolete | Step-Up, Step-Up/Step-Down | Positive | Boost, Flyback, Forward Converter | Fixed | 1 | 4V | 40V | 5V | - | 3A (Switch) | 100kHz ~ 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-7 |
|
LTC3310HV#WTRPBFIC REG BUCK ADJ 10A 18LQFN |
0 |
|
Datasheet | - | 18-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.25V | 5.5V | 0.5V | 5.5V | 10A | 500kHz ~ 5MHz | Yes | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 18-LQFN (3x3) |
|

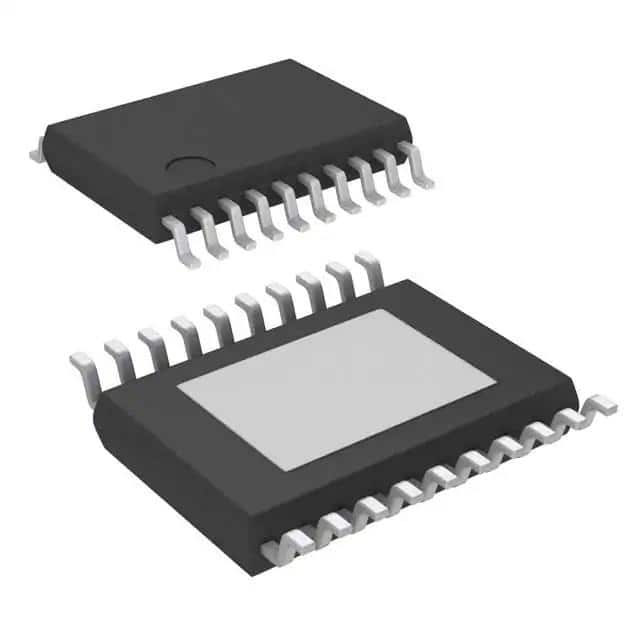

TPS54110QPWPRQ1IC REG BUCK ADJ 1.5A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 6V | 0.9V | 3.3V | 1.5A | 350kHz, 550kHz | Yes | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
