Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_4040208^C.jpg)
|
LM2576HVT-15IC REG BUCK 15V 3A TO220-5 |
0 |
|
Datasheet | - | TO-220-5 | Tube | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4V | 60V | 15V | - | 3A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LM5008SDIC REG BUCK ADJ 350MA 8WSON |
0 |
|
Datasheet | - | 8-WDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 9.5V | 95V | 2.5V | 75V | 350mA | 50kHz ~ 600kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-WSON (4x4) |
|
LM5574MTXIC REG BUCK ADJ 500MA 16TSSOP |
0 |
|
Datasheet | SIMPLE SWITCHER® | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 6V | 75V | 1.225V | 70V | 500mA | 50kHz ~ 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-TSSOP |
|
LM2593HVT-5.0/NOPBIC REG BUCK 5V 2A TO220-7 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-220-7 Formed Leads | Tube | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 60V | 5V | - | 2A | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-7 |
|
LT3686IDD#TRPBFIC REG BUCK ADJ 1.2A 10DFN |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 37V | 0.8V | 37V | 1.2A | 300kHz ~ 2.5MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
LT3686AIDD#TRPBFIC REG BUCK ADJ 1.2A 10DFN |
0 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 37V | 0.8V | 37V | 1.2A | 300kHz ~ 2.5MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
LM25005MHIC REG BUCK ADJ 2.5A 20HTSSOP |
0 |
|
Datasheet | - | 20-PowerTSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Step-Down | Positive | Buck | Adjustable | 1 | 7V | 42V | 1.225V | 37V | 2.5A | 50kHz ~ 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-HTSSOP |
|
AP1501-12K5L-13IC REG BUCK 12V 3A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 12V | - | 3A | 150kHz | No | -20°C ~ 85°C (TA) | - | - | Surface Mount | TO-263-5 |
|
|
AP1501-33K5L-13IC REG BUCK 3.3V 3A TO263-5 |
0 |
|
Datasheet | - | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 3.3V | - | 3A | 150kHz | No | -20°C ~ 85°C (TA) | - | - | Surface Mount | TO-263-5 |
|
|
AP1501-50K5L-13IC REG BUCK 5V 3A TO263-5L |
0 |
|
Datasheet | * | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263-5 |
|
|
AP1501-K5L-13IC REG BUCK ADJ 3A TO263-5L |
0 |
|
Datasheet | * | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | TO-263-5 |
|
LM2576HVT-5.0/LF02IC REG BUCK 5V 3A TO220-5 |
0 |
|
Datasheet | SIMPLE SWITCHER® | TO-220-5 Formed Leads | Tube | Active | Step-Down | Positive | Buck | Fixed | 1 | 4V | 60V | 5V | - | 3A | 52kHz | No | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-220-5 |
|

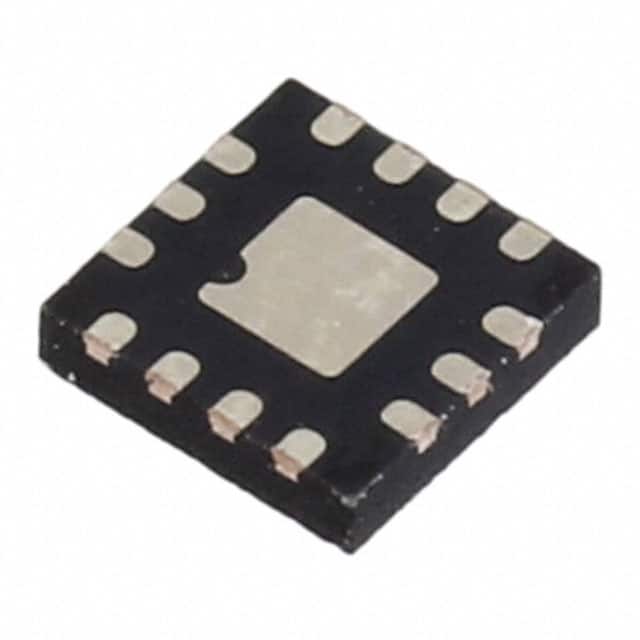

MIC23099YFT-T5IC REG BUCK BOOST ADJ DL 14FTQFN |
0 |
|
Datasheet | - | 14-UFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Down | Positive | Buck, Boost | Adjustable | 2 | 0.85V | 1.6V | 1V, 1.8V | 1.6V, 3.3V | 30mA, 1A (Switch) | 1MHz, 80kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-FTQFN (2.5x2.5) |
|
LTC3644EY#TRPBFIC REG BUCK ADJ QUAD 36BGA |
0 |
|
Datasheet | - | 36-FBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 4 | 2.7V | 17V | 0.6V | 17V | 1.25A, 1.25A, 1.25A, 1.25A | 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-BGA (5x5) |
|
|
LTC3644EY-2#TRPBFIC REG BUCK ADJ QUAD 36BGA |
0 |
|
Datasheet | - | 36-FBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 4 | 2.7V | 17V | 0.6V | 17V | 1.25A, 1.25A, 1.25A, 1.25A | 2.25MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 36-BGA (5x5) |
|
MIC2179BSMIC REG BUCK ADJ 1.5A 20SSOP |
0 |
|
Datasheet | - | 20-SSOP (0.209", 5.30mm Width) | Tube | Discontinued at Digi-Key | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 16.5V | 1.245V | 16.5V | 1.5A | 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-SSOP |
|
MIC2179-3.3BSMIC REG BUCK 3.3V 1.5A 20SSOP |
0 |
|
Datasheet | - | 20-SSOP (0.209", 5.30mm Width) | Bulk | Obsolete | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 16.5V | 3.3V | - | 1.5A | 200kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-SSOP |
|
|
MPF5300AMDA0ESIC REG BUCK ADJ 12A 24HWQFN |
0 |
|
Datasheet | - | 24-PowerWFQFN | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.7V | 5.5V | 0.5V | 1.2V | 12A | 2MHz ~ 3MHz | No | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 24-HWQFN (4.5x3.5) |
|
|
MPF5302AMBA0ESIC REG BUCK ADJ 15A 24HWQFN |
0 |
|
Datasheet | - | 24-PowerWFQFN | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.7V | 5.5V | 0.5V | 1.2V | 15A | 2MHz ~ 3MHz | No | -40°C ~ 125°C (TA) | - | - | Surface Mount, Wettable Flank | 24-HWQFN (4.5x3.5) |
|
LM2733YMFIC REG BOOST ADJ 1A SOT23-5 |
2 |
|
Datasheet | - | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Step-Up | Positive | Boost | Adjustable | 1 | 2.7V | 14V | 2.7V | 40V (Switch) | 1A (Switch) | 600kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-5 |
