Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

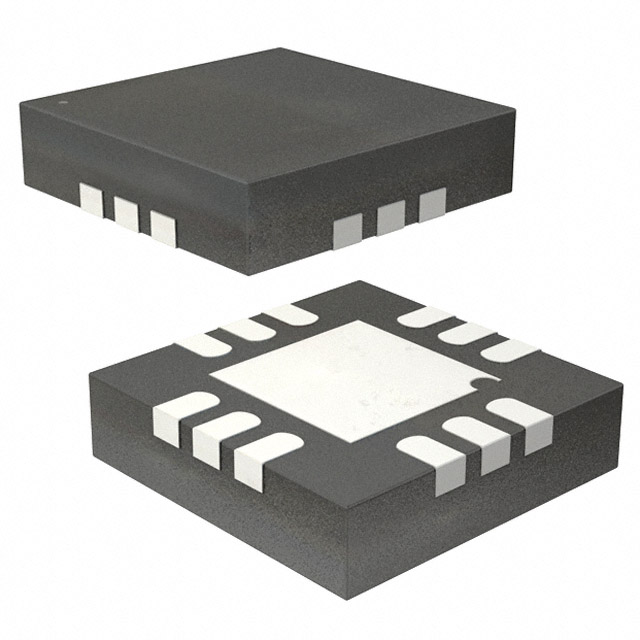

ADP2442ACPZ-R7IC REG BUCK ADJ 1A 12LFCSP |
5,460 |
|
Datasheet | - | 12-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 36V | 0.6V | 32.4V | 1A | 300kHz ~ 1MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-LFCSP-WQ (3x3) |
|
LT3502EMS#TRPBFIC REG BUCK ADJ 500MA 10MSOP |
4,671 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 40V | 0.8V | 36V | 500mA | 1.1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
LT1616ES6#TRPBFIC REG BUCK ADJ 600MA TSOT23-6 |
3,885 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 25V | 1.25V | 21.75V | 600mA | 1.4MHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
TPS546B24ARVFRIC REG BUCK ADJ 20A 40LQFN |
3,576 |
|
Datasheet | - | 40-PowerLFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.95V | 18V | 0.6V | 5.5V | 20A | 225kHz ~ 1.5MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 40-LQFN-CLIP (7x5) |
|
|
LT1616ES6#TRMPBFIC REG BUCK ADJ 600MA TSOT23-6 |
2,044 |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 25V | 1.25V | 21.75V | 600mA | 1.4MHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
|
LT1945EMS#PBFIC REG BOOST SEPIC ADJ DL 10MSOP |
1,700 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Step-Up, Step-Up/Step-Down | Positive and Negative (Dual Rail) | Boost, SEPIC | Adjustable | 2 | 1.2V | 15V | ±1.23V | ±34V | 250mA (Switch) | - | No | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
|
LT1945EMS#TRPBFIC REG BOOST SEPIC ADJ DL 10MSOP |
1,332 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive and Negative (Dual Rail) | Boost, SEPIC | Adjustable | 2 | 1.2V | 15V | ±1.23V | ±34V | 250mA (Switch) | - | No | 0°C ~ 70°C (TJ) | - | - | Surface Mount | 10-MSOP |
|
LTC3536EMSE#PBFIC REG BUCK BOOST ADJ 1A 12MSOP |
3,198 |
|
Datasheet | - | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 1.8V | 5.5V | 1.8V | 5.5V | 1A | 300kHz ~ 2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
.jpg)
|
TPS53319DQPTIC REG BUCK ADJ 14A 22LSON-CLIP |
1,375 |
|
Datasheet | D-CAP™, Eco-Mode™ | 22-PowerLFDFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 1.5V | 22V | 0.6V | 5.5V | 14A | 250kHz ~ 1MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 22-LSON-CLIP (6x5) |
|
LT3580EMS8E#TRPBFIC REG BOOST CUK ADJ 2A 8MSOP |
513 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Cuk, SEPIC | Adjustable | 1 | 2.5V | 32V | 5V | 42V (Switch) | 2A (Switch) | 200kHz ~ 2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
LT1931ES5#TRMPBFIC REG CUK ADJ 1A TSOT23-5 |
11,524 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Negative | Cuk | Adjustable | 1 | 2.45V | 16V | -1.255V | -34V | 1A (Switch) | 1.2MHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
|
LT1931AES5#TRPBFIC REG CUK ADJ 1A TSOT23-5 |
3,085 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Negative | Cuk | Adjustable | 1 | 2.45V | 16V | -1.255V | -34V | 1A (Switch) | 2.2MHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
|
LT1931AES5#TRMPBFIC REG CUK ADJ 1A TSOT23-5 |
1,546 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Negative | Cuk | Adjustable | 1 | 2.45V | 16V | -1.255V | -34V | 1A (Switch) | 2.2MHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
|
LT1931ES5#TRPBFIC REG CUK ADJ 1A TSOT23-5 |
1,329 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Negative | Cuk | Adjustable | 1 | 2.45V | 16V | -1.255V | -34V | 1A (Switch) | 1.2MHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-5 |
|
LT8365EMSE#TRPBFIC REG BST SEPIC TRAN DRV 16MSOP |
1,940 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive | Boost, SEPIC | Transistor Driver | 1 | 2.8V | 60V | - | 150V (Switch) | 1.5A (Switch) | 100kHz ~ 500kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT1933ES6#TRPBFIC REG BUCK ADJ 600MA TSOT23-6 |
13,047 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 1.245V | 33.84V | 600mA | 500kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
ADM660ARZ-REELIC REG CHRG PUMP INV 100MA 8SOIC |
8,507 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 1.5V | 7V | -Vin, 2Vin | - | 100mA | 25kHz, 120kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
LT1933ES6#TRMPBFIC REG BUCK ADJ 600MA TSOT23-6 |
6,621 |
|
Datasheet | - | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 1.245V | 33.84V | 600mA | 500kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
|
ADM660ARZ-REEL7IC REG CHRG PUMP INV 100MA 8SOIC |
1,399 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 1.5V | 7V | -Vin, 2Vin | - | 100mA | 25kHz, 120kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADM660ARZIC REG CHRG PUMP INV 100MA 8SOIC |
1,361 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 1.5V | 7V | -Vin, 2Vin | - | 100mA | 25kHz, 120kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
