Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3112MPDHD#PBFIC REG BUCK BOOST ADJ 2.5A 16DFN |
73 |
|
Datasheet | - | 16-WFDFN Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.7V | 15V | 2.5V | 14V | 2.5A | 750kHz | Yes | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-DFN (5x4) |
|
LTC3119MPFE#PBFIC REG BUCK BOOST ADJ 5A 28TSSOP |
56 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.5V | 18V | 0.8V | 18V | 5A | 400kHz ~ 2MHz | Yes | -55°C ~ 150°C (TA) | - | - | Surface Mount | 28-TSSOP-EP |
|
TC7662AMJAIC REG CHG PUMP INV 40MA 8CERDIP |
80 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Ratiometric | Positive or Negative | Charge Pump | Fixed | 1 | 3V | 18V | -Vin, 2Vin | - | 40mA | 12kHz | No | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
TPS50601AY/EMIC REG BUCK ADJ 6A DIE |
5 |
|
Datasheet | - | Die | Box | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 7V | 0.804V | 7V | 6A | 500kHz, 100kHz ~ 1MHz | Yes | -55°C ~ 125°C (TJ) | - | - | Surface Mount | Die |
|
ADP3050ARZ-5IC REG BUCK BOOST 5V 1A 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Down, Step-Up/Step-Down | Positive | Buck, Buck-Boost, SEPIC | Fixed | 1 | 3.6V | 30V | 5V | - | 1A (Switch) | 200kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
ADP2303ARDZ-5.0IC REG BUCK 5V 3A 8SOIC |
0 |
|
Datasheet | ADP2303 | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Fixed | 1 | 3V | 20V | 5V | - | 3A | 700kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
LM2772SD/NOPBIC REG CHARGE PUMP 1.2V 10WSON |
1,000 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Charge Pump | Fixed | 1 | 2.7V | 5.5V | 1.2V | - | 150mA | 1.15MHz | No | -30°C ~ 85°C (TA) | - | - | Surface Mount | 10-WSON (3x3) |
|
LM3203TL/NOPBIC REG BUCK ADJ 500MA 10DSBGA |
1,050 |
|
Datasheet | - | 10-WFBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.7V | 5.5V | 0.8V | 3.6V | 500mA | 2MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 10-DSBGA |
|
LM3676SD-1.8/NOPBIC REG BUCK 1.8V 600MA 8WSON |
1,000 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.9V | 5.5V | 1.8V | - | 600mA | 2MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 8-WSON (3x3) |
|
LM3677TL-1.2/NOPBIC REG BUCK 1.2V 600MA 5DSBGA |
500 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.7V | 5.5V | 1.2V | - | 600mA | 3MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|

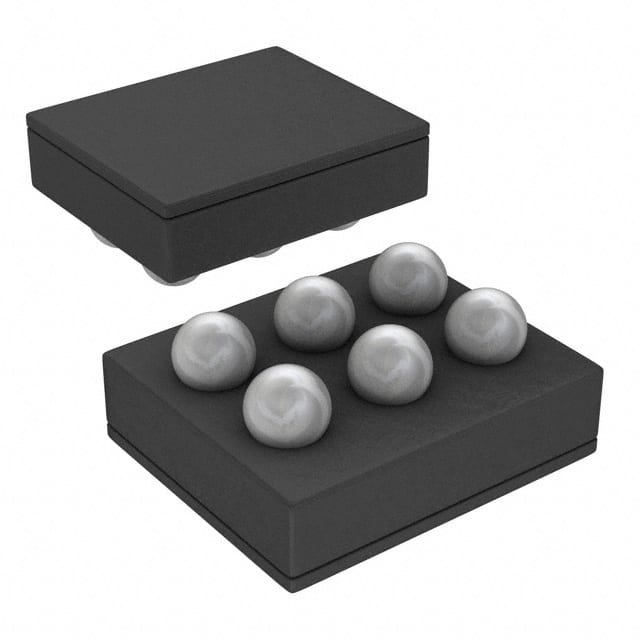

LM8801TME-1.82/NOPBIC REG BUCK 1.82V 600MA 6DSBGA |
500 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 1.82V | - | 600mA | 6MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
LM8801TME-1.2/NOPBIC REG BUCK 1.2V 600MA 6DSBGA |
500 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 1.2V | - | 600mA | 6MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA |
|
TPS562219DDFTIC REG BUCK ADJ 2A TSOT23-8 |
1,000 |
|
Datasheet | D-CAP2™ | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Not For New Designs | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.76V | 7V | 2A | 650kHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-8 |
|
LM3691TL-0.75/NOPBIC REG BUCK 0.75V 1A 6DSBGA |
310 |
|
Datasheet | - | 6-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.3V | 5.5V | 0.75V | - | 1A | 4MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 6-DSBGA (1.5x1.3) |
|
|
LM3677TL-1.8/NOPBIC REG BUCK 1.8V 600MA 5DSBGA |
500 |
|
Datasheet | - | 5-WFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.7V | 5.5V | 1.8V | - | 600mA | 3MHz | Yes | -30°C ~ 85°C (TA) | - | - | Surface Mount | 5-DSBGA (1.41x1.08) |
|
TPS6208812YFPTIC REG BUCK 1.2V 3A 6DSBGA |
500 |
|
Datasheet | DCS-Control™ | 6-XFBGA, DSBGA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 2.4V | 5.5V | 1.2V | - | 3A | 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-DSBGA |
|
LT1109CZ-5#PBFIC REG BOOST 5V 1.2A TO92-3 |
0 |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Active | Step-Up | Positive | Boost | Fixed | 1 | 3V | 20V | 5V | - | 1.2A (Switch) | 120kHz | No | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-92-3 |
|
|
LTC1503CS8-2#PBFIC REG CHARGE PUMP 2V 100MA 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Charge Pump | Fixed | 1 | 2.4V | 6V | 2V | - | 100mA | 600kHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LTC1551LCS8-4.1#PBFIC REG CHARG PUMP -4.1V 20MA 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Up/Step-Down | Negative | Charge Pump | Fixed | 1 | 4.5V | 5.5V | -4.1V | - | 20mA | 900kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LTC1261LCS8-4#PBFIC REG CHARGE PUMP -4V 20MA 8SO |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Up/Step-Down | Negative | Charge Pump | Fixed | 1 | 4.5V | 5.25V | -4V | - | 20mA | 650kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
