Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2596SX-5.0/NOPBIC REG BUCK 5V 3A TO263 |
699 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 4.5V | 40V | 5V | - | 3A | 150kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-5) |
|

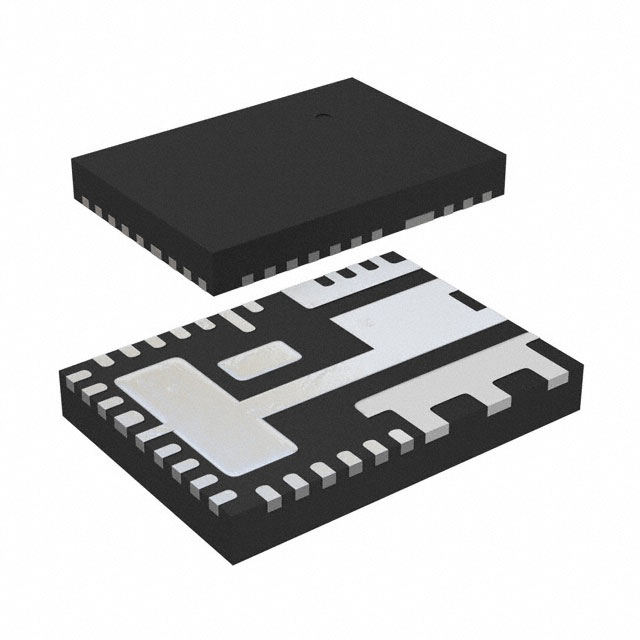

IR38164MTRPBFAUMA1IC REG BUCK ADJ 30A 24PQFN |
2,692 |
|
Datasheet | - | 24-PowerVFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 1.5V | 16V | 0.5V | 14V | 30A | 500kHz ~ 1.5MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 24-PQFN (5x7) |
|
LM3102QMHX/NOPBIC REG BUCK ADJ 2.5A 20HTSSOP |
2,262 |
|
Datasheet | SIMPLE SWITCHER® | 20-PowerTSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 42V | 0.8V | 7V | 2.5A | Up to 1MHz | Yes | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 20-HTSSOP |
|
TPS54560BQDDARQ1IC REG BCK SPLIT RAIL ADJ 8SOPWR |
1,566 |
|
Datasheet | Eco-Mode™ | 8-PowerSOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Step-Down | Positive | Buck, Split Rail | Adjustable | 1 | 4.5V | 60V | 0.8V | 58.8V | 5A | 100kHz ~ 2.5MHz | No | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SO PowerPad |
|
LTC3549EDCB#TRMPBFIC REG BUCK ADJ 250MA 6DFN |
3,000 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 1.6V | 5.5V | 0.611V | 5.5V | 250mA | 2.25MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x3) |
|
|
LTC3549EDCB#TRPBFIC REG BUCK ADJ 250MA 6DFN |
2,979 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 1.6V | 5.5V | 0.611V | 5.5V | 250mA | 2.25MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-DFN (2x3) |
|
LM22677TJ-ADJ/NOPBIC REG BUCK ADJ 5A TO263-7 |
1,906 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-7 Thin | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 42V | 1.285V | 37V | 5A | 500kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263-7 Thin |
|
NCV891330PD50R2GIC REG BUCK 5V 3A 8SOIC |
4,924 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 3.7V | 36V | 5V | - | 3A | 2MHz | No | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC-EP |
|
LT3494EDDB#TRMPBFIC REG BOOST ADJ 115MA 8DFN |
21,473 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.3V | 16V | 2.3V | 40V (Switch) | 115mA (Switch) | - | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (3x2) |
|
|
LT3494AEDDB#TRPBFIC REG BOOST ADJ 225MA 8DFN |
11,647 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 2.3V | 16V | 2.3V | 40V (Switch) | 225mA (Switch) | - | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-DFN (3x2) |
|
LT8607EDC#TRPBFIC REG BUCK ADJ 750MA 8DFN |
7,216 |
|
Datasheet | - | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 1.8V | 12V | 750mA | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|
LT8607EMSE#TRPBFIC REG BUCK ADJ 750MA 10MSOP |
3,365 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3V | 42V | 1.8V | 12V | 750mA | 200kHz ~ 2.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
LM2670S-ADJ/NOPBIC REG BUCK ADJ 3A TO263 |
774 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 8V | 40V | 1.2V | 37V | 3A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
|
TPS54360DDAIC REG BCK SPLIT RAIL ADJ 8SOPWR |
1,241 |
|
Datasheet | Eco-Mode™ | 8-PowerSOIC (0.154", 3.90mm Width) | Tube | Not For New Designs | Step-Down | Positive | Buck, Split Rail | Adjustable | 1 | 4.5V | 60V | 0.8V | 58.8V | 3.5A | 100kHz ~ 2.5MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SO PowerPad |
|
TPS546A24ARVFRIC REG BUCK ADJ 10A 40LQFN |
5,194 |
|
Datasheet | - | 40-PowerLFQFN | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 2.95V | 18V | 0.5V | 5.5V | 10A | 255kHz ~ 1.5MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 40-LQFN-CLIP (7x5) |
|
LM25575MH/NOPBIC REG BUCK ADJ 1.5A 16HTSSOP |
3,997 |
|
Datasheet | SIMPLE SWITCHER® | 16-PowerTSSOP (0.173", 4.40mm Width) | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 6V | 42V | 1.225V | 40V | 1.5A | 50kHz ~ 1MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-HTSSOP |
|
|
LM2677SX-5.0/NOPBIC REG BUCK 5V 5A TO263 |
1,182 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Fixed | 1 | 8V | 40V | 5V | - | 5A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
|
LM2677SX-ADJ/NOPBIC REG BUCK ADJ 5A TO263 |
1,580 |
|
Datasheet | SIMPLE SWITCHER® | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 8V | 40V | 1.21V | 37V | 5A | 260kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | TO-263 (DDPAK-7) |
|
LT8334RDE#TRPBFIC REG BST SEPIC ADJ 5A 12DFN |
1,366 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, SEPIC | Adjustable | 1 | 2.8V | 40V | - | 40V (Switch) | 5A | 300kHz ~ 2MHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-DFN (4x3) |
|
TPS54620RGYTIC REG BUCK ADJ 6A 14VQFN |
3,043 |
|
Datasheet | SWIFT™ | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 17V | 0.8V | 15V | 6A | 200kHz ~ 1.6MHz | Yes | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-VQFN (3.5x3.5) |
