Voltage Regulators - DC DC Switching Regulators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Function | Output Configuration | Topology | Output Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Frequency - Switching | Synchronous Rectifier | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3604IMSE#PBFIC REG BUCK ADJ 2.5A 16MSOP |
1,165 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 15V | 0.6V | 14.52V | 2.5A | 2MHz ~ 4MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
LT8301JS5#WTRMPBFIC REG FLYBACK 1.2A TSOT23-5 |
945 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Flyback | - | 1 | 2.7V | 42V | - | 65V (Switch) | 1.2A (Switch) | Down to 10kHz | No | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | TSOT-23-5 |
|
|
LT8303HS5#TRMPBFIC REG FLYBCK ADJ 450MA TSOT23-5 |
3,127 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive, Isolation Capable | Flyback | Adjustable | 1 | 5.5V | 100V | - | - | 450mA | 7kHz ~ 350kHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
LTC3417AEFE#PBFIC REG BUCK ADJ 1A/1.5A 20TSSOP |
151 |
|
Datasheet | - | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.25V | 5.5V | 0.8V | 5V | 1A, 1.5A | 1.5MHz, 600kHz ~ 4MHz | Yes | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP-EP |
|
LTC3569IUDC#PBFIC REG BUCK ADJ TRPL 20QFN |
91 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 3 | 2.5V | 5.5V | 0.425V | 5.5V | 600mA, 1.2A | 2.25MHz, 1MHz ~ 3MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3x4) |
|
LT1956EGN-5#PBFIC REG BUCK 5V 1.5A 16SSOP |
29 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Buck | Fixed | 1 | 5.5V | 60V | 5V | - | 1.5A (Switch) | 500kHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SSOP |
|
LT3640EFE#PBFIC REG BUCK ADJ DL 28TSSOP |
0 |
|
Datasheet | - | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 2 | 2.5V | 35V | 0.6V, 1.265V | 33.97V | 1.1A, 1.3A | 500kHz ~ 2MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 28-TSSOP-EP |
|
LTC3402EMS#TRPBFIC REG BOOST ADJ 2A 10MSOP |
1,170 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.5V | 5V | 2.6V | 5.5V | 2A (Switch) | 2MHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
LT1375HVCS8#PBFIC REG BUCK SEPIC ADJ 1.5A 8SO |
322 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Down | Positive | Buck, SEPIC | Adjustable | 1 | 5V | 30V | 2.42V | 25.8V | 1.5A (Switch) | 500kHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LT1305CS8#PBFIC REG BOOST 5V 2.5A 8SO |
220 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Up | Positive | Boost | Fixed | 1 | 1.8V | 10V | 5V | - | 2.5A (Switch) | 155kHz | No | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LTC3402EMS#PBFIC REG BOOST ADJ 2A 10MSOP |
104 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Step-Up | Positive | Boost | Adjustable | 1 | 0.5V | 5V | 2.6V | 5.5V | 2A (Switch) | 2MHz | No | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
LT3685IDD#PBFIC REG BUCK ADJ 2A 10DFN |
46 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tube | Active | Step-Down | Positive | Buck | Adjustable | 1 | 3.6V | 36V | 0.79V | 20V | 2A | 200kHz ~ 2.4MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-DFN (3x3) |
|
LT3579IUFD-1#PBFIC REG BST CHARGE PUMP ADJ 20QFN |
95 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tube | Active | Step-Up, Step-Up/Step-Down | Positive or Negative | Boost, Charge Pump, Cuk, Flyback, SEPIC | Adjustable | 1 | 2.5V | 16V | 1.215V | 42V (Switch) | 6A (Switch) | 200kHz ~ 2.5MHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (4x5) |
|
|
LT1424CS8-5#PBFIC REG FLYBACK 5V 400MA 8SO |
300 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Flyback | Fixed | 1 | 2.8V | 20V | 5V | - | 400mA | 285kHz | No | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
LT8302IS8E-3#PBFIC REG FLYBACK 3.6A 8SOIC |
160 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Flyback | - | 1 | 3V | 42V | - | 65V (Switch) | 3.6A | Down to 12kHz | No | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
LT1172IN8#PBFIC REG BUCK BST ADJ 1.25A 8PDIP |
336 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Step-Up, Step-Down, Step-Up/Step-Down | Positive or Negative | Buck, Boost, Cuk, Flyback, Forward Converter | Adjustable | 1 | 3V | 40V | 1.244V | 65V (Switch) | 1.25A (Switch) | 100kHz | No | -40°C ~ 100°C (TJ) | - | - | Through Hole | 8-PDIP |
|

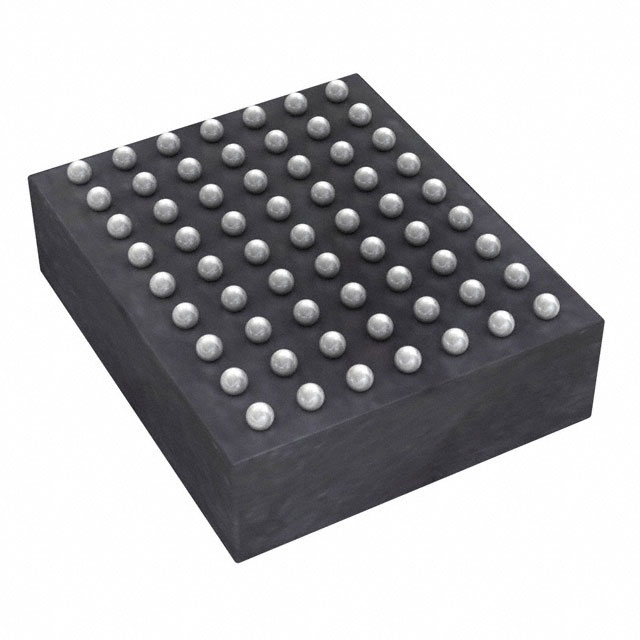

LTC7130EY#PBFIC REG BUCK ADJ 20A 63BGA |
126 |
|
Datasheet | - | 63-FBGA | Tray | Active | Step-Down | Positive | Buck | Adjustable | 1 | 4.5V | 20V | 0.6V | 5.5V | 20A | 250kHz ~ 770kHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 63-BGA (7.5x6.25) |
|
|
LT8300HS5#TRMPBFIC REG FLYBACK 260MA TSOT23-5 |
3,417 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Step-Up/Step-Down | Positive or Negative, Isolation Capable | Flyback | - | 1 | 6V | 100V | - | - | 260mA | 7.5kHz ~ 750kHz | No | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TSOT-23-5 |
|
|
LTC3130IMSE#PBFIC REG BUCK BST ADJ 600MA 16MSOP |
493 |
|
Datasheet | - | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.4V | 25V | 1V | 25V | 600mA | 1.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LTC3130IUDC#PBFIC REG BUCK BST ADJ 600MA 20QFN |
114 |
|
Datasheet | - | 20-WFQFN Exposed Pad | Tube | Active | Step-Up/Step-Down | Positive | Buck-Boost | Adjustable | 1 | 2.4V | 25V | 1V | 25V | 600mA | 1.2MHz | Yes | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 20-QFN (3x4) |
