Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD587KRIC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.05% | 10ppm/°C | 4µVp-p | - | 13.5V ~ 36V | 4mA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
AD588JQIC VREF SERIES 0.03% 16CDIP |
0 |
|
Datasheet | 16-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Programmable | ±5V, ±10V | - | 10 mA | ±0.03% | 3ppm/°C | 6µVp-p | - | 10.8V ~ 36V | 10mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-CERDIP |
|
AD588AQIC VREF SERIES 0.03% 16CDIP |
0 |
|
Datasheet | 16-CDIP (0.300", 7.62mm) | - | Tube | Discontinued at Digi-Key | Series | Programmable | ±5V, ±10V | - | 10 mA | ±0.03% | 3ppm/°C | 6µVp-p | - | 10.8V ~ 36V | 10mA | - | -25°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|
AD584JHIC VREF SERIES 0.3% TO99-8 |
0 |
|
Datasheet | TO-99-8 Metal Can | - | Bulk | Active | Series | Programmable | 2.5V, 5V, 7.5V, 10V | - | 10 mA | ±0.3% | 30ppm/°C | 50µVp-p | - | 4.5V ~ 30V | 1mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-99-8 |
|

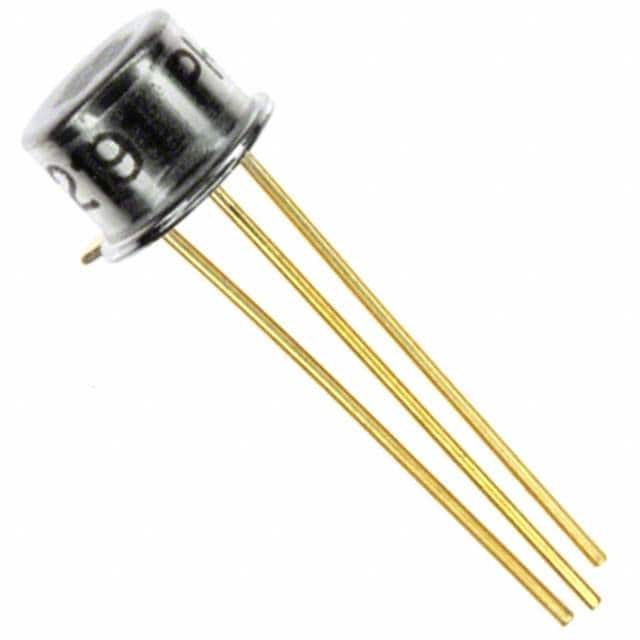

AD580LHIC VREF SERIES 0.4% TO52-3 |
0 |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.4% | 25ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-52-3 |
|
|
ADR02ARIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±0.1% | 10ppm/°C | 10µVp-p | - | 7V ~ 36V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADR03BRIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.1% | 3ppm/°C | 6µVp-p | - | 4.5V ~ 36V | 1mA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADR421BRIC VREF SERIES 0.04% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | XFET® | Tube | Obsolete | Series | Fixed | 2.5V | - | 10 mA | ±0.04% | 3ppm/°C | 1.75µVp-p | - | 4.5V ~ 18V | 600µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
REF01EZIC VREF SERIES 0.3% 8CERDIP |
0 |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | REF01 | Tube | Active | Series | Fixed | 10V | - | 10 mA | ±0.3% | 8.5ppm/°C | 30µVp-p | - | 13V ~ 33V | 1.4mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
REF02CPIC VREF SERIES 1% 8DIP |
0 |
|
Datasheet | 8-DIP (0.300", 7.62mm) | REF02 | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±1% | 65ppm/°C | 15µVp-p | - | 8V ~ 36V | 1.6mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-PDIP |
|
|
REF02CSIC VREF SERIES 1% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF02 | Tube | Obsolete | Series | Fixed | 5V | - | 10 mA | ±1% | 65ppm/°C | 15µVp-p | - | 8V ~ 36V | 1.6mA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF191ESIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 2.048V | - | 30 mA | ±0.1% | 5ppm/°C | 20µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF192ESIC VREF SERIES 0.08% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 2.5V | - | 30 mA | ±0.08% | 5ppm/°C | 25µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF192FSIC VREF SERIES 0.2% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 2.5V | - | 30 mA | ±0.2% | 10ppm/°C | 25µVp-p | - | 3V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF195ESIC VREF SERIES 0.04% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 5V | - | 30 mA | ±0.04% | 5ppm/°C | 50µVp-p | - | 5.1V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF195GSIC VREF SERIES 0.2% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 5V | - | 30 mA | ±0.2% | 25ppm/°C | 50µVp-p | - | 5.1V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF198ESIC VREF SERIES 0.05% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | REF19 | Tube | Obsolete | Series | Fixed | 4.096V | - | 30 mA | ±0.05% | 5ppm/°C | 40µVp-p | - | 4.5V ~ 15V | 45µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
REF43GSIC VREF SERIES 0.1% 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tray | Obsolete | Series | Fixed | 2.5V | - | 20 mA | ±0.1% | 25ppm/°C | - | 10µVrms | 4.5V ~ 40V | 450µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
AD580SHIC VREF SERIES 1% TO52-3 |
0 |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±1% | 55ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
|
AD580THIC VREF SERIES 0.4% TO52-3 |
0 |
|
Datasheet | TO-206AC, TO-52-3 Metal Can | - | Bulk | Active | Series | Fixed | 2.5V | - | 10 mA | ±0.4% | 25ppm/°C | 8µVp-p | - | 4.5V ~ 30V | 1.5mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-52-3 |
