Voltage Reference
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Reference Type | Output Type | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Current - Output | Tolerance | Temperature Coefficient | Noise - 0.1Hz to 10Hz | Noise - 10Hz to 10kHz | Voltage - Input | Current - Supply | Current - Cathode | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL21010CFH333Z-TKIC VREF SERIES 0.2% SOT23-3 |
0 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Series | Fixed | 3.3V | - | 25 mA | ±0.2% | 50ppm/°C | 95µVp-p | 40µVrms | 3.4V ~ 5.5V | 100µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
LM285BXM-1.2/NOPBIC VREF SHUNT 1% 8SOIC |
13 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 30ppm/°C | - | 60µVrms | - | - | 10 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LM4140BCM-1.2/NOPBIC VREF SERIES 0.1% 8SOIC |
2 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tube | Active | Series | Fixed | 1.25V | - | 8 mA | ±0.1% | 6ppm/°C | 2.2µVp-p | - | 1.8V ~ 5.5V | 375µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|
ADR365WHUJZ-R7IC VREF SERIES 0.16% TSOT5 |
0 |
|
Datasheet | SOT-23-5 Thin, TSOT-23-5 | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 5 mA | ±0.16% | 25ppm/°C | 12.8µVp-p | - | 5.3V ~ 15V | 190µA | - | -40°C ~ 150°C (TA) | Automotive | - | Surface Mount | TSOT-23-5 |
|
LT6654AHLS8-2.048#PBFIC VREF SERIES 0.05% 8CLCC |
0 |
|
Datasheet | 8-CLCC | - | Tray | Active | Series | Fixed | 2.048V | - | 10 mA | ±0.05% | 10ppm/°C | 1ppmp-p | 2ppmrms | 2.548V ~ 36V | 600µA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-CLCC (5x5) |
|
LT6656BCDC-5#TRMPBFIC VREF SERIES 0.2% 6DFN |
1 |
|
Datasheet | 6-WFDFN Exposed Pad | - | Tape & Reel (TR) | Active | Series | Fixed | 5V | - | 5 mA | ±0.2% | 20ppm/°C | 30ppmp-p | 140µVrms | 5.5V ~ 18V | 1.5µA | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 6-DFN (2x2) |
|
LT6658BIDE-3.3#PBFIC VREF SERIES 6V 0.1% 16DFN |
0 |
|
Datasheet | 16-WFDFN Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-DFN (4x3) |
|
LT6658BIMSE-3.3#PBFIC VREF SERIES 6V 0.1% 16MSOP |
10 |
|
Datasheet | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
|
LT6658BHMSE-3.3#PBFIC VREF SERIES 6V 0.1% 16MSOP |
5 |
|
Datasheet | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | - | Tube | Active | Series, Dual | Adjustable (Fixed) | 3.3V | 6 V | 150 mA | ±0.1% | 20ppm/°C | 1.7ppmp-p | 2ppmrms | 4.5V ~ 36V | 3mA | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|

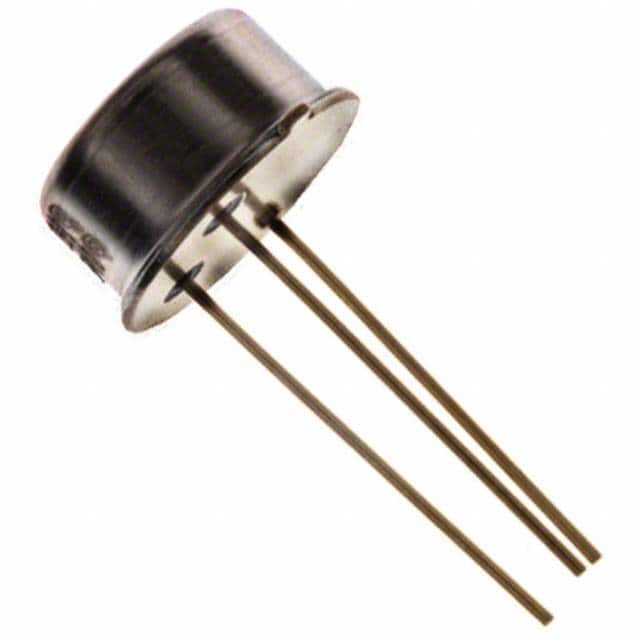

AD581LHIC VREF SERIES 0.05% TO5-3 |
0 |
|
Datasheet | TO-205AA, TO-5-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.05% | 5ppm/°C | 40µVp-p | - | 13V ~ 30V | 1mA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-5-3 |
|
AD688AQIC VREF SERIES 0.05% 16CDIP |
0 |
|
Datasheet | 16-CDIP (0.300", 7.62mm) | - | Tube | Active | Series | Fixed | ±10V | - | 10 mA | ±0.05% | 3ppm/°C | 6µVp-p | - | 12V ~ 38V | 12mA | - | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-CERDIP |
|

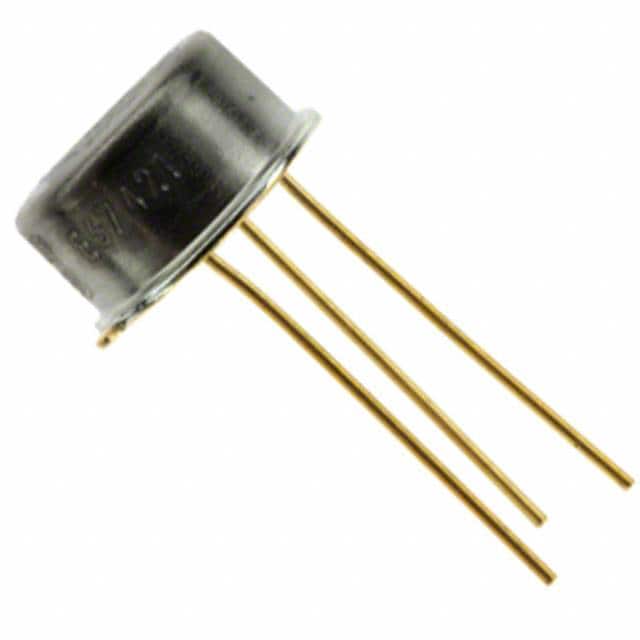

AD581UHIC VREF SERIES 0.05% TO5-3 |
0 |
|
Datasheet | TO-205AA, TO-5-3 Metal Can | - | Bulk | Active | Series | Fixed | 10V | - | 10 mA | ±0.05% | 10ppm/°C | 40µVp-p | - | 13V ~ 30V | 1mA | - | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-5-3 |
|
AD589MHIC VREF SHUNT -2.83%/+1.22% TO51 |
0 |
|
Datasheet | TO-51-2 Metal Can | - | Bulk | Active | Shunt | Fixed | 1.235V | - | 5 mA | -2.83%, +1.22% | 10ppm/°C | - | 5µVrms | - | - | 50 µA | 0°C ~ 70°C (TA) | - | - | Through Hole | TO-51-2 |
|
TLA432AIDBZRALL-CAPACITOR STABLE PRECISION P |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 200 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TLA431AIDBZRALL-CAPACITOR STABLE PRECISION P |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 200 µA | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
|
TLA432AQDBZRALL-CAPACITOR STABLE PRECISION P |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 200 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
|
AS431AKTR-G1IC VREF SHUNT ADJ 0.5% SOT23-5 |
0 |
|
- |
SC-74A, SOT-753 | - | Tape & Reel (TR) | Active | Shunt | Adjustable | 2.5V | 36 V | 100 mA | ±0.5% | 20ppm/°C Typical | - | - | - | - | 1 mA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
LM4040C30QFTAIC VREF SHUNT 3V SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 3V | - | 15 mA | ±0.5% | 100ppm/°C | - | 35µVrms | - | - | 70 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM4040C50QFTAIC VREF SHUNT 5V SOT23-3 |
0 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 5V | - | 15 mA | ±0.5% | 100ppm/°C | - | 80µVrms | - | - | 83 µA | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SOT-23-3 |
|
|
LM4040D41FTAIC VREF SHUNT 1% SOT23 |
0 |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Shunt | Fixed | 4.1V | - | 15 mA | ±1% | 150ppm/°C | - | 64µVrms | - | - | 88 µA | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-3 |
