Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BTS700201ESPXUMA1PROFET PG-TSDSO-24 |
0 |
|
Datasheet | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | 6V ~ 18V | Not Required | 23.3A | 2.3mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24 |
|
BTS700121ESPXUMA1PROFET PG-TSDSO-24 |
0 |
|
Datasheet | 24-TSSOP (0.154", 3.90mm Width) Exposed Pad | PROFET® | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | Logic | 6V ~ 18V | Not Required | 31.3A | 1.4mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TSDSO-24 |
|
VND5T016ASP-EIC PWR DRIVER N-CHAN 1:1 PWRSO16 |
0 |
|
Datasheet | 16-PowerBSOP (0.370", 9.40mm Width) | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 70A | 16mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-16™ |
|
|
VND5T100LAJ-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
Datasheet | 12-LSOP (0.154", 3.90mm Width) Exposed Pad | VIPower™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 22A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12 |
|
|
VND5T100LAS-EIC PWR DRIVER N-CHAN 1:1 16SOIC |
0 |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | VIPOWER™ | Tube | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 36V | Not Required | 22A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-SO |
|
|
FPF2495BUCXIC PWR LOAD SWITCH 1:1 9WLCSP |
0 |
|
Datasheet | 9-UFBGA, WLCSP | IntelliMAX™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | - | 28V | 2.5V ~ 5.5V | 2.8A | 75mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 9-WLCSP (1.22x1.22) |
|
|
FPF3687UCXIC LOAD SWITCH WLCSP |
0 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ULN2803ADW-PULN2803ADW-P |
0 |
|
- |
18-SOIC (0.295", 7.50mm Width) | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|

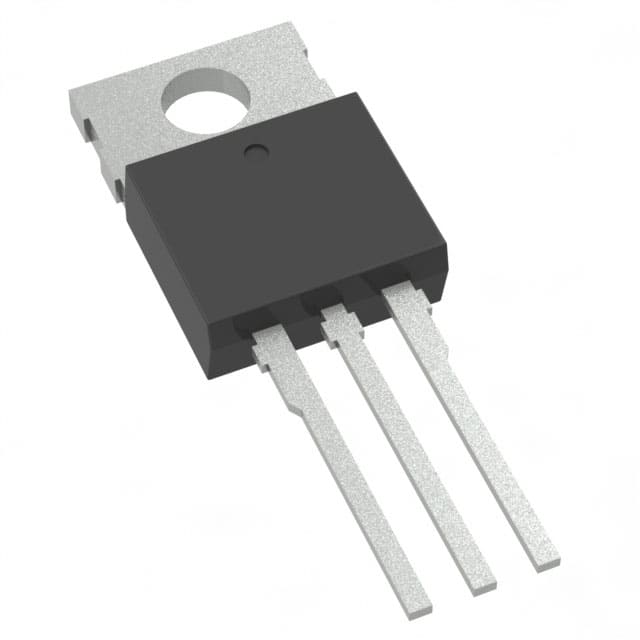

BTS133AKSA1IC PWR SWITCH |
0 |
|
- |
TO-220-3 | - | Tube | Discontinued at Digi-Key | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 60V | Not Required | 7A | 40mOhm | Non-Inverting | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature, Over Voltage, Short Circuit | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-1 |
|
|
AP2822HKETR-G1IC PWR SWITCH N-CHAN 1:1 SOT23-5 |
0 |
|
Datasheet | SC-74A, SOT-753 | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 85mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Short Circuit | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
BSP76E6327HUMA1IC PWR SWTCH N-CHAN 1:1 SOT223-4 |
0 |
|
- |
- | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AP22716AKEWT-7IC PWR SWITCH |
0 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LM3525MX-H/S7002348PROTOTYPE |
0 |
|
- |
8-SOIC (0.154", 3.90mm Width) | - | Bulk | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1A | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
JM38510/12903BPADUAL VERY-HIGH SPEED, HIGH-CURRE |
0 |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
|
JM38510/12905BPADUAL VERY-HIGH SPEED, HIGH-CURRE |
0 |
|
Datasheet | 8-CDIP (0.300", 7.62mm) | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
|
SCP380HSNAJAAT1GMODULE |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FPF2498BUCX-SFPF2498BUCX-S |
0 |
|
- |
6-UFBGA, WLCSP | - | Bulk | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3.5V ~ 12V | Not Required | 1.7A | 80mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), Over Temperature, Over Voltage, Reverse Current, UVLO | -40°C ~ 150°C (TA) | - | - | Surface Mount | 6-WLCSP (1.3x1.05) |
|
|
BA5968FPIC POWER MANAGEMENT SMD |
0 |
|
- |
28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | - | Tape & Reel (TR) | Obsolete | General Purpose | 5 | 1:5 | - | - | - | - | 4.3V ~ 9V | - | - | Non-Inverting | - | - | -40°C ~ 85°C | - | - | Surface Mount | 28-HSOP-M |
|
|
NIS3071MTW5TWGELECTRONIC FUSE (EFUSE) 4-CHANNE |
0 |
|
Datasheet | 16-WQFN Exposed Pad | - | Bulk | Discontinued at Digi-Key | General Purpose | 4 | 1:1 | High Side | N-Channel | - | 60V | Not Required | 2.5A, 2.5A, 2.5A, 2.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-WQFN (5x6) |
|
|
NIS3071MTW3TWGELECTRONIC FUSE (EFUSE) 4-CHANNE |
0 |
|
Datasheet | 16-WQFN Exposed Pad | NIS3071 | Bulk | Discontinued at Digi-Key | General Purpose | 4 | 1:1 | High Side | N-Channel | - | 60V | Not Required | 2.5A, 2.5A, 2.5A, 2.5A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount, Wettable Flank | 16-WQFN (5x6) |
