Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIR3316STRLIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 23A | 5.5mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
AUIR3317IC PWR SWITCH N-CHAN 1:1 TO220 |
0 |
|
Datasheet | TO-220-5 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 7A | 5.5mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Through Hole | TO-220 |
.jpg)
|
AUIR3317SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 7A | 5.5mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
AUIR3317STRLIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 7A | 5.5mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK |
|
|
AUIR33401SIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-7, D2PAK (6 Leads + Tab) | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 33A | 3mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK (7-Lead) |
|
|
AUIR33401STRLIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-7, D2PAK (6 Leads + Tab) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 18V | Not Required | 33A | 3mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | D2PAK (7-Lead) |
|
FPF2700MXIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | AccuPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.8V ~ 36V | Not Required | 2A | 88mOhm | Non-Inverting | Auto Restart, Power Good, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
NCP5360RMNR2GIC PWR DRIVER N-CHAN 1:1 56QFN |
0 |
|
Datasheet | 56-VFQFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side or Low Side | N-Channel | - | 4.5V ~ 25V | - | 40A | - | - | PWM Input | Over Temperature, UVLO | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 56-QFN (8x8) |
|
NCP380LMU10AATBGIC PWR SWITCH P-CHAN 1:1 6UDFN |
0 |
|
Datasheet | 6-UDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1A | 55mOhm | Non-Inverting | Enable Input Low, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (2x2) |
|
|
NCP380LMU15AATBGIC PWR SWITCH P-CHAN 1:1 6UDFN |
0 |
|
Datasheet | 6-UDFN Exposed Pad | - | Cut Tape (CT) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.5V ~ 5.5V | Not Required | 1.5A | 55mOhm | Non-Inverting | Enable Input Low, Slew Rate Controlled, Status Flag | Current Limiting (Fixed), UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (2x2) |
.JPG)
|

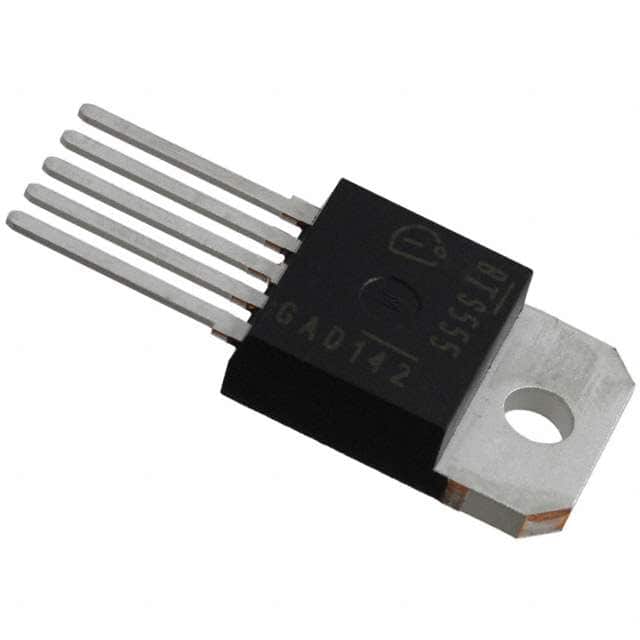

BTS555E3146HKSA1IC PWR SWITCH N-CH 1:1 TO218AB/5 |
0 |
|
Datasheet | TO-218-5 | PROFET® | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5V ~ 34V | Not Required | 128A | 1.9mOhm | Non-Inverting | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-218AB/5 |
|
NCP382HMN10AATXGIC DISTR LOAD SWITCH 2CH 8DFN |
0 |
|
Datasheet | 8-VDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | - | - | - | - | 2.5V ~ 5.5V | - | 1A | 95mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (3x3) |
|
|
NCP382HMN15AATXGIC DISTR LOAD SWITCH 2CH 8DFN |
0 |
|
Datasheet | 8-VDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | - | - | - | - | 2.5V ~ 5.5V | - | 1.5A | 95mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (3x3) |
|
NCP382HMN20AATXGIC DISTR LOAD SWITCH 2CH 8DFN |
0 |
|
Datasheet | 8-VDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | - | - | - | - | 2.5V ~ 5.5V | - | 2A | 95mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (3x3) |
|
NCP382LMN10AATXGIC DISTR LOAD SWITCH 2CH 8DFN |
0 |
|
Datasheet | 8-VDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | - | - | - | - | 2.5V ~ 5.5V | - | 1A | 95mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 8-DFN (3x3) |
|
PI5PD2069WEXIC PWR SWITCH N-CHAN 1:1 8SOIC |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2.1A | 70mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 105°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
BTS6460SFXUMA1IC PWR SWITCH N-CHAN 3:4 DSO-36 |
0 |
|
Datasheet | 36-BSSOP (0.295", 7.50mm Width) | Reversave™ | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 3:4 | High Side | N-Channel | SPI | 8V ~ 17V | 3V ~ 5.5V | - | 3.5mOhm, 11mOhm | - | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-43 |
|
|
BTS6480SFXUMA1IC PWR SWITCH N-CHAN 3:4 DSO-36 |
0 |
|
Datasheet | 36-BSSOP (0.295", 7.50mm Width) | Reversave™ | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 3:4 | High Side | N-Channel | SPI | 4.5V ~ 28V | 3V ~ 5.5V | - | 3.5mOhm, 11mOhm | - | Auto Restart | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-43 |
|
TND017SW-TL-EIC PWR DRIVER N-CHANNEL 1:1 8SOP |
0 |
|
Datasheet | 8-SOIC (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 2 | 1:1 | Low Side | N-Channel | On/Off | 4V ~ 10V | Not Required | 1.5A | 300mOhm | - | - | Current Limiting (Fixed), Over Temperature, Over Voltage | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOP |
|
|
TND315S-TL-EIC PWR DRIVER EXPD 1:2 8SOP |
0 |
|
Datasheet | 8-SOIC (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | - | - | On/Off | 4.5V ~ 25V | Not Required | - | 8Ohm | Non-Inverting | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP |
