Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPS1031RPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 3A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPS1011RPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 6A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IPS1011SPBFIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 6.5A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
.jpg)
|
98-0369PBFIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 23A | 5.5mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IPS2041RPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 2 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 1.4A | 100mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPS1041RPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 2.2A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
AUXHA1021STRLIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 4.8A | 20mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
AUXHA1021RTRLIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 4.3A | 20mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPS1031STRRPBFIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 3.3A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IPS1011STRRPBFIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 6.5A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
IR3316STRRPBFIC PWR SWITCH N-CHAN 1:1 D2PAK |
0 |
|
Datasheet | TO-263-5, D2PAK (4 Leads + Tab), TO-263BB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 26V | Not Required | 23A | 5.5mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (SMD-220 5-Lead) |
|
|
IPS1041RTRRPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 2.2A | 80mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPS1031RTRRPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 3A | 40mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPS1021RTRRPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 4.3A | 20mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
|
IPS1011RTRRPBFIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 28V (Max) | Not Required | 6A | 10mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
VN330SP-32-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
- |
PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | On/Off | 10V ~ 36V | Not Required | 1A | 200mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN460SP-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | - | Tube | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 20mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VN460SPTR-EIC PWR DRIVER N-CHAN 1:1 PWRSO10 |
0 |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 25A | 20mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|

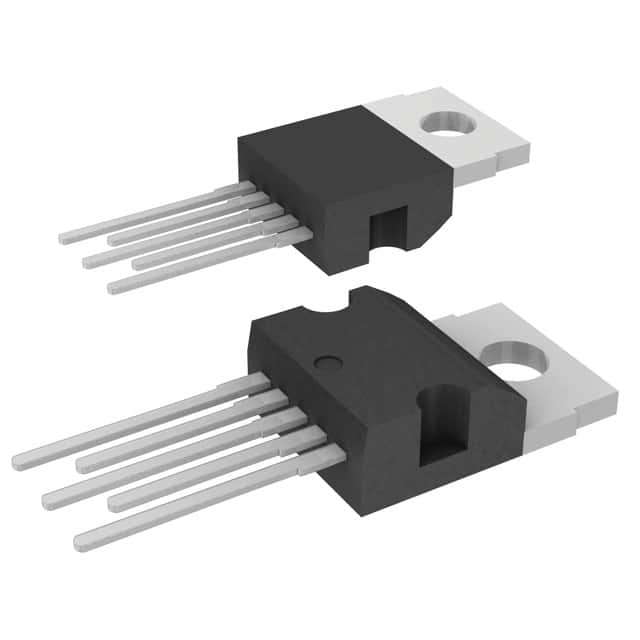

VN750-12-EIC PWR DRVR N-CH 1:1 5PENTAWATT |
0 |
|
Datasheet | Pentawatt-5 (Straight Leads, Staggered Depth) | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Through Hole | 5-PENTAWATT |
|
VN750PEP-EIC PWR DRVR N-CHAN 1:1 PWRSSO12 |
0 |
|
- |
PowerSSO-12 | VIPower™ | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 5.5V ~ 36V | Not Required | 6A | 60mOhm (Max) | Non-Inverting | Auto Restart, Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-12™ |
