Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC1314CS#TRPBFIC PWR SWITCH N-CHAN 2:1 14SOIC |
0 |
|
Datasheet | 14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | PCMCIA Switch | 1 | 2:1 | High Side | N-Channel | On/Off | 0V ~ 12.6V | 4.5V ~ 5.5V | 120mA | 550mOhm | - | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 14-SO |
|
FPF2702MXIC PWR SWITCH N-CHANNEL 1:1 8SO |
0 |
|
Datasheet | 8-SOIC (0.154", 3.90mm Width) | AccuPower™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.8V ~ 36V | Not Required | 2A | 88mOhm | Inverting | Power Good, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
MC15XS3400DPNAIC PWR SWITCH N-CHAN 1:1 24PQFN |
0 |
|
Datasheet | 24-PowerQFN | - | Tray | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 15mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
VB025MSP613TRIC PWR DRIVER COIL 380V PWRSO10 |
0 |
|
- |
PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 10-PowerSO |
|
AUIPS7221RTRLIC PWR SWITCH N-CHANNEL 1:1 DPAK |
0 |
|
Datasheet | TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 6V ~ 60V | - | - | 30mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-TO252-5 |
|
U6815BM-NFLIC PWR DRIVER N/P-CHAN 0.05 28SO |
0 |
|
- |
28-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 12 | 1:12 | High Side or Low Side | N/P-Channel | SPI | 40V (Max) | 4.5V ~ 5.5V | 600mA | 2Ohm (Max), 1.5Ohm (Max) | - | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SO |
|
TDE1767DPIC PWR DRIVER BIPOLAR 1:1 8DIP |
0 |
|
Datasheet | 8-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Relay, Solenoid Driver | 1 | 1:1 | High Side | Bipolar | On/Off | 6V ~ 45V | Not Required | 1.2A | - | Inverting, Non-Inverting | - | Current Limiting (Adjustable), Over Temperature | -25°C ~ 85°C (TA) | - | - | Through Hole | 8-DIP |
|
MC17XS6500EEKR2IC PWR SWITCH N-CHAN 1:1 32SOIC |
0 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 6 | 2:3 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
|
VBG15NB22T5SPTRIC PWR DRVR BIPOLAR 1:1 PWRSO10 |
0 |
|
- |
PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | On/Off | 250V (Max) | 14V | 17A | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
VBG15NB22T5TR-EIC PWR DRVR BIPOLAR 1:1 PWRSO10 |
0 |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | On/Off | 250V (Max) | 14V | 17A | - | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
MC33981BPNAIC PWR SWITCH N-CHAN 1:1 16QFN |
0 |
|
- |
16-PowerQFN | - | Tray | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | PWM | 6V ~ 27V | - | 40A | 4mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-PQFN (12x12) |
|
L9822NIC PWR DRIVER 1:8 PWRSO20 |
0 |
|
Datasheet | 20-SOIC (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | Relay, Solenoid Driver | 8 | 1:8 | Low Side | - | SPI | 4.5V ~ 5.5V | - | 500mA | 550mOhm | - | Status Flag | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSO-20 |
|
MC17XS6400DEKR2HIGH-SIDE SWITCH, 12V, QUAD 17MO |
0 |
|
Datasheet | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Active | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 11A | 15mOhm | Non-Inverting | PWM Input, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 32-HSOP |
|

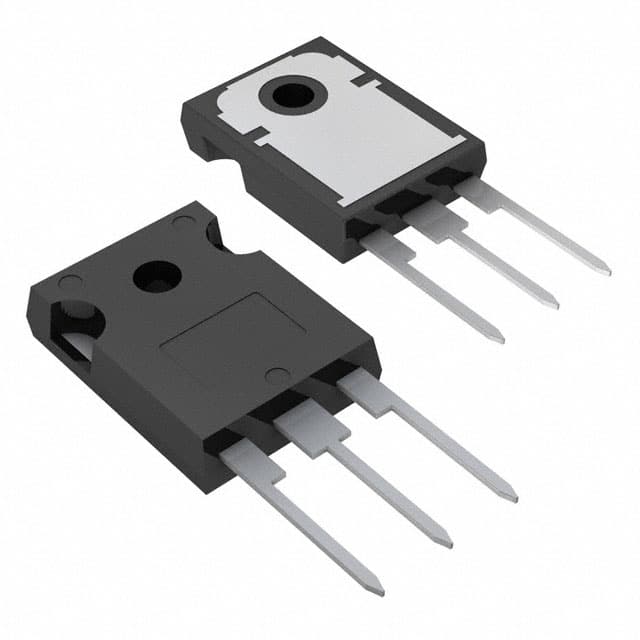

VNW50N04IC PWR DRIVER N-CHAN 1:1 TO247-3 |
0 |
|
Datasheet | TO-247-3 | OMNIFET™, VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 35A | 12mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-247-3 |
|
|
VNW100N04IC PWR DRIVER N-CHAN 1:1 TO247-3 |
0 |
|
Datasheet | TO-247-3 | OMNIFET™, VIPower™ | Bulk | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 35A | 12mOhm (Max) | Non-Inverting | - | Current Limiting (Fixed), Over Temperature, Over Voltage | - | - | - | Through Hole | TO-247-3 |
|
TDE1898CFPIC PWR DRIVER N-CHANNEL 1:1 20SO |
0 |
|
Datasheet | 20-SOIC (0.295", 7.50mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 18V ~ 35V | Not Required | 500mA | - | Differential | - | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -25°C ~ 85°C (TA) | - | - | Surface Mount | 20-SO |
|
MIC2045-2YTSIC PWR SWITCH N-CHAN 1:1 16TSSOP |
0 |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | - | Tube | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.8V ~ 5.5V | 1.6V ~ 5.5V | 6A | 20mOhm | Non-Inverting | Power Good, Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Open Load Detect, Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
AMIS39101PNPB4GIC PWR DRIVER 1:8 28SOIC |
0 |
|
Datasheet | 28-SOIC (0.295", 7.50mm Width) | - | Tube | Obsolete | General Purpose | 8 | 1:8 | High Side | - | SPI | 3.5V ~ 28V | 3.1V ~ 5.5V | 350mA | 1Ohm | - | - | Over Temperature | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
VB027SP-EIC PWR DRVR BIPOLAR 1:1 PWRSO10 |
0 |
|
Datasheet | PowerSO-10 Exposed Bottom Pad | VIPower™ | Tube | Obsolete | General Purpose | 1 | 1:1 | Low Side | Bipolar | Parallel | 4.5V ~ 5.5V | Not Required | 8A | - | Non-Inverting | Status Flag | Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-PowerSO |
|
|
MC50XS4200DEKHIGH-SIDE SWITCH, 24V, DUAL 50MO |
0 |
|
Datasheet | 32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 1.65A | 41mOhm | Non-Inverting | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Adjustable), Over Temperature, Over Voltage, Short Circuit, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
