OR Controllers, Ideal Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | FET Type | Ratio - Input:Output | Internal Switch(s) | Delay Time - ON | Delay Time - OFF | Current - Output (Max) | Current - Supply | Voltage - Supply | Applications | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM74801QDRRRQ13-V TO 65-V, AUTOMOTIVE IDEAL DI |
10,940 |
|
Datasheet | - | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 2.6 µs | 500 ns | 5A | 413 µA | 3V ~ 65V | Redundant Power Supplies | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 12-WSON (3x3) |
|
LM74910QRGERQ1AUTOMOTIVE IDEAL DIODE WITH CIRC |
9,602 |
|
- |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | Yes | - | - | 2.6A | 635 µA | 3V ~ 65V | N+1 Power Supplies, High Availability | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-VQFN (4x4) |
|

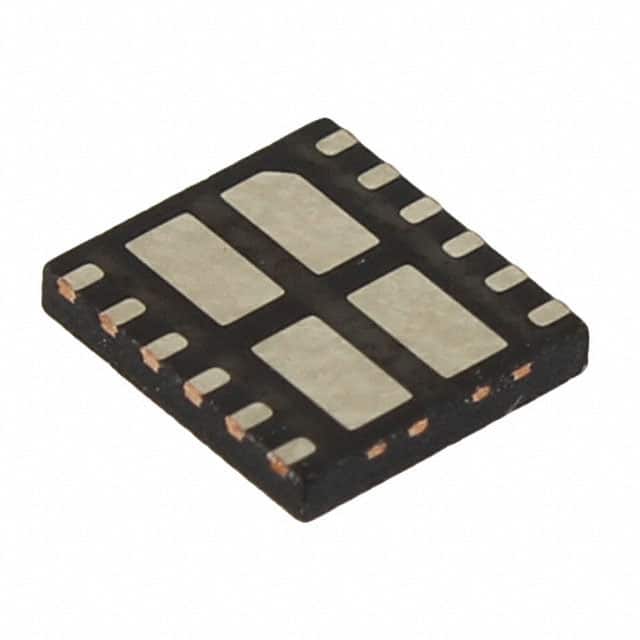

FDMQ8205AGREENBRIDGETM 2 SERIES OF HIGH-E |
4,270 |
|
Datasheet | GreenBridge™ | 12-WDFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N and P-Channel | Bridge (2) | Yes | - | - | - | 400 µA | 57V (Max) | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 12-MLP (5x4.5) |
|
PD70224ILQ-TRIC BRIDGE RECT FET BASED 40MLPQ |
10,474 |
|
Datasheet | - | 40-TFQFN Exposed Pad, 32 Leads | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | Bridge (2) | Yes | - | - | 1.5A | 900 µA | 57V (Max) | Power Over Ethernet (PoE) | -40°C ~ 125°C | - | - | Surface Mount | 40-QFN (6x8) |
|
|
LM74930QRGERQ1LM74930QRGERQ1 |
358 |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | - | - | 2.6A | 665 µA | 4V ~ 65V | Redundant Power Supplies | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 24-VQFN (4x4) |
|
LM74700MDDFREPENHANCED LOW IQ IDEAL DIODE CONT |
2,333 |
|
Datasheet | - | SOT-23-8 Thin, TSOT-23-8 | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | 1:1 | No | 1.4 µs | 450 ns | - | 80 µA | 3.2V ~ 65V | General Purpose | -50°C ~ 125°C (TJ) | - | - | Surface Mount | TSOT-23-8 |
|
LT4321IUF#PBFIC OR CTRLR BRIDGE RECT 16QFN |
6,744 |
|
Datasheet | - | 16-WQFN Exposed Pad | Tube | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
|
LT4321IUF#TRPBFIC OR CTRLR BRIDGE RECT 16QFN |
2,580 |
|
Datasheet | - | 16-WQFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (4x4) |
|
LTC4412ES6#TRMPBFIC OR CTRLR SRC SELECT TSOT23-6 |
4,790 |
|
Datasheet | PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412ES6#TRPBFIC OR CTRLR SRC SELECT TSOT23-6 |
1,287 |
|
Datasheet | PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412IS6#TRPBFIC OR CTRLR SRC SELECT TSOT23-6 |
1,205 |
|
Datasheet | PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LTC4412IS6#TRMPBFIC OR CTRLR SRC SELECT TSOT23-6 |
335 |
|
Datasheet | PowerPath™ | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 2:1 | No | 110 µs | 13 µs | - | 15 µA | 2.5V ~ 28V | Handheld, USB Powered Supplies | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-6 |
|
|
LT4321HUF#TRPBFIC OR CTRLR BRIDGE RECT 16QFN |
3,249 |
|
Datasheet | - | 16-WQFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 125°C | - | - | Surface Mount | 16-QFN (4x4) |
|
|
LT4321HUF#PBFIC OR CTRLR BRIDGE RECT 16QFN |
1,918 |
|
Datasheet | - | 16-WQFN Exposed Pad | Tube | Active | Bridge Rectifier | N-Channel | Bridge (2) | No | - | - | - | 32 µA | 20V ~ 80V | Power Over Ethernet (PoE) | -40°C ~ 125°C | - | - | Surface Mount | 16-QFN (4x4) |
|
LTC4357CDCB#TRMPBFIC OR CTRLR N+1 6DFN |
5,003 |
|
Datasheet | - | 6-WFDFN Exposed Pad | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C | Automotive | - | Surface Mount | 6-DFN (2x3) |
|
LTC4357CMS8#TRPBFIC OR CTRLR N+1 8MSOP |
4,225 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C | Automotive | - | Surface Mount | 8-MSOP |
|
|
LTC4357CMS8#PBFIC OR CTRLR N+1 8MSOP |
3,803 |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tube | Active | N+1 ORing Controller | N-Channel | N:1 | No | - | 300 ns | - | 500 µA | 9V ~ 80V | Redundant Power Supplies, Telecom Infrastructure | 0°C ~ 70°C | Automotive | - | Surface Mount | 8-MSOP |
|
|
FDMQ8205IC OR CTRLR BRIDGE RECT 12MLP |
4,025 |
|
Datasheet | GreenBridge™ | 12-WDFN Exposed Pad | Tape & Reel (TR) | Active | Bridge Rectifier | N and P-Channel | Bridge (2) | Yes | - | - | - | 400 µA | 57V (Max) | Power Over Ethernet (PoE) | -40°C ~ 85°C | - | - | Surface Mount | 12-MLP (5x4.5) |
|
LTC4416EMS-1#PBFIC OR CTRLR SRC SELECT 10MSOP |
10,375 |
|
Datasheet | PowerPath™ | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tube | Active | Source Selector Switch | P-Channel | 2:2 | No | 60 µs | 30 µs | - | 130 µA | 3.6V ~ 36V | Battery Backup, Industrial/Automotive, High Current Switch | -40°C ~ 85°C | - | - | Surface Mount | 10-MSOP |
|
LTC4411ES5#TRMPBFIC OR CTRLR SRC SELECT TSOT23-5 |
5,171 |
|
Datasheet | - | SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR) | Active | Source Selector Switch | P-Channel | 1:1 | Yes | - | - | 2.6A | 40 µA | 2.6V ~ 5.5V | Handheld/Mobile Devices | -40°C ~ 85°C | - | - | Surface Mount | TSOT-23-5 |
