Motor Drivers, Controllers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Motor Type - Stepper | Motor Type - AC, DC | Function | Output Configuration | Interface | Technology | Step Resolution | Applications | Current - Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L9958XPIC MOTOR DRVR BIPOLAR 24POWERSSO |
0 |
|
Datasheet | - | 24-PowerBSOP (0.295", 7.50mm Width) | Tube | Active | Bipolar | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | SPI | CMOS | - | General Purpose | 8.6A | 4.5V ~ 5.5V | 4V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PowerSSO-24 |
|
LA6242H-TRM-EIC MOTOR DRIVER 5V-13V 28HSOP |
0 |
|
Datasheet | - | 28-SOP (0.311", 7.90mm Width) Exposed Pad + 2 Heat Tabs | Tape & Reel (TR) | Obsolete | - | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | On/Off | Bipolar | - | Media Player | 1A | 5V ~ 13V | 5V ~ 13V | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-HSOP-HC |
|
LB1975-EIC MOTOR DRIVER 4.5V-6.7V 28HDIP |
0 |
|
- |
- | 28-SDIP (0.500", 12.70mm) Exposed Pad | Tube | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | Parallel | Bipolar | - | Appliance | 2.5A | 4.5V ~ 6.7V | 20V ~ 42V | -20°C ~ 100°C (TA) | - | - | Through Hole | 28-HDIP |
|
LV8414CS-TE-L-HIC MTR DRV BIPLR 2.5-5.5V 32WLPJ |
0 |
|
- |
- | 32-UFBGA, WLBGA | Tape & Reel (TR) | Obsolete | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (8) | I2C | Bi-CMOS | 1, 1/2, 1/256 | Camera | 400mA | 2.5V ~ 5.5V | 2.5V ~ 5.5V | -30°C ~ 85°C (TA) | - | - | Surface Mount | 32-WLPJ (2.47x2.47) |
|
LV8805SV-TLM-HIC MOTOR DRIVER 6V-15V 20SSOP |
0 |
|
Datasheet | - | 20-LFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | PWM | Bi-CMOS | - | Fan Motor Driver | 1.2A | 6V ~ 15V | 6V ~ 15V | -40°C ~ 95°C (TA) | - | - | Surface Mount | 20-SSOPJ |
|
BTM7742GXUMA1IC MOTOR DRIVER 5.5V-28V 36DSO |
0 |
|
Datasheet | TrilithIC™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Power MOSFET | - | General Purpose | 12A | 5.5V ~ 28V | 5.5V ~ 28V | -40°C ~ 150°C (TJ) | - | - | Surface Mount | - |
|
|
BTM7755GXUMA1IC MOTOR DRIVER 8V-18V 36DSO |
0 |
|
Datasheet | TrilithIC™ | 36-BSSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Power MOSFET | - | General Purpose | 12A | 8V ~ 18V | 8V ~ 18V | -40°C ~ 150°C (TJ) | - | - | Surface Mount | - |
|
AMIS30523C5231GIC MTRDRV BIPLR 4.75-5.25V 52QFN |
0 |
|
- |
- | 52-VFQFN Exposed Pad | Tube | Obsolete | Bipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | SPI | Power MOSFET | 1 ~ 1/32 | General Purpose | 1.2A | 4.75V ~ 5.25V | 6V ~ 30V | -40°C ~ 172°C (TJ) | - | - | Surface Mount | 52-QFN (8x8) |
|
FAN8035LIC MOTOR CONTROL 48QFP |
0 |
|
Datasheet | - | 48-BQFP + 4 Tabs | Tray | Obsolete | - | Servo DC | Driver - Fully Integrated, Control and Power Stage | - | - | Power MOSFET | - | General Purpose | 1A | 4.5V ~ 13.2V | - | -35°C ~ 85°C | - | - | Surface Mount | 48-QFPH-1414 |
|
|
MPC17531ATEVIC MTR DRV BIPLR 2.7-3.6V 20VMFP |
0 |
|
- |
- | 20-SSOP (0.209", 5.30mm Width) | Box | Obsolete | Bipolar | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Parallel | Power MOSFET | - | Battery Powered | 700mA | 2.7V ~ 3.6V | 2V ~ 8.6V | -20°C ~ 150°C (TJ) | - | - | Surface Mount | 20-VMFP |
|
|
MPC17531ATEVELIC MTR DRV BIPLR 2.7-3.6V 20VMFP |
0 |
|
- |
- | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Bipolar | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Parallel | Power MOSFET | - | Battery Powered | 700mA | 2.7V ~ 3.6V | 2V ~ 8.6V | -20°C ~ 150°C (TJ) | - | - | Surface Mount | 20-VMFP |
|
AMIS30421C4211GIC MTR DRVR BIPOLAR 3-3.6V 44QFN |
0 |
|
Datasheet | - | 44-VFQFN Exposed Pad | Tube | Obsolete | Bipolar | - | Controller - Commutation, Direction Management | Pre-Driver - Half Bridge (4) | SPI | - | 1 ~ 1/64 | General Purpose | - | 3V ~ 3.6V | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 44-QFN (7x7) |
|
NCV7513BFTR2GIC MOTOR DRVR 4.75V-5.25V 32LQFP |
0 |
|
- |
FLEXMOS™ | 32-LQFP | Tape & Reel (TR) | Obsolete | - | Brushed DC | Controller - Commutation, Direction Management | Pre-Driver - Low Side (6) | SPI, Parallel | NMOS | - | - | - | 4.75V ~ 5.25V | - | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 32-LQFP |
|
|
NCV7517BFTR2GIC MOTOR DRVR 4.75V-5.25V 32LQFP |
0 |
|
- |
FLEXMOS™ | 32-LQFP | Tape & Reel (TR) | Obsolete | - | Brushed DC | Controller - Commutation, Direction Management | Pre-Driver - Low Side (6) | SPI, Parallel | NMOS | - | - | - | 4.75V ~ 5.25V | - | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 32-LQFP |
|
VNH5019A-EIC MTR DRV 5.5-24V MULTIPWRSO-30 |
0 |
|
Datasheet | ECOPACK®, VIPower™ | 30-PowerSOP (0.630", 16.00mm Width) | Tube | Discontinued at Digi-Key | - | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel, PWM | Power MOSFET | - | - | 30A | 5.5V ~ 24V | 5.5V ~ 24V | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | MultiPowerSO-30 |
|
MTD6501G-LC1IC MOTOR DRIVER 2V-14V 8SOP |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | - | Brushless DC (BLDC) | Driver - Fully Integrated, Control and Power Stage | Half Bridge (3) | PWM | DMOS | - | Fan Motor Driver | 800mA | 2V ~ 14V | 2V ~ 14V | -30°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOP-EP |
|
LB1948MC-AHIC MTR DRV BIPLR 2.5-16V 10MFPSK |
0 |
|
Datasheet | - | 10-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Bipolar | Brushed DC | Driver - Fully Integrated, Control and Power Stage | Half Bridge (4) | Parallel | Bipolar | - | General Purpose | 800mA | 2.5V ~ 16V | 2.5V ~ 16V | -20°C ~ 85°C (TA) | - | - | Surface Mount | 10-MFPSK |
|

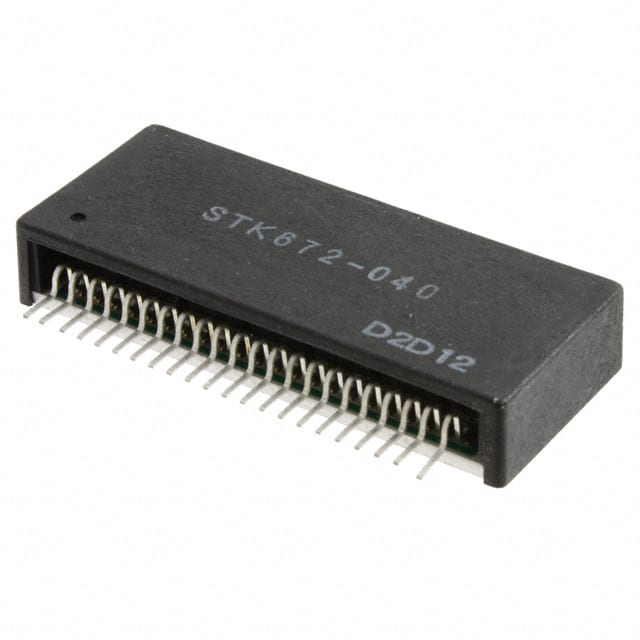

STK672-040-EIC MOTOR DRIVER UNIPOLAR 22SIP |
0 |
|
- |
- | 22-SIP | Bulk | Obsolete | Unipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Power MOSFET | 1, 1/2, 1/4, 1/8, 1/16 | General Purpose | 1.5A | 4.75V ~ 5.25V | 10V ~ 45V | 150°C (TJ) | - | - | Through Hole | 22-SIP |
|

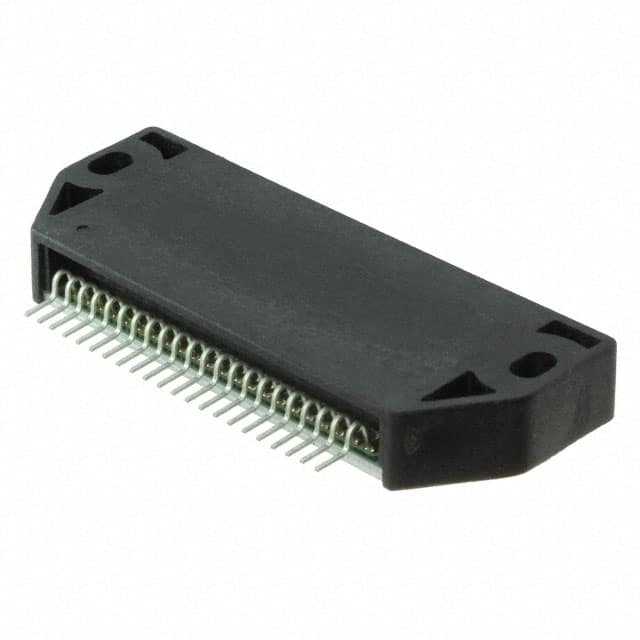

STK672-050-EIC MOTOR DRIVER UNIPOLAR 22SIP |
0 |
|
- |
- | 22-SIP | Bulk | Obsolete | Unipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Power MOSFET | 1, 1/2, 1/4, 1/8, 1/16 | General Purpose | 3A | 4.75V ~ 5.25V | 10V ~ 45V | 150°C (TJ) | - | - | Through Hole | 22-SIP |
|
STK672-540IC MOTOR DRIVER UNIPOLAR 12SIP |
0 |
|
Datasheet | - | 12-SIP Formed Leads | Bulk | Obsolete | Unipolar | - | Driver - Fully Integrated, Control and Power Stage | Half Bridge (2) | Parallel | Power MOSFET | 1, 1/2 | General Purpose | 3.3A | 4.75V ~ 5.25V | 10V ~ 42V | 0°C ~ 105°C (TC) | - | - | Surface Mount | 12-SIP |
