Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4429IJAIC GATE DRVR LOW-SIDE 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Inverting | - | 25ns, 25ns | -25°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC4428AMJAIC GATE DRVR LOW-SIDE 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting, Non-Inverting | - | 25ns, 25ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
TC4428AEJAIC GATE DRVR LOW-SIDE 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting, Non-Inverting | - | 25ns, 25ns | -40°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
TC4627MJAIC GATE DRVR HI/LOW SIDE 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side or Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 6V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 33ns, 27ns | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
TC4423MJAIC GATE DRVR LOW-SIDE 8CERDIP |
0 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A | Inverting | - | 23ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC4429MJAIC GATE DRVR LOW-SIDE 8CERDIP |
5 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Inverting | - | 25ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
62EM1-00001IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet | - | Module | Bulk | Obsolete | Verified | Half-Bridge | Single | 2 | N-Channel MOSFET | 14V ~ 16V | 4V, 1.25V, 10V, 3.5V | 20A, 20A | Non-Inverting | - | 80ns, 90ns | -40°C ~ 85°C (TA) | - | - | Chassis Mount | Module |
|

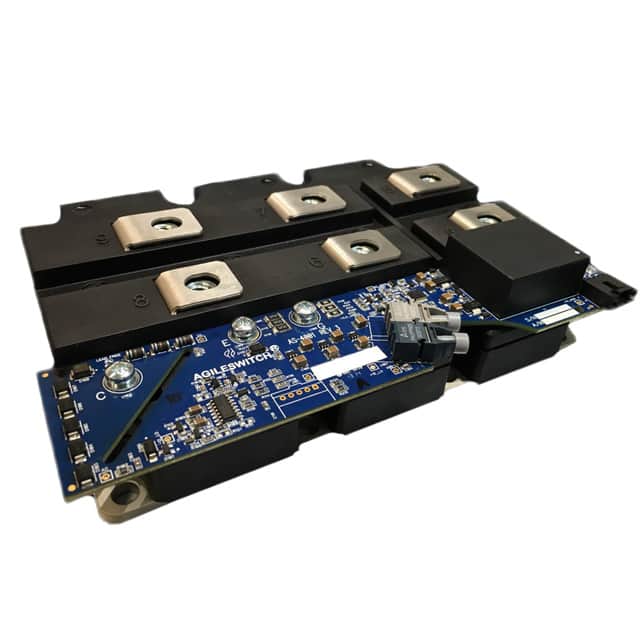

HPFM-00117IC GATE DRVR HALF-BRIDGE MODULE |
0 |
|
Datasheet | - | Module | Bulk | Active | Not Verified | Half-Bridge | Independent | 1 | IGBT | 14.5V ~ 16V | - | 30A, 30A | Non-Inverting | - | 600ns, 350ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|
LT1162CNIC GATE DRVR HALF-BRIDGE 24DIP |
0 |
|
Datasheet | - | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | 0°C ~ 125°C (TJ) | - | - | Through Hole | 24-PDIP |
|
|
LT1162INIC GATE DRVR HALF-BRIDGE 24DIP |
0 |
|
Datasheet | - | 24-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 4 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | -40°C ~ 125°C (TJ) | - | - | Through Hole | 24-PDIP |
|
ICL7667CPAIC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 15V | 0.8V, 2V | - | Inverting | - | 20ns, 20ns | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
IR2104SIC GATE DRVR HALF-BRIDGE 8SOIC |
0 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
LTC1154CN8IC GATE DRVR HIGH-SIDE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
LMD18400N/NOPBIC GATE DRVR HIGH-SIDE 20DIP |
0 |
|
Datasheet | - | 20-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 7V ~ 28V | 0.8V, 2V | 3A, 3A | Non-Inverting | - | - | -25°C ~ 150°C (TJ) | - | - | Through Hole | 20-PDIP |
|
98-0247IC GATE DRVR HALF-BRIDGE 16SOIC |
0 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 600 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IR2101IC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2104IC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA | Non-Inverting | 600 V | 100ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2106IC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
|
IR2108IC GATE DRVR HALF-BRIDGE 8DIP |
0 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 8-PDIP |
|
IR2110IC GATE DRVR HALF-BRIDGE 14DIP |
0 |
|
Datasheet | - | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 500 V | 25ns, 17ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
